CS310X Multi-channel
Price: On Request
Description

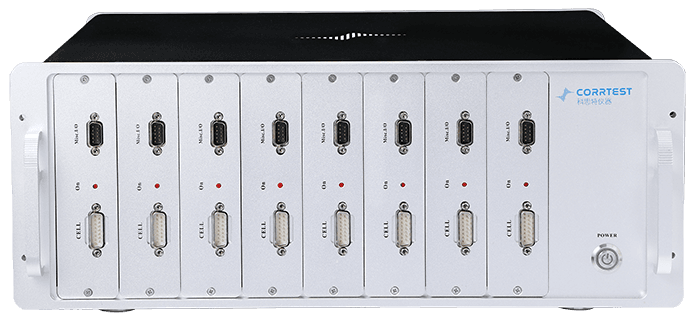

CS310X multi-channel Potentiostat/Galvanostat is a precise and cost-effective electrochemical instrument offering 4~8 channels. Each channel can work independently in a complete electrical isolation mode. All working electrodes are designed in switchable earthing/floating mode. CS310X can significantly boost experiment efficiency. It would be an ideal potentiostat for batch battery testing, corrosion, electrocatalysis, etc.
Customers can order the number of channels according to their budget. There are 4 basic options for CS310X:
- Option A: 4-channel with EIS in one channel
- Option B: 4-channel, with EIS in all four channels
- Option C: 8-channel, with EIS in one channel
- Option D: 8-channel, with EIS in all 8 channels
The lower option can be upgraded into a higher one after the purchase. CS310X can run the same experiment on all channels or different experiments on each channel simultaneously. It is beneficial for batch electrochemical tests
Thanks to the expandable slot design, Customers can open the chassis and install the potentiostat board to increase the number of channels.
CS310X provides the maximum applied potential of ±10V, the maximum current of ±1A and the maximum compliance voltage of ±21V for each channel of potentiostats. Floating module and electrical isolation design guarantee complete independence of each channel.
Specifications
General
Type
Potentiostat/Galvanostat
Dimensions - WxDxH / cm
53 x 48.3 x 19
Weight
12.5 kg
PC Interface
USB, Ethernet
General Potentiostat
Form Factor
Benchtop / Lab
Channels
≥ 4, ≥ 2, ≥ 1
Cell connection
4 electrode, 3 electrode
ADC resolution
16bit@1MHz, 20bit@1kHz
Input impedance
> 10 TΩ // 8 pF
Digital-to-Analog Converters
16bit, setup time: 1μs
Potentiostatic
Max. Potential range (±) / V
10
Voltage resolution (output)
1 μV
Min. Voltage resolution (output) / μV
1
Accuracy voltage (output)
0.1 %
Compliance voltage / ±V
21
Min/Max Scan Rate
0.001mV/s to 10000V/s
Smallest Potential Step for Sweep Voltammetry
0.02 mV
Smallest Pulse Width
0.0001s
Potential Range Required (±) / V
±1 V or higher, ±4 V or higher, ±10 V or higher
Required Compliance Voltage
≥ 15 V, ≥ 10 V, ≥ 5 V, ≥ 2 V
Galvanostatic
Max. current (output) / A
±1 A
Current range
10 ranges, ±2 nA to ±2 A
Number of current ranges
10
Current Accuracy (output)
0.1 %
Current Sensitivity
1 pA
Max. Current
≥ 1 A, ≥ 250 mA, ≥ 100 mA, ≥ 1 mA
Impedance
EIS Capability
Yes
EIS frequency range
10 µHz to 1 MHz
Max. EIS frequency range / MHz
1
Min. EIS frequency range / µHz
10
Max. EIS Frequency range
≥ 1 MHz, ≥ 1 kHz
Min. EIS Frequency range
≤ 100 Hz, ≤ 10 Hz, 10 mHz
