Swagelok Cell (T shape) - 3 electrodes PFA Ø 12.7 mm
OrigaLys

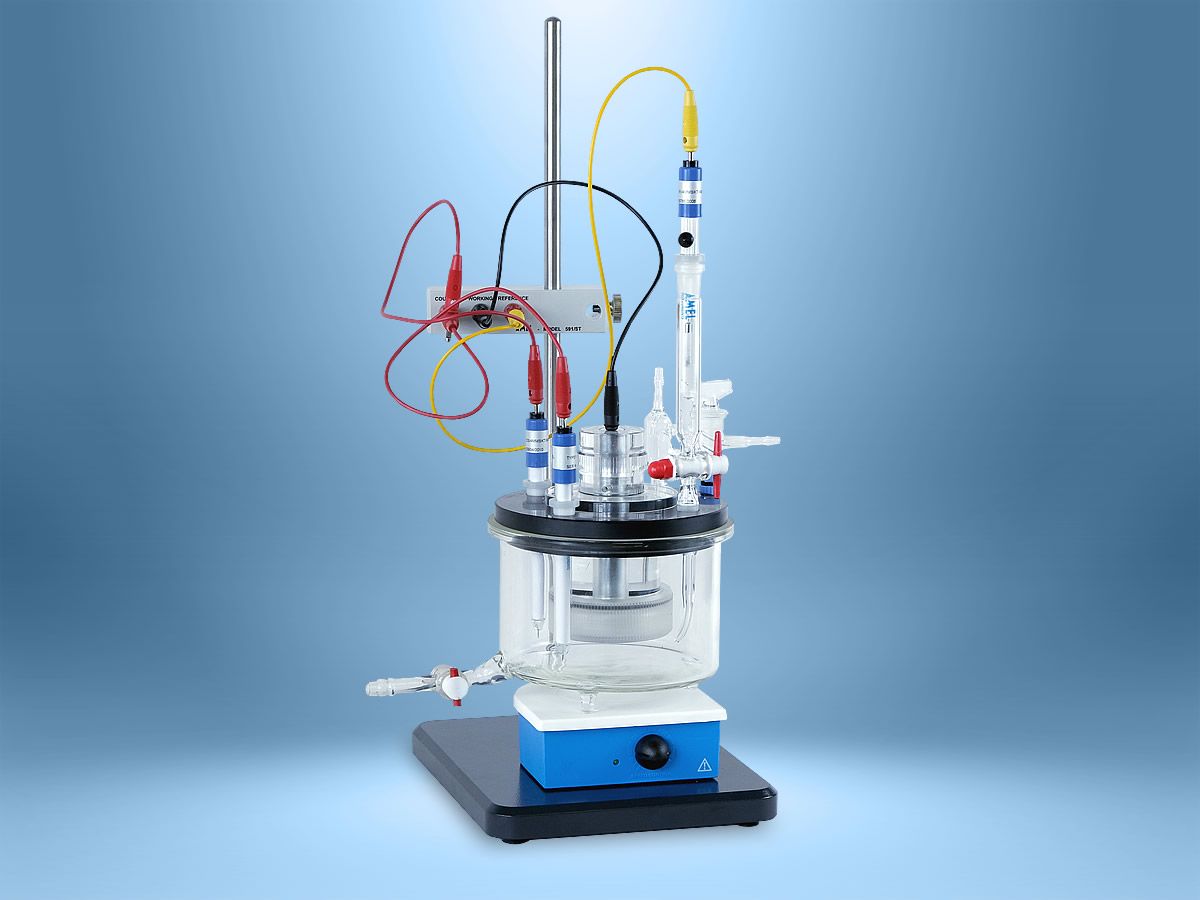

Model 599 is the thermostated version of Model 597, with a similar construction principle which allows for quick and easy change of the working area diameter by screw-on caps of different diameter. 500mL capacity. Each cell comes in a set including general operation parts: Pyrex cell (599/MB), PMMA main body (599/SH), polypropilene top cover (599/MR), gas bubbler (494/GB), two Luggin capillary (2x 599/LU), sample mask and sealing gasket (599/SH-X & 599/SHOR-X), magnetic stirrer (203/LF) and complete support stand (591/BASE & 91/COBO).
Applications
General Electrochemistry
Cell Type
General Electrochemistry
Total Volume
500 ml
Number of Ports
5
Jacketed (Temp Control)
Included
Maximum Sample Diameter Cell
62 mm
Exposed Area Electrode
2 cm2, 4 cm2, 20 cm2
