Selected Product
Thumbnail 1Thumbnail 2Thumbnail 3Thumbnail 4Thumbnail 5
Get Quote/Info

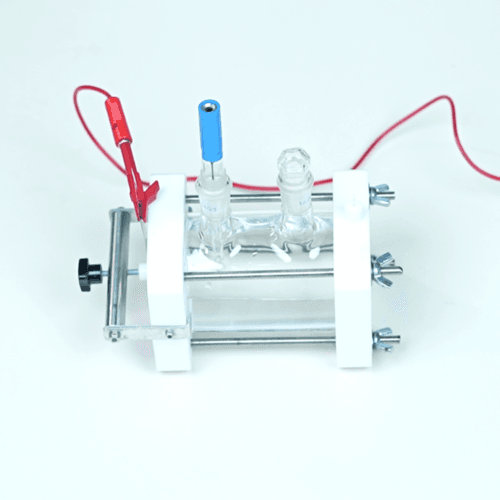

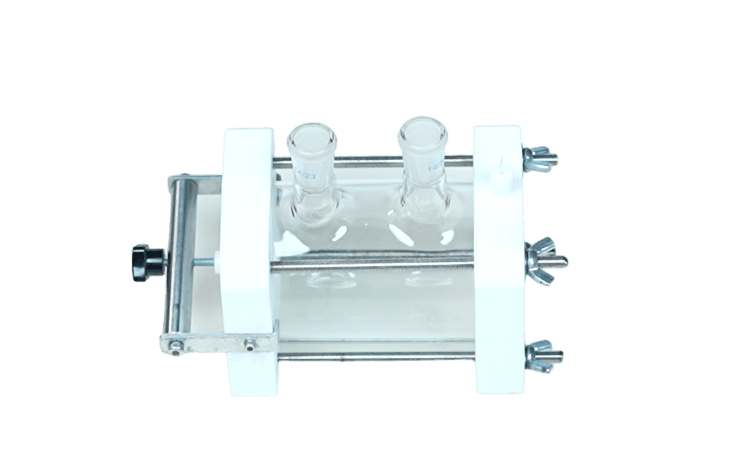

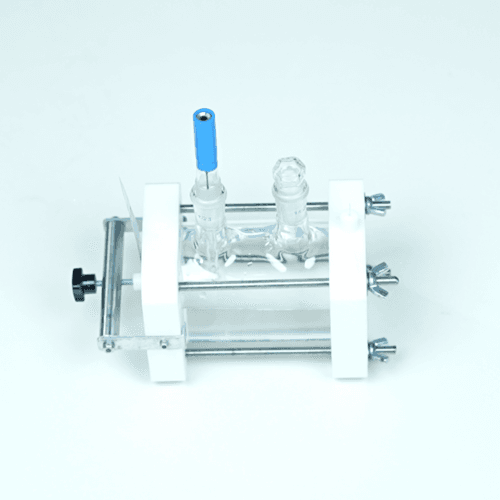

Flat Corrosion Cell (250ml)

See all products by MTX Labs
Price: 556.00 USD

Description

The Flat corrosion cell is suitable for corrosion measurements of a wide variety of flat samples in a liquid environment. It contains high-quality Polytetrafluoroethylene (PTFE), borosilicate, and stainless-steel materials that can withstand at elevated temperature (up to 100ºC).

Specifications

General

Applications

Corrosion

General Cells

Cell type

Corrosion Cell

Cell Body Material

Borosilicate Glass

Cap Material

PTFE (Teflon)

Total volume

250 mL

Number of ports

4

Port Interface

Working electrode port: 1cm2 bore onto the PTFE frame, which exposes the working electrode/sample to the electrolyte solution., Reference electrode port: SGJ B14, compatible with all MTX reference electrodes.​, Counter electrode port A small bore onto the PTFE frame containing Pt-mesh counter electrode of mesh size 10mmx10mm., Spare port: SGJ B14

Jacketed (Temp Control)

No

Corrosion

Defined Exposure Area

1 cm²

Working Electrode Dimensions (Corrosion)

Minimum 15mm X 15mm
