ElectroReact Electrochemistry Complete Kit
Asynt

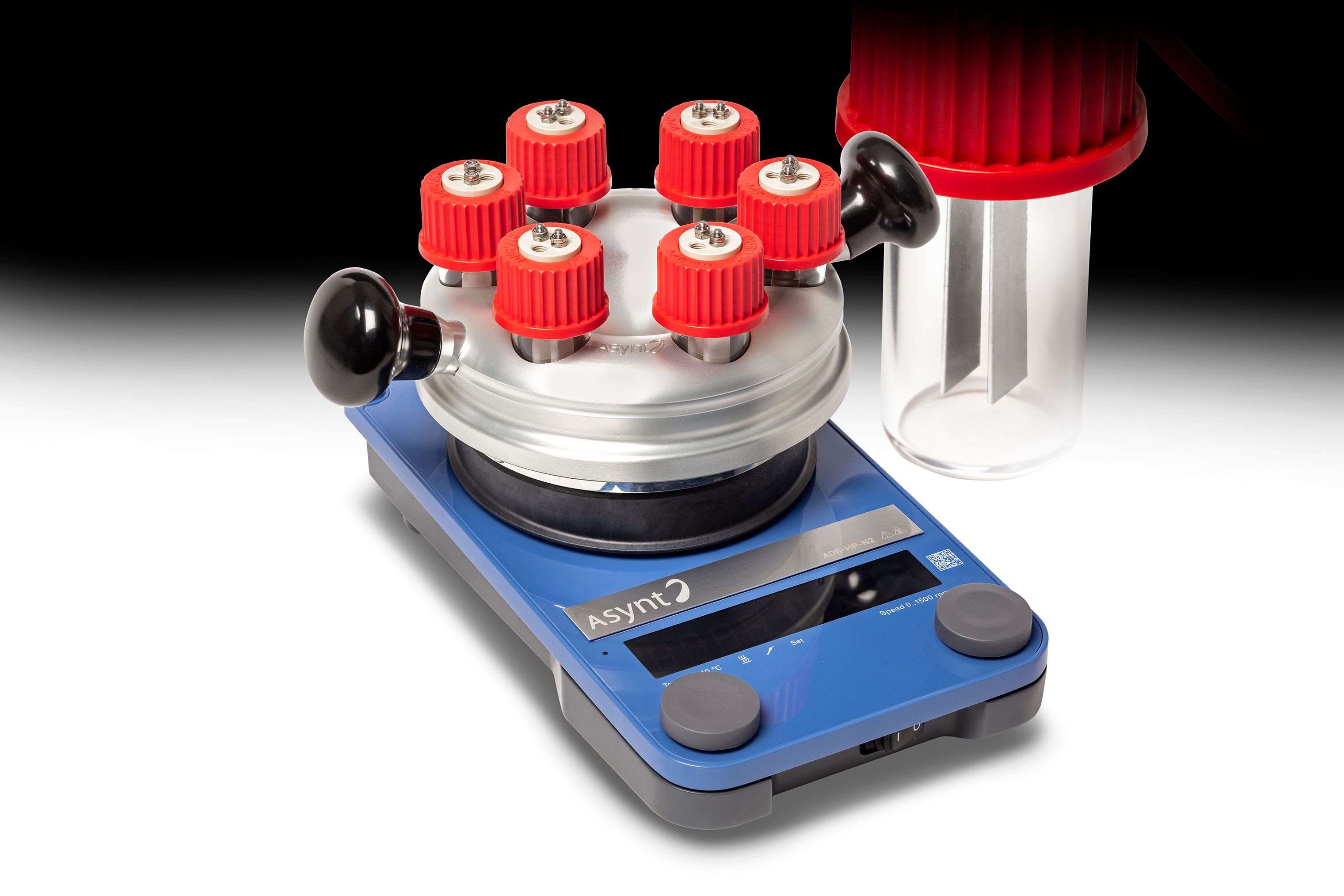

The ElectroReact platform is an easy-to-use, flexible and robust batch electrochemical platform, offering up to 6 different reaction vessels on a single support plate. The support plate sits directly on a standard stirrer hotplate, enabling effective and reproducible heating and stirring using standard laboratory equipment. Two ports on each reactor allow for flexible configuration - for example running on a Schlenk line for gas sensitive reactions, sampling or additions during the reactions, or sampling and adding to reactions during operation. Analytical techniques such as cyclic voltammetry can be carried out with a potentiostat.
Applications
Electrosynthesis
Max fluid volume
5 mL
Volume below electrodes (stirrer)
1 mL
Diameter (external with cap)
40 mm
Height (with cap)
80 mm
Internal reactor diameter
16.4 mm
Entry ports
electroreact-entry-ports2 x 1/4-28 flat bottomed ports per module to take standard flangeless fittings
Material: reactor body (wetted)
Glass
Material: Electrode carrier (not wetted)
PEEK
Sent directly to Asynt
Sent directly to Asynt
Material: Internal electrode connection (not wetted)
Stainless steel
