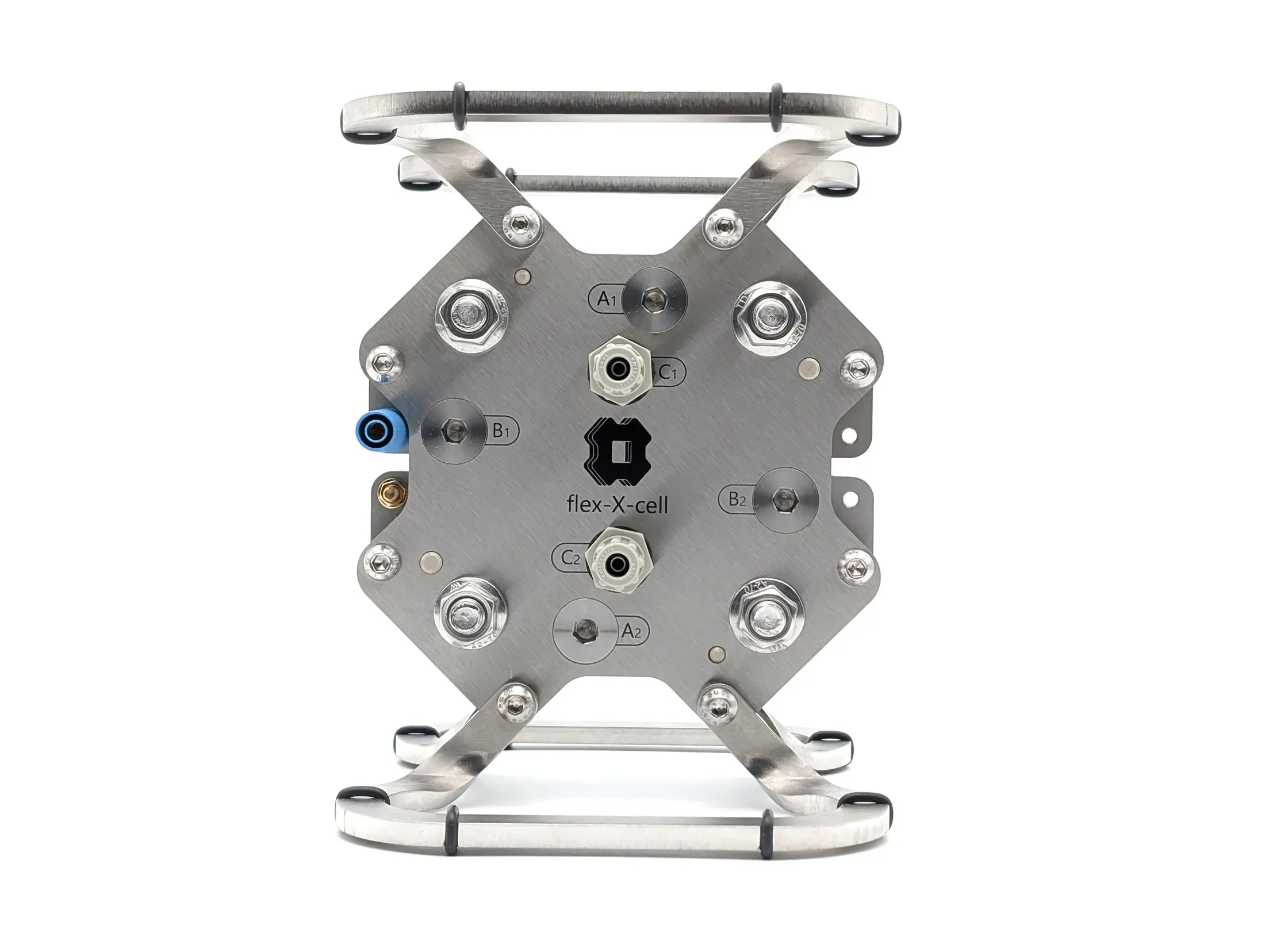

Name: flex-X-cell M for electrosynthesis
Brand: FXC Engineering
Price: 3200 EUR

A modular electrochemical flow cell for electrosynthesis research, reaction and electrode screening, selectivity studies and process optimization. Configurable anode and cathode assemblies and flow-frame options allow researchers to adapt the reactor to the chemistry and electrode materials under investigation.

Membranes and electrodes are supplied separately unless explicitly included in the selected configuration or added to the quotation. Optional configurations and the final scope of supply are confirmed with the quotation.

Specifications

General

Applications

Electrosynthesis

Optional accessories

Reference electrode integration (on request), Integrated thermostat channel (on request)

Customizable Parameters

Geometry, Thickness, Fluid connector size, Fluid connector material, O-ring material, Materials, Coatings

Typical Lead Time

1–3 months (indicative / configuration-dependent)

General Cells

Active Area Cell

25 cm²

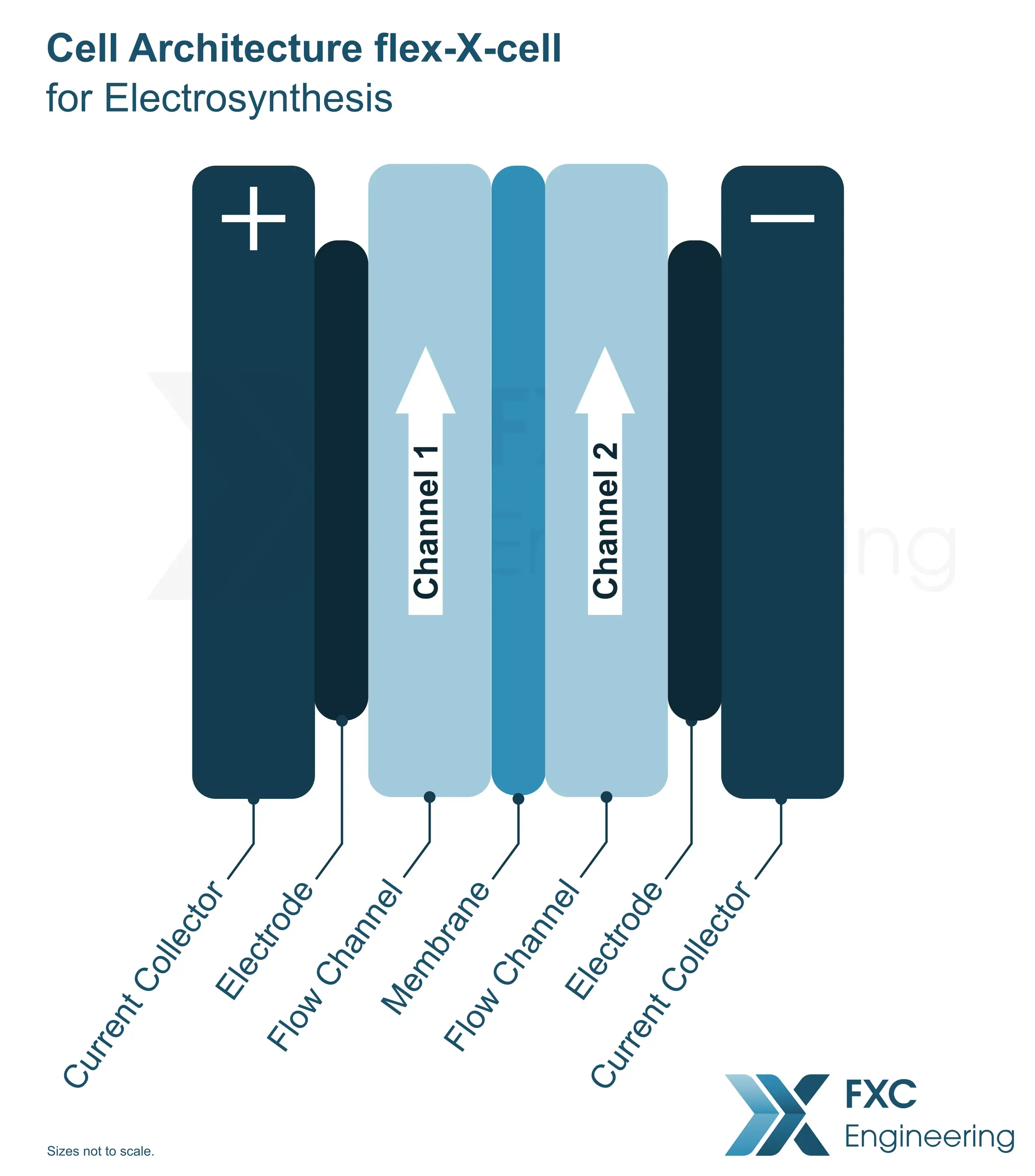

Chamber Configuration

2 channels

Anode Current Collector / Electrode

Graphite plate (standard), Ti sheet (on request), Ti sheet with Ir-MMO coating (on request), Ti sheet + welded Ir-MMO Ti mesh (on request), Ni sheet (on request)

Cathode Current Collector / Electrode

Stainless-steel sheet (standard), Graphite plate (on request), Ti sheet (on request), Ni sheet (on request), Ti sheet + welded Pt-coated Ti mesh (on request)

Max. Operation Pressure

Unpressurized operation / <0.5 bar (gauge)

Maximum Operating Temperature

80 °C

Cell External Dimensions

Approx. 145 × 170 × 190 mm (W × D × H)

Electrical contact

4 mm banana socket, or bolted cable lug directly to the current collector

Fittings and Tubing Connection

For 6 × 4 mm (OD × ID) tubing / other tubing sizes on request

Fluid Connector Material

PP (standard) / PFA or PTFE (on request)

Sealing O-ring material

EPDM (alternatives on request: FKM, FFKM or FEP-encapsulated)

End Plates Material

Stainless Steel

Anode Flow Frame Thickness

2.0 mm (standard), Custom configuration (on request)

Anode Flow Frame Material

PP/EPDM (standard), PTFE (on request)

Cathode Flow Frame Thickness

2.0 mm (standard), Custom configuration (on request)

Cathode Flow Frame Material

PP/EPDM (standard), PTFE (on request)

Membrane Frame Thickness

50 µm (standard), 100 µm (on request), Custom thickness (on request)

Membrane Frame Material

PTFE (where a membrane frame is selected)

Included Accessories

Fittings, O-rings, Positioning pins, Screws, Handles

Not Included

Membranes, Electrodes

Accessories

Wetted Materials

PP/EPDM, PTFE, selected current-collector/electrode (default: graphite anode and stainless-steel cathode), flow-frame, PP fluid connectors, and selected O-ring materials
