T-CAST
T-CAST
Price: On request
Description

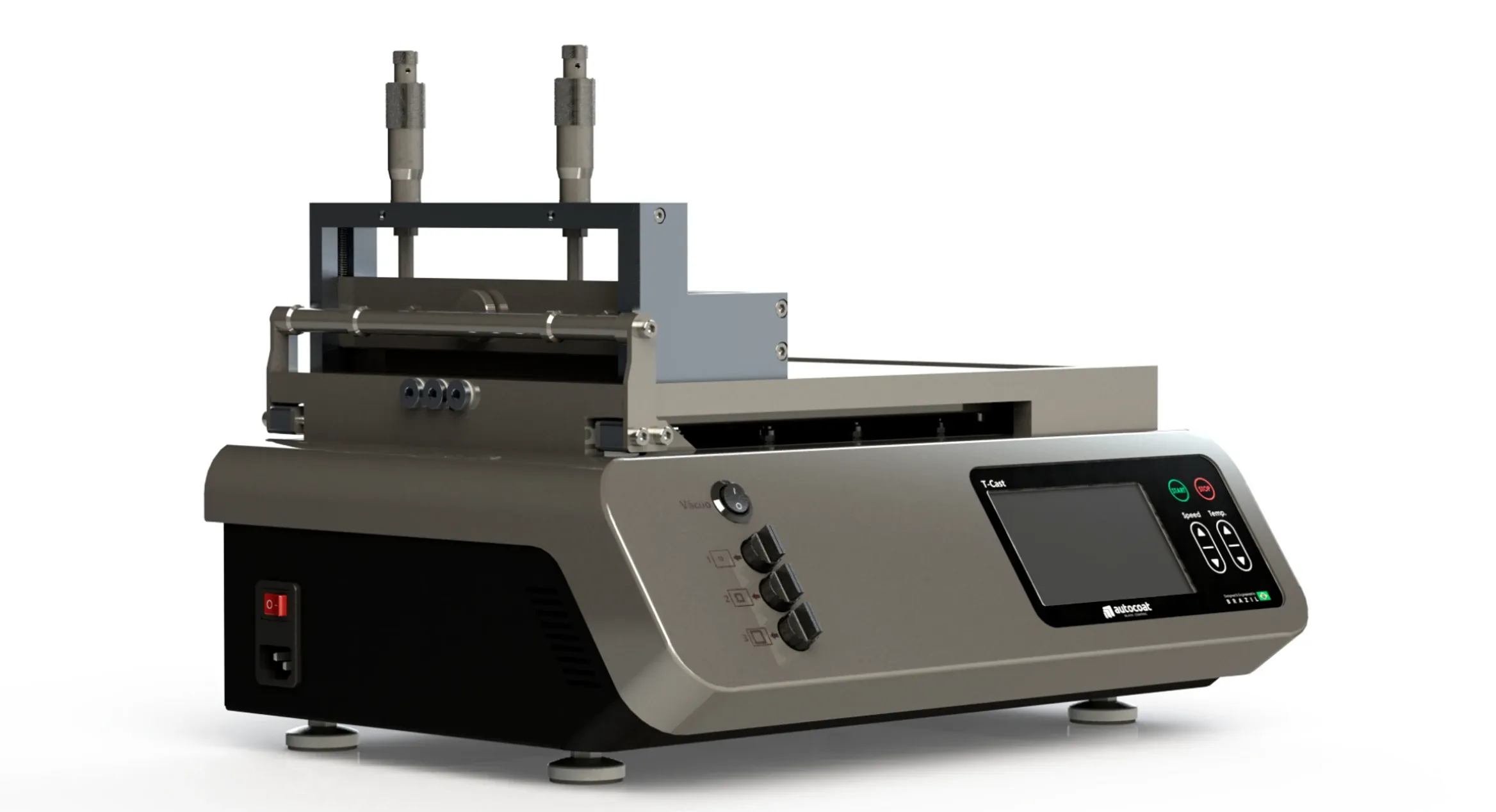

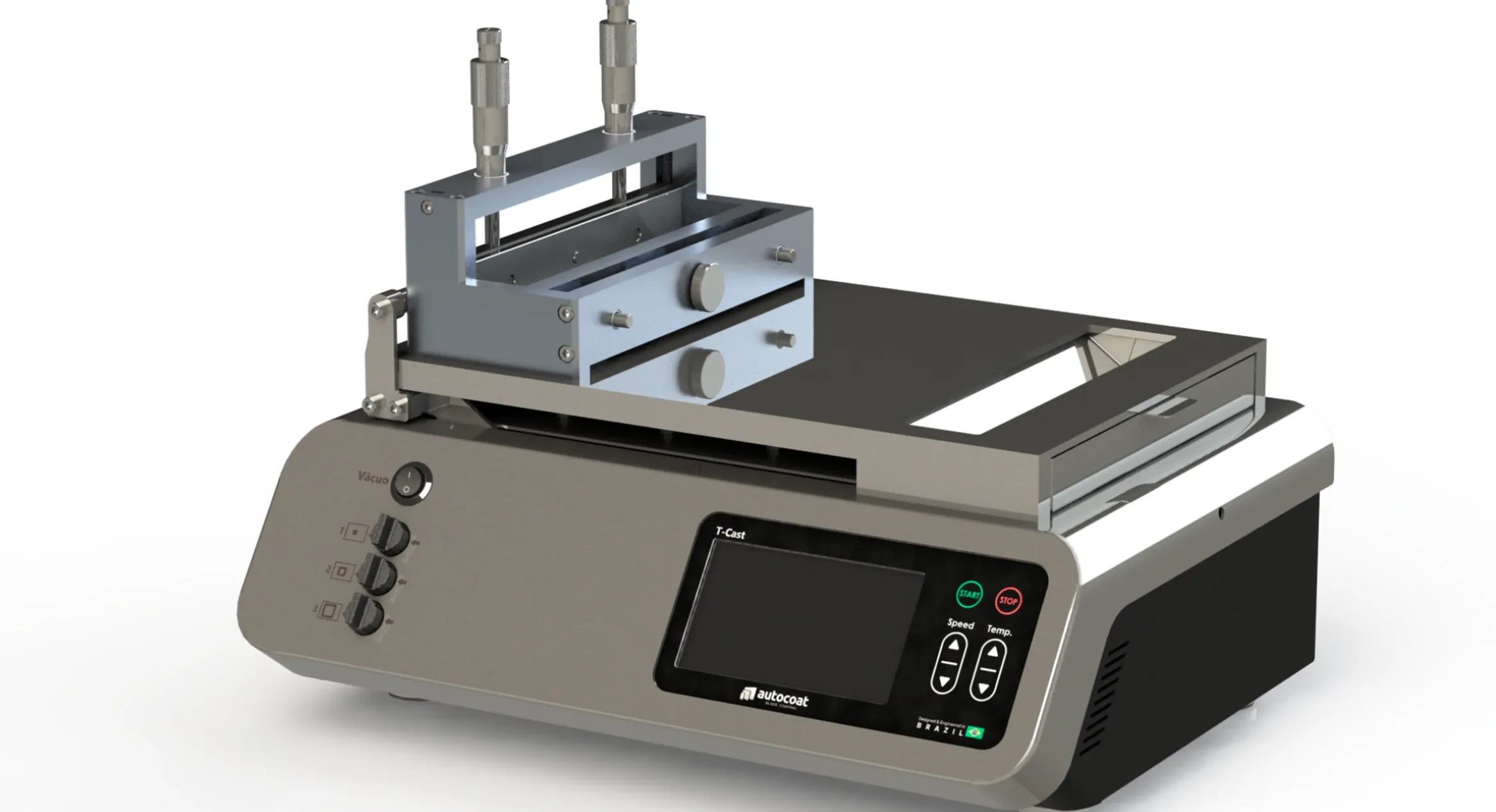

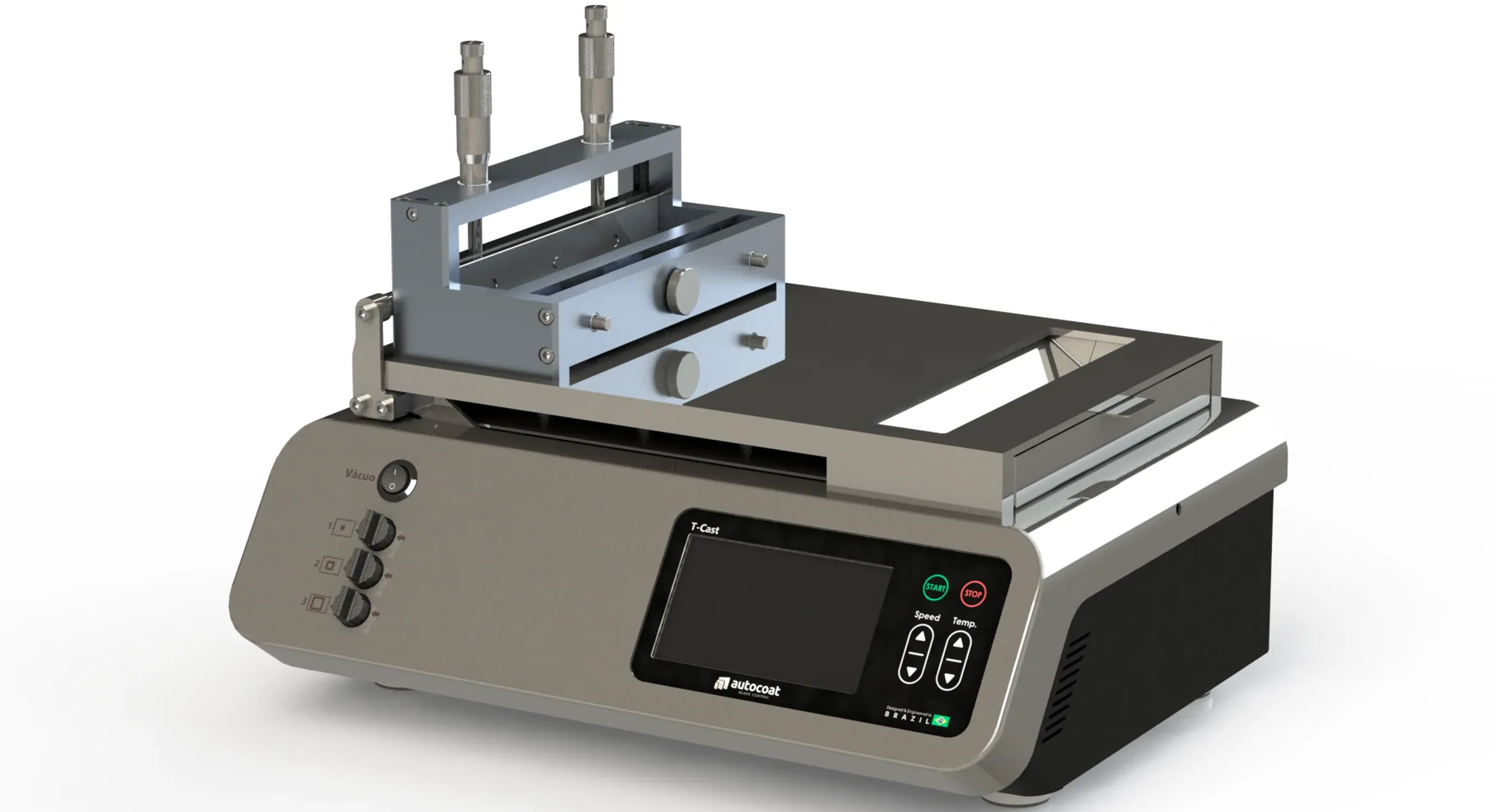

Laboratory-scale solution coating system for depositing uniform films over areas up to 200 x 200 mm. T-CAST is intended for applications that require large-area uniform films with high repeatability. The system includes embedded plug-and-play software, heated base, vacuum substrate fixation and compatibility with bar coating, knife coating and doctor blade geometries.
Specifications
Coating
Deposition area
Up to 20 x 20 cm
Deposition speed
1 to 40 mm/s
Compatible blade geometries
Bar coating, knife coating, doctor blade
Coating table material
Solvent-resistant stainless steel
General
Heated base temperature
Up to 150 C
Temperature setpoint resolution
1 C
Control interface
5-inch color LCD touchscreen
Embedded software
Embedded plug-and-play software
