Microcell HC Setup

Overview

A test cell fixture based on a modular concept which can be used to control the sample temperature. Benefit from this test cell fixture to reach improved reproducibility due to a high level of temperature accuracy and high level of automation.

• Quick change between different test cells
• Broad accessible temperature range
• Precise and fast heating and cooling based on Peltier-element technique
• No temperature overshooting
• Automated temperature control as part of electrochemical measuring routines

Typical applications

The Microcell HC Basic Package has been designed to operate with the test cells of the "TSC" product line and thus opens up a broad range of different applications, like:

• Determination of the temperature-dependent conductivity of liquid, gel-like, polymeric, and solid electrolytes
• Performing temperature-dependent cyclic voltammetry measurements
• Charging/discharging of batteries and supercaps at different temperatures

Detailed description

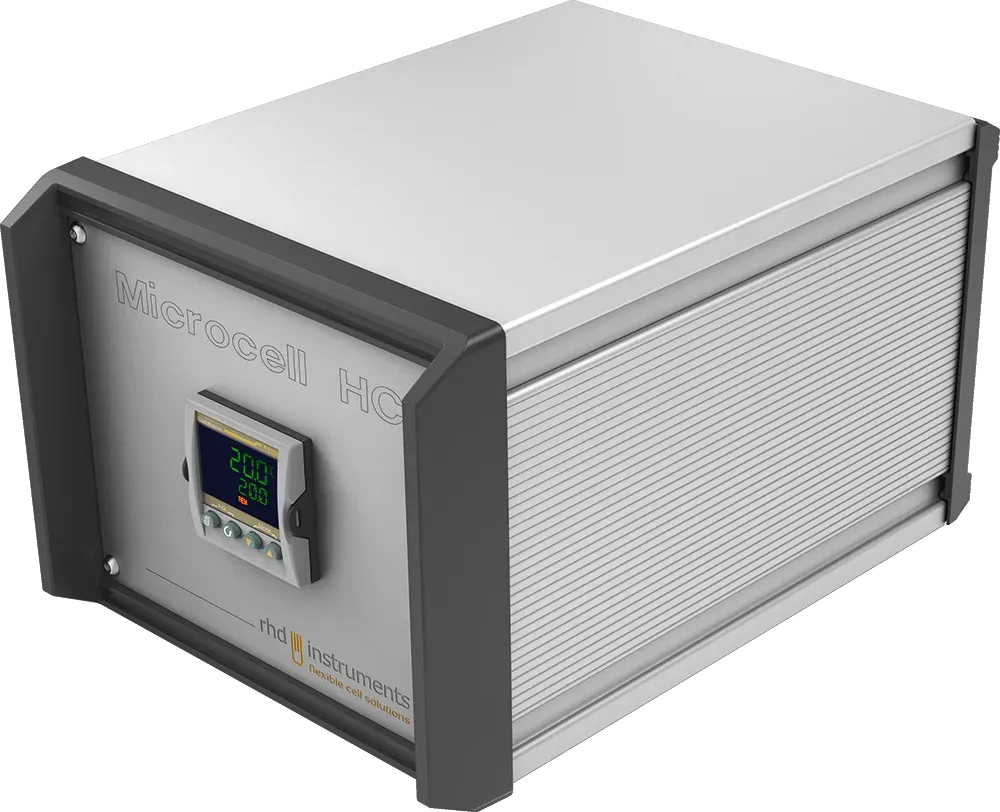

The Microcell HC Basic Package consists of a temperature controller unit and a cell fixture plus cables and other required or helpful accessories. The cell fixture is compatible with all test cells with prefix "TSC" and can be used to electrically contact the test cell's base unit and cap and to set and actively control the test cell's temperature.

The cell fixture contains a Peltier element that is used to heat or cool the test cell being placed on top of it. The communication with the temperature controller unit can be embedded in routine electrochemical procedures in case of most potentiostat brands and models, either using serial connectivity (RS232) or analogue in/out signals. By embedding the temperature adjustment and reading step into electrochemical procedures, a high level of automation can be achieved.

The test cell fixture can be used outside or inside of a glovebox. When being used inside of a glovebox, a cable-feedthrough is required (available on demand) and the temperature controller is placed outside.

Compatible TSC cells

• TSC 70 Closed
• TSC 1600 Closed
• TSC 1600 Closed GC
• TSC Battery
• TSC Surface
• TSC Spectro
