A must-have set of test boards used for training people who are new to EIS (electrochemical impedance spectroscopy) or for checking measuring devices
Enter: the nEIS Kit!
The nEIS Kit is more than a simple test box. It offers a wide variety of experiments that simulate common measurement tasks in electrochemical impedance spectroscopy like measuring very low or high impedances, three-electrode setups, or systems with high-frequency requirements. It contains interactive elements that allow you to not only understand the systems but also to learn much about analyzer settings – like amplitude or integration times, noise shielding, cable inductivity and capacitance and more.
Teaching EIS
Impedance spectroscopy is a complex technique and learning to use it effectively can be a challenge.
In the nEIS Kit, you find intuitive examples for common measurement together with reference sheets that give hints and examples. All components have specified values, allowing you to analyze your spectra to find out if the measured values match what’s on the board. Knowing the expected outcome allows you to fine-tune your EIS device settings because you can always objectively judge if a change improved the result.

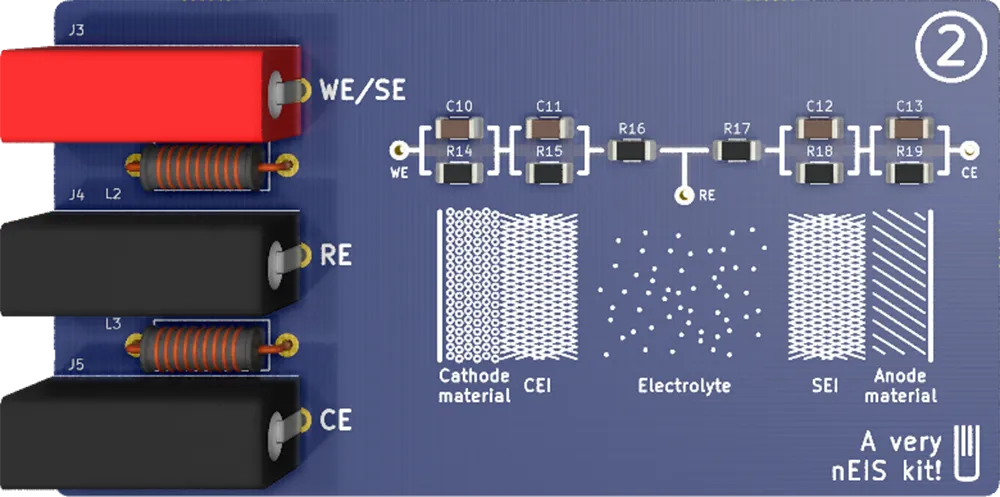

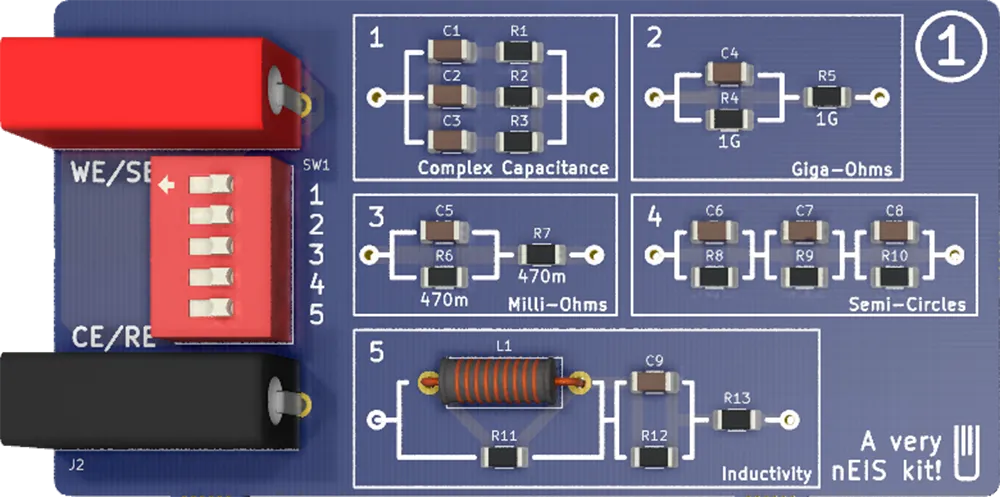

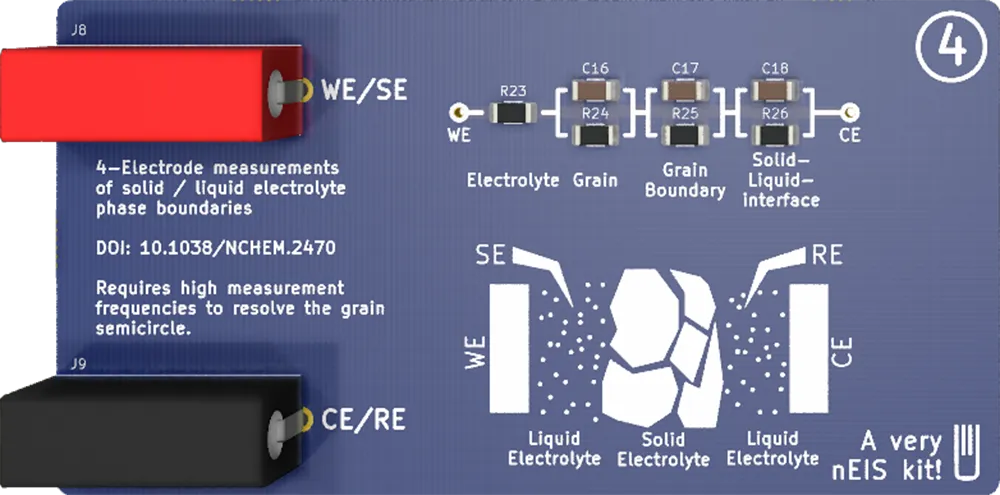

A board for every occasion
Price: On request
| Type | EIS Kit Training, Check devices |
| Operating temperature | 10 °C to 50 °C |
| Resistors dissipation | Resistors have 1/4 W max. power dissipation |
| Capacitors voltage rating | Capacitors have max. dc voltage rating of 25 V |
| Inductors rate | Inductors are rated for 370 mA dc, 5 MHz with series resistance of 1.7 Ohms |
| Max. Voltage (DC bias, +/- AC amplitude) |
-5 V to +5 V (Attention: exception is board 1, exp. 3: -100 mV to +100 mV |
| Maximum Frequency | 10 MHz |
| Compatibility of the device | Compatibility with almost all devices on the market |
