Pouch Cell Holder - Complete
Price: On Request
Description

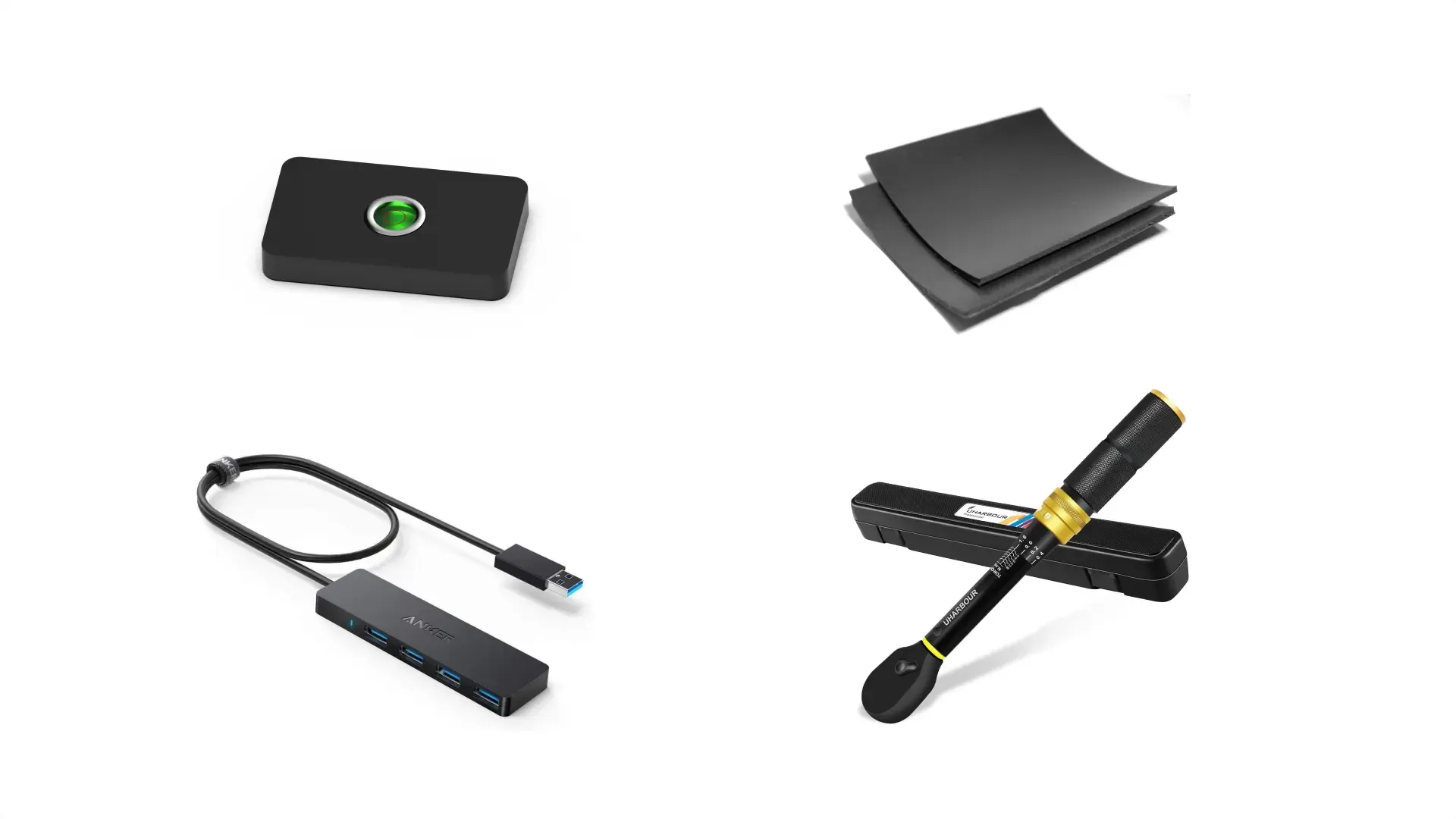

This is a complete testing bundle combining our pouch cell holder with force, thickness, and temperature sensor modules, plus practical accessories like a leveling tool, torque wrench, spare pads, and USB hub. Everything you need for multi-parameter battery characterization in one package.
The operating temperatures are:
- Pouch Cell Holder: Max. temperature: 70°C
- Force Sensor Module: -20 to +70 °C
- Thickness Sensor Module: 0 to +50 °C (no condensation)
- Temperature Sensor Module: -75°C to +260°C (Thermocouple temperature range) & 5 to +40°C (operating environment - module)
Omnisense Software
- Multi-channel measurement support
- Multiple sensor types (displacement, force, and temperature)
- Multiple temperature sensors - Up to 4 temperature sensors per channel
- Live digital readouts and real-time graphing
- Synchronized data logging to CSV files with customizable frequency
- Automatic sensor reconnection of accidentally disconnected sensors
- Settings automatically saved and restored between sessions
- Resume measurement after app crash/restart
Specifications
General
Storage conditions
Thickness Sensor Module: -20 to +60 °C (90 %RH or less)
Dimensions
Pouch Cell Holder: 110 x 110 x 32 mm (h = 52 mm with springs), Force Sensor Module: 110 x 42 x 20 mm
Weight
Pouch Cell Holder: 1.5 kg, Force Sensor Module: 700g
Battery testing
Form factor compatibility
Pouch
Product type (battery)
Pouch cell fixture
Signal outputs
Force Sensor Module: USB-PC connection (other options available on request), Thickness Sensor Module: Output USB-PC connection, Temperature Sensor Module: Output USB-PC connection
Connections
Pouch Cell Holder: 4-point (Kelvin) tabs clamp with banana connection (4 mm)
Max. Applicable force
Pouch Cell Holder: 5kN, Force Sensor Module: 5kN
Max. Electrode Size
Pouch Cell Holder: 80 x 80 mm
Allowed tab spacing range
Pouch Cell Holder: 12 mm - 60 mm (same side)
Operation Modes
Pouch Cell Holder: Fixed thickness / Fixed pressure
Accuracy (of F.R.O.)
±0.3% (Non-Linearity)
Measurement Range
Thickness Sensor Module: 5 mm
Thickness resolution
Thickness Sensor Module: 0.1 μm
Thickness accuracy
Thickness Sensor Module: 1 μm
Sensor Type
Temperature Sensor Module: Type K thermocouples (2x)
Temperature accuracy
Temperature Sensor Module: ±1°C / 1%
Temperature Sensitivity
Temperature Sensor Module: ±0.1°C
Response time
<1 second
