Multipurpose Battery Test Fixture
Admiral Instruments
CellPen
CellPen
Description

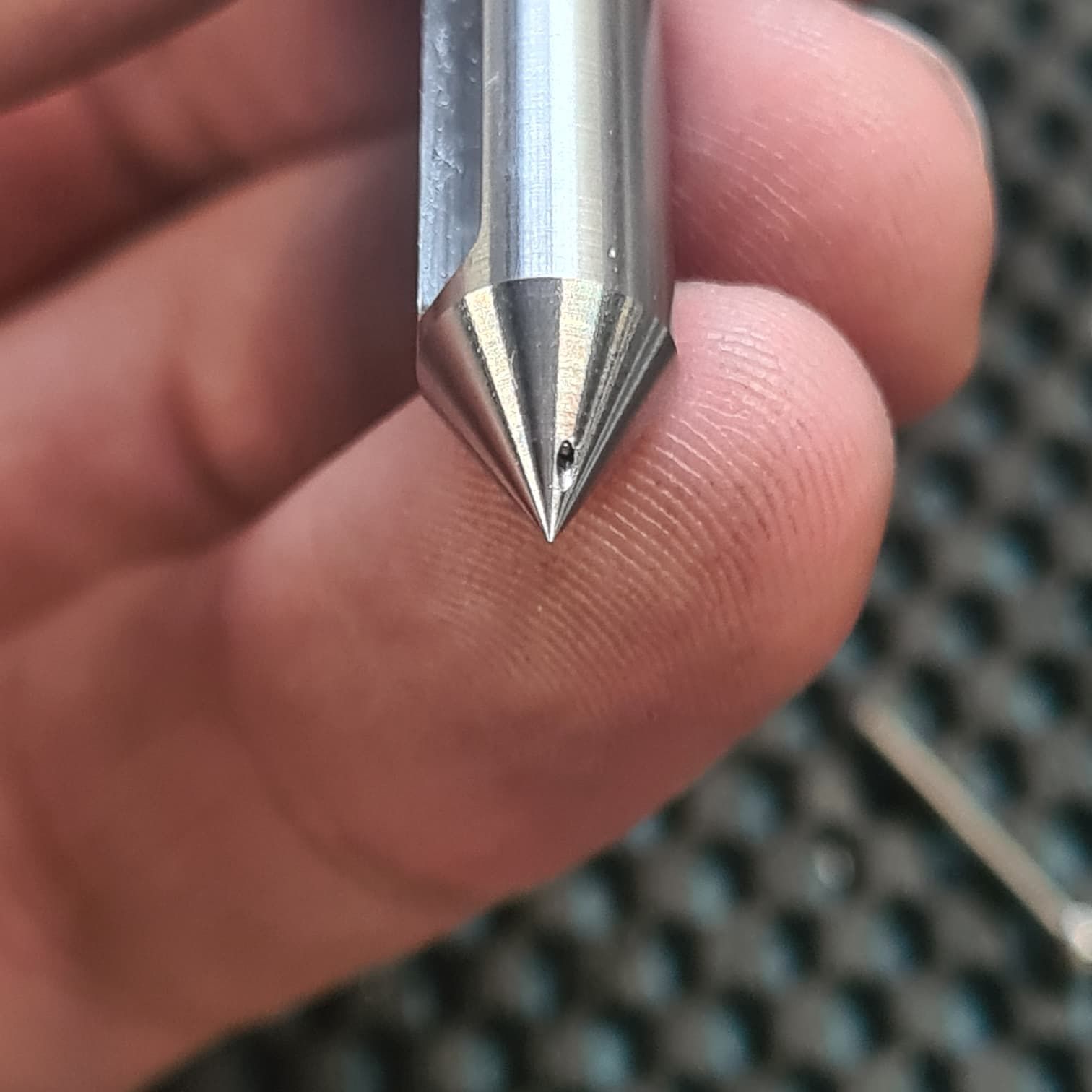

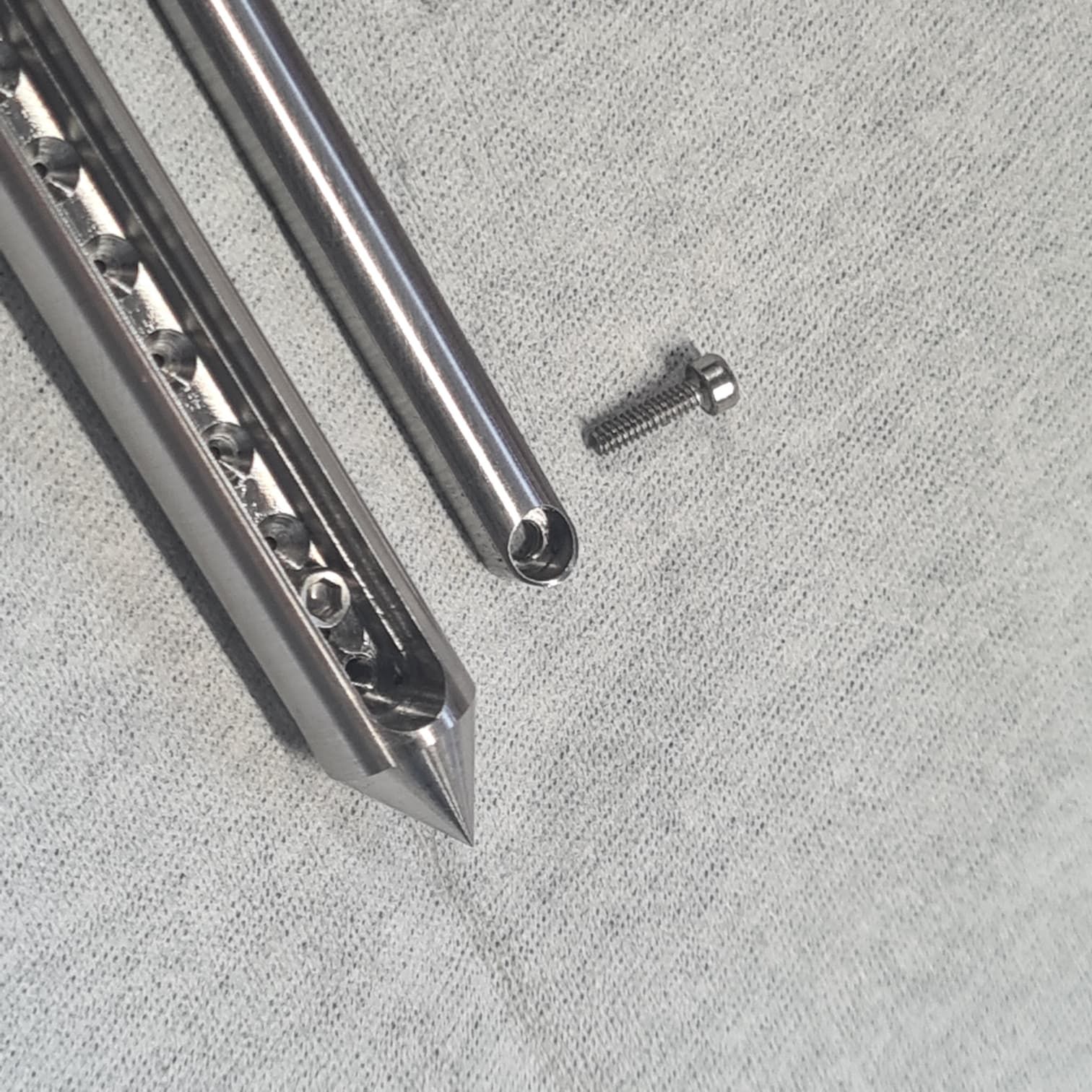

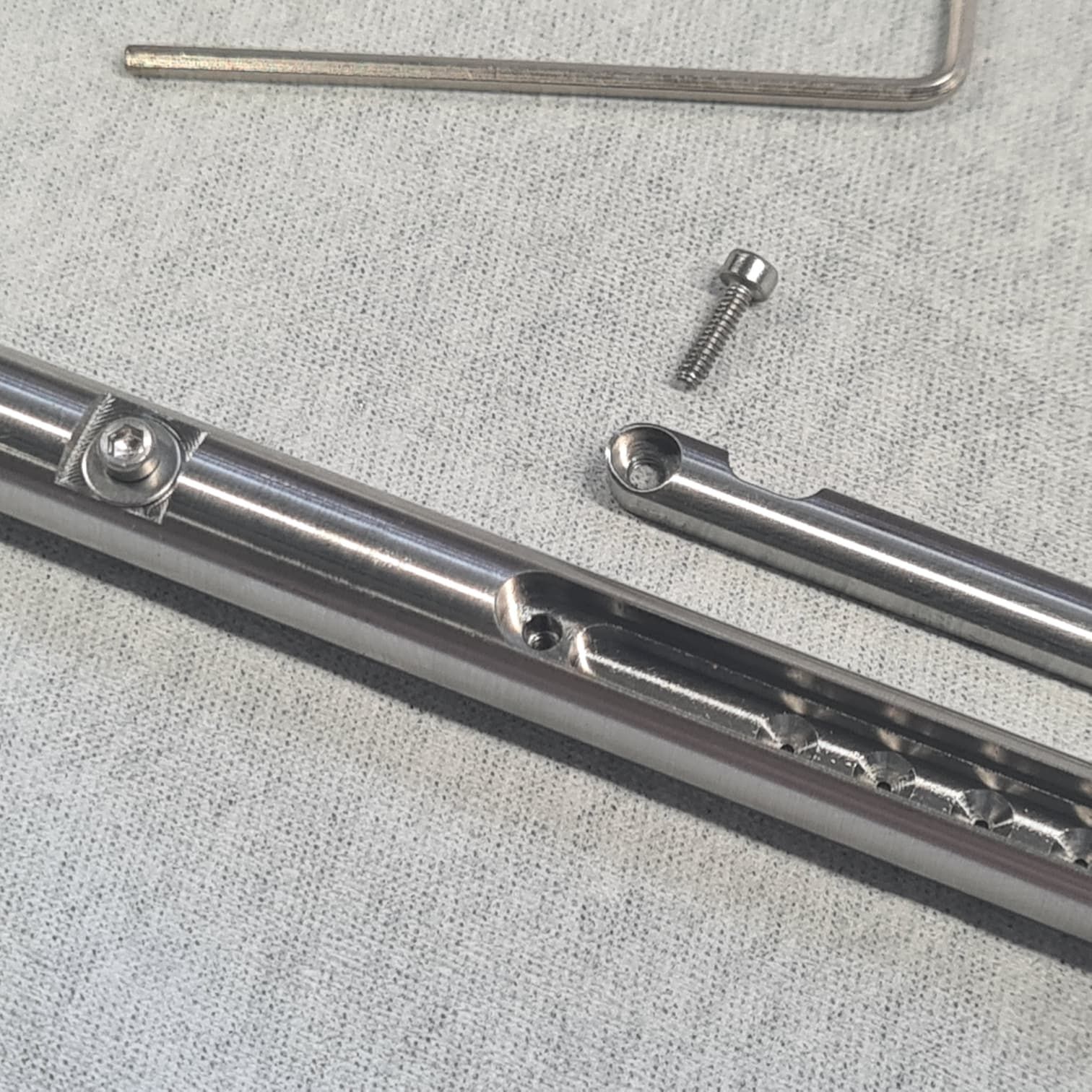

The CellPen integrates up to 9 embedded thermocouples within a precision nail designed for penetration/puncture abuse testing of batteries (IEC 62133-2).
This setup allows measurements of detailed temperature profiles during mechanical puncture tests, delivering valuable thermal data correlated with the battery's failure progression.
CellPen enhances the understanding of thermal responses in abuse testing scenarios.
Specifications
General
Applications
Battery
Dimensions
8mm OD x 120mm, 60° tip angle
Optional Extras
Thermocouples (K, N-type), Temperature input module, Software, Customization
Battery testing
Form factor compatibility
Coin, Cylindrical, Pouch, Prismatic
Product type (battery)
Penetration/puncture
Software integrated
Real-time data visualisation and acquisition
Body Material Setup
Stainless steal
Integrated Features

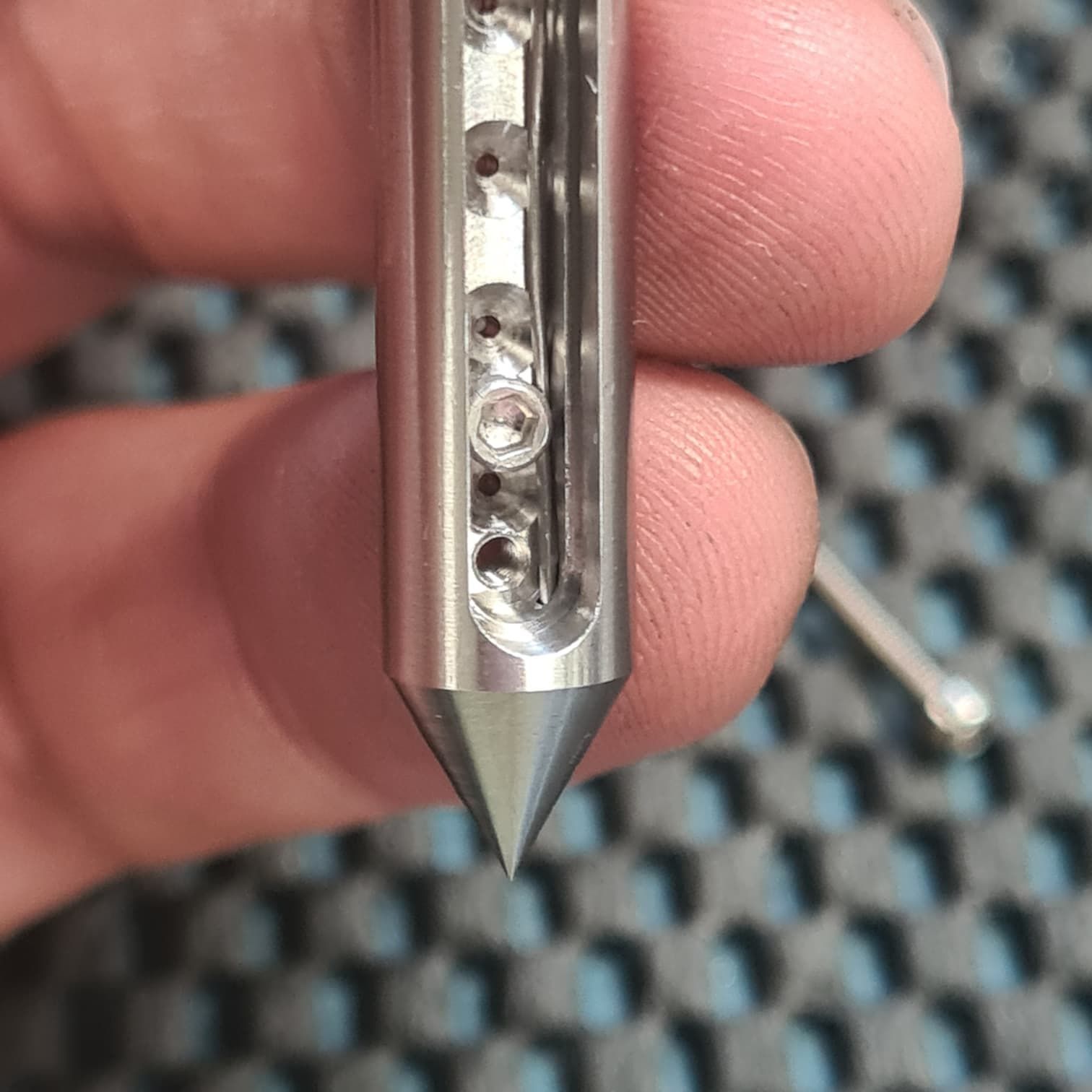

9x thermocouple slots
