CellVantage
CellVantage
Description
The CellVantage is an advanced battery failure test enclosure designed for synchrotron beamtime experiments, although not limited to this.
It facilitates controlled battery failure initiation via thermal (heating) or electrical (short circuit, overcharge) methods while enabling real-time imaging of structural and chemical changes inside the battery.
CellVantage is ideal for in-depth visualisation of failure dynamics under precise experimental conditions.
Specifications
General
Applications
Battery
Dimensions
~7” (180mm) OD x 2ft (600mm) length
Optional Extras
Thermocouples (K-type), Heating elements, Battery cables, Temperature input module, P&ID heating controller, Potentiostats/Galvanostats, XRD enclosure, Control/acquisition software, Customization
Battery testing
Form factor compatibility
Coin, Cylindrical, Pouch
Product type (battery)
Beamtime enclosure

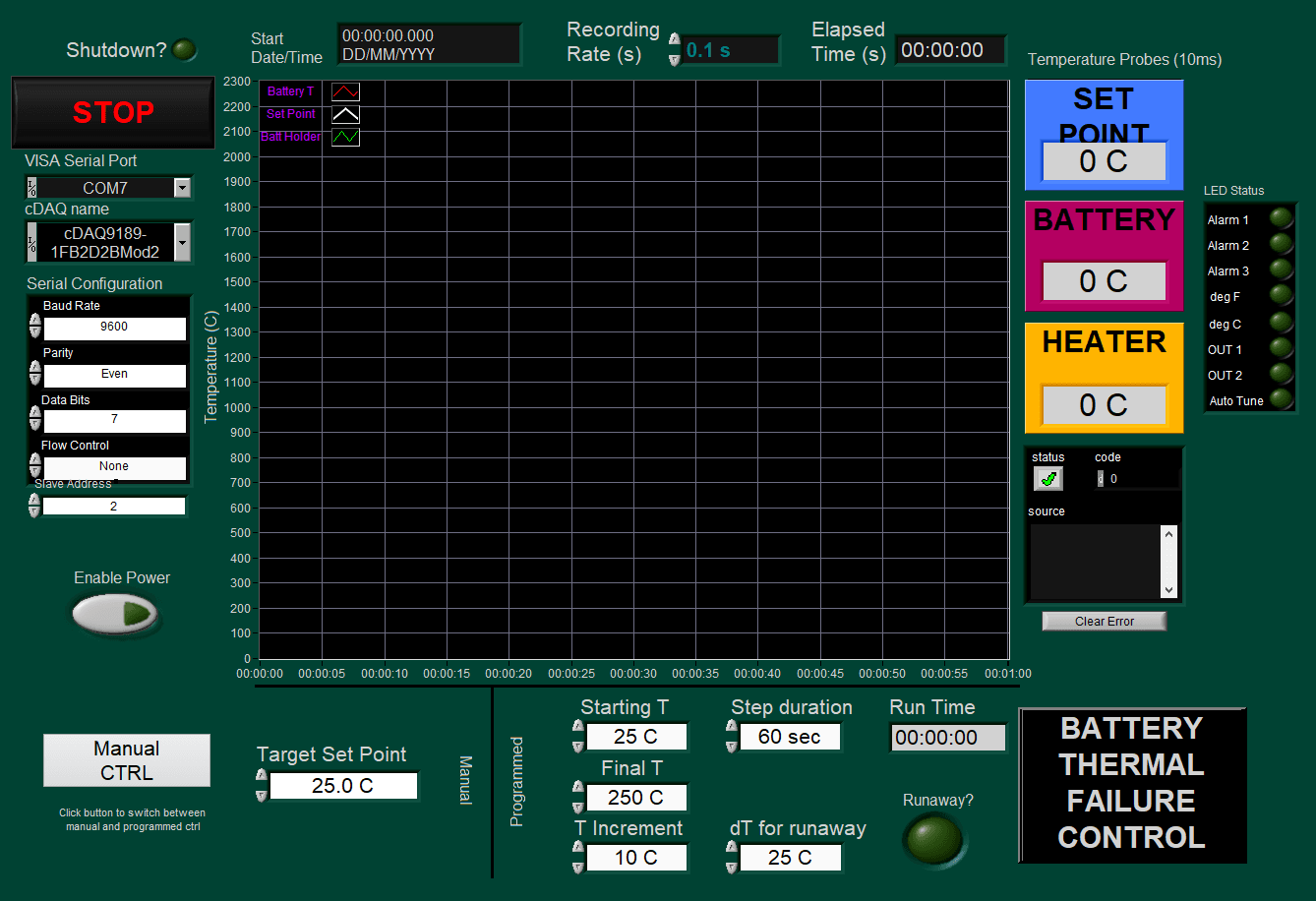

Software integrated
Real-time data visualisation
Body Material Setup
Aluminium
Integrated Features
3x thermocouple slots, 1x BNC feedthrough (acoustics), Battery electrical connections, Heating element slots, Gas sampling/venting ports
