Benefit from this highly reliable test cell for solid-state battery and solid-state electrolyte testing.
Typical applications
The CompreCell 6/12 can be used for solid-state electrochemistry starting with powders or pellets to parametrize solid electrolytes or to test solid-state batteries:
Price: On request
| Applications | Solid-state battery, Solid electrolyte |
| Storage conditions | Storage +10 to +40 °C, Drying up to +100 °C, RH 0–80% (non-condensing), Non-corrosive atmosphere, Storage +10 to +40 °C |
| Weight | ~1.8 kg |
| Dimensions | 6 cm x 6 cm x 14 cm |
| Max Battery Thickness | 10 mm |
| Piston diameter |
6 mm, 12 mm |
| Piston material | Hard metal (90% WC / 10% Co) |
| Max. Applied voltage | 40 V (AC/DC) |
| O-ring material | FFKM |
| Max. Pressure | 1.7 GPa (6 mm diam. piston), 663 MPa (12 mm diam. piston) |
| Sleeve material | PEEK, PEI, Al₂O₃ |
| Airthight | Helium-leakage tested |
| Electrode configuration | 2-electrode |

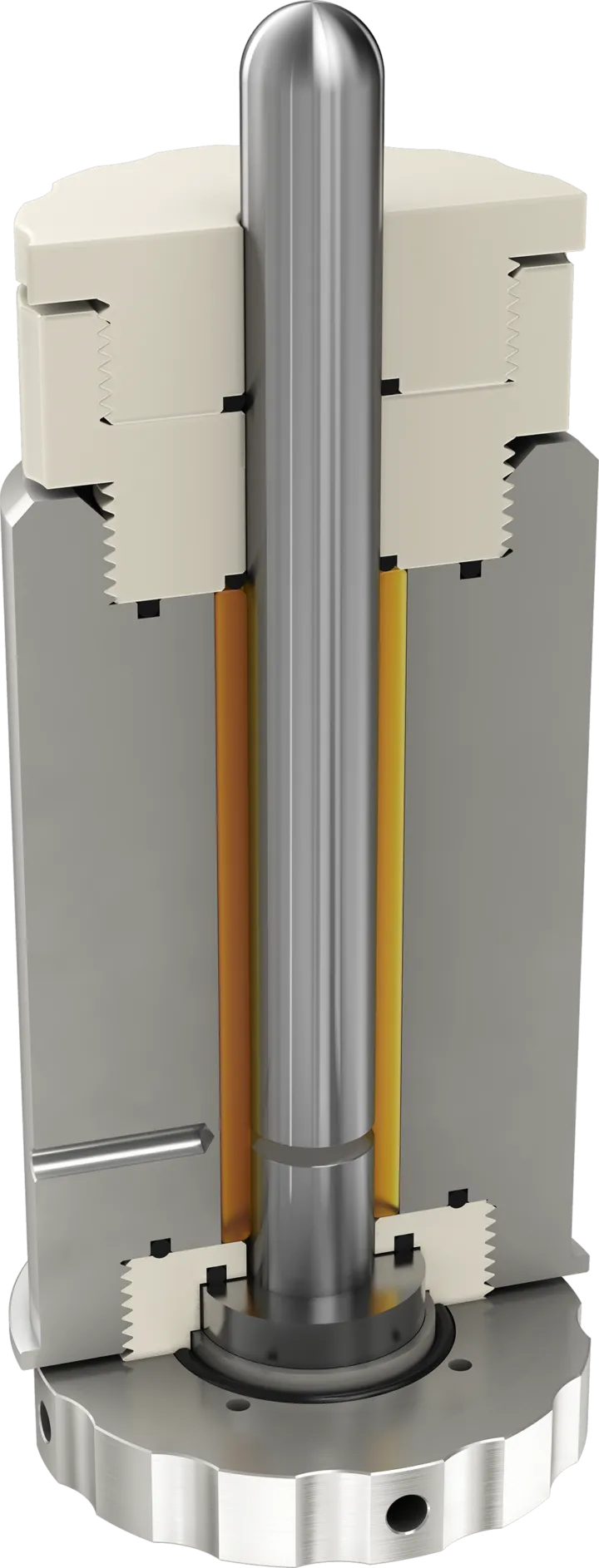

| Compression architecture | Dual piston, can be opened from one side |
| Product type (battery) | Solid-electrolyte test cell |
| Max. Applicable force | 75 kN (12 mm diam. piston), 50 kN (6 mm diam. piston) |
| Operating temperature | -40 °C up to +250 °C, Tmax depends on selected sleeve material |
