The PP242 is a 4-quadrant power potentiostat designed to apply and sink high currents up to ±40 A at a voltage range of up to ±5 V (max. power output 200 W).

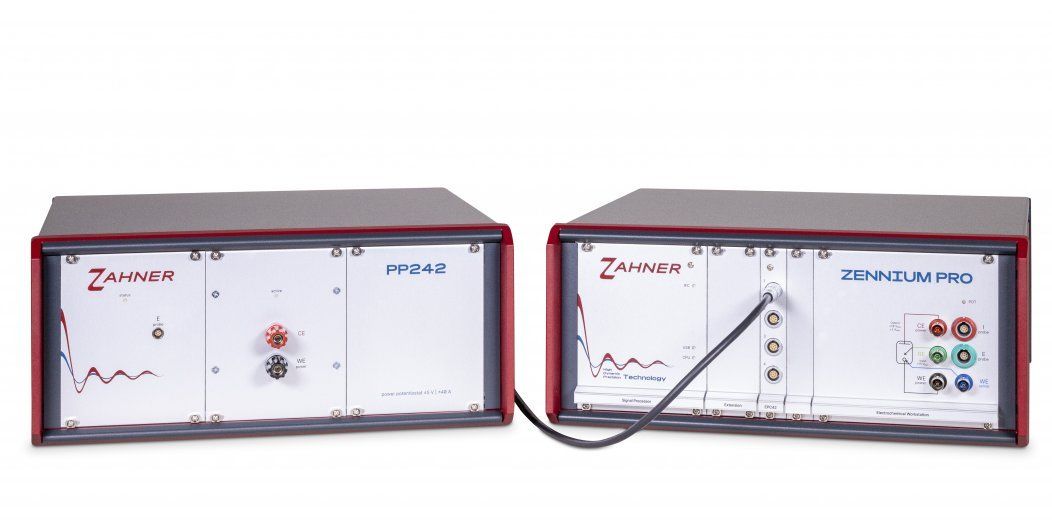

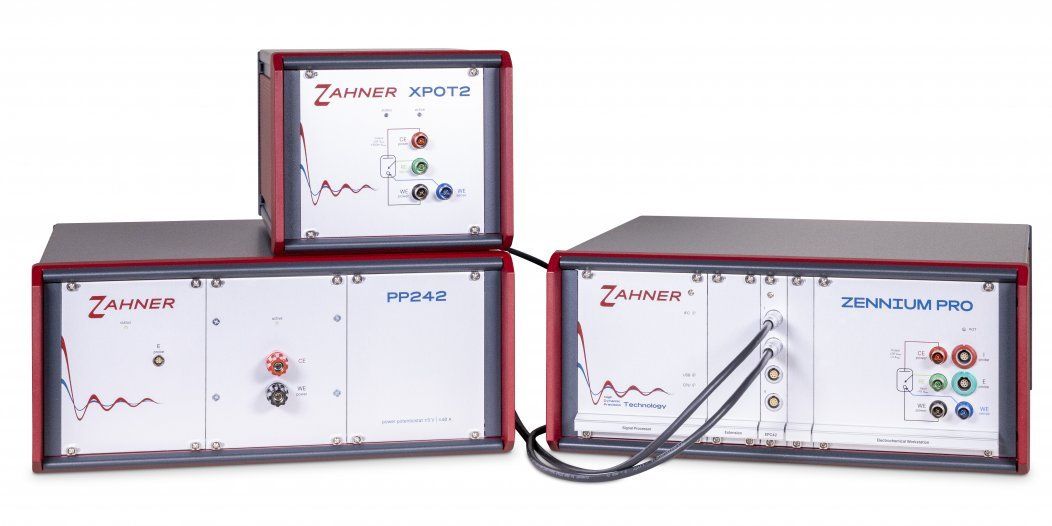

For medium power applications, the PP242 is used as an extension of the ZENNIUM series potentiostat. Most electrochemical techniques which can be performed with the main ZENNIUM potentiostat can also be carried out with the extended power potentiostat PP242 setup.
Besides an extension, the PP242 power potentiostat can also be used in stand-alone mode for standard DC measurements i.e., charging/discharging of batteries. Zahner's new Zahner Lab software controls the potentiostat during stand-alone operations.
The Zahner's power potentiostats can be incorporated in a Python lab environment and can be used as stand-alone or in multi-channel configurations. A GitHub repository with examples is available for developing Python applications.
Instrument Type
Potentiostat/Galvanostat
Weight
10.2 kg
Dimensions
364 × 378 × 160 mm
Max. channels
1
Instrument architecture
Single-channel
PC connection details
USB, Ethernet
Cell connection
4 electrode, 3 electrode
Operating modes
Potentiostatic, Galvanostatic, pseudo-galvanostatic
ADC resolution
24 bit
Grounding details
grounded, floating
Ambient temperature when measuring
+10 °C to +30 °C
Input impedance
100 MΩ
Memory
64 GB
Digital-to-Analog Converters
18 bit (stand-alone, SCPI); 16 bit (with IM7, EPC)
Form factor
Benchtop
Floating operation
Yes
Equivalent effective input noise
< 10 µV rms
Applied potential resolution
38.14 µV
Min. Voltage resolution (output) / μV
38.14
Applied potential accuracy
± 500 µV ± 0.1% of reading
Measured potential resolution
1.192
Min. Voltage resolution (input) / μV
0.596
Potential range
±5 V (stand-alone); ±4 V or ±5 V (with IM7)
Compliance voltage
±5 V
Applied current resolution
3.81 µA
Min. Current Resolution (output) / pA
3810000
Applied current accuracy
± 400 µA ± 0.2% of reading
Measured current resolution
5.96 nA
Min. Current Resolution (input) / pA
5960
Max. current (output) / A
±40 A
EIS configuration
Optional, external unit
