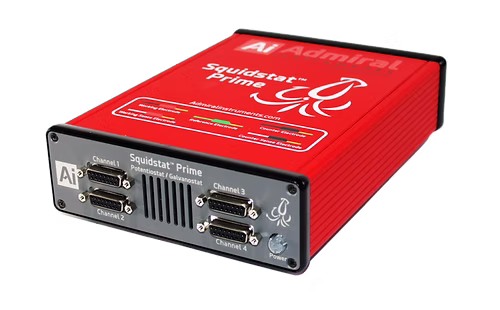

Squidstat Prime
Price: On Request
Description
Squidstat Prime Complete Setup:
Four-channel potentiostat/galvanostat
- Current range: ±250 mA max
- Voltage scan range: ±10 V
- Compatible with Windows, MacOS, and Ubuntu via the Squidstat User
- Interface software and Application Programming Interface
- Onboard memory (16 GB) automatically backs up all channel data for future recovery
- Multiple units can run simultaneously with other Squidstat models
- Made in USA
This system supports multiple electrochemical experiments. Please contact the vendor for the complete and up-to-date list of supported experiments.
Included:
- Four 1-meter Squidstat Basic Cell Cable
- One Power Source Cable (Country based)
- One USB Cable
- One Squidstat InkBoard with Grounding Strap
- Eight Alligator Clips – 2 mm – Red
- Eight Alligator Clips – 2 mm – Black
- Eight Alligator Clips – 2 mm – Green
Specifications
General
Type
Potentiostat/Galvanostat
Dimensions - WxDxH / cm
17 x 24 x 6
Weight
1 kg
PC Interface
USB
Power supply
100 – 240 VAC, 50/60Hz
General Potentiostat
Form Factor
Benchtop / Lab
Channels
≥ 4, ≥ 2, ≥ 1
Cell connection
5 electrode, 3 electrode, 4 electrode
Potentiostat modes
Potentiostatic, Galvanostatic, ZRA
ADC resolution
16 bit
Ground reference
Floating/Ground Mode Both (Switchable)
Shortest DC data recording interval
1000 μs
Shortest DC data hardware sampling interval
100 μs
Memory
16 Gb
Ambient temperature when measuring
0 °C to +40 °C
Channel Cable Length
1 m
Input impedance
10 Tera-Ω (typical)
Input Bias Current
10 pA (typical)
Potentiostatic
Max. Potential range (±) / V
10
Voltage resolution (output)
0.003% (30.52 ppm) of range, 300 μV min
Min. Voltage resolution (output) / μV
300
Accuracy voltage (output)
0.1% of setpoint, 1 mV min
Min. Accuracy voltage (output) / mV
1
Compliance voltage / ±V
10
Voltage resolution (input)
0.003% (30.52 ppm) of range, 300 μV min
Min. Voltage resolution (input) / μV
300
Accuracy voltage (input)
0.1% of measured, 1 mV min
Min. Accuracy voltage (input) / mV
1
Voltage Ranges
1 range, [±10 V]
Number of Voltage Ranges
1
Slew rate
35 kV/s (-1 V to +1V) - (1 kΩ load)
Min/Max Scan Rate
300 μV/s minimum & 25 V/s maximum with 10 mV sampling
Smallest Potential Step for Sweep Voltammetry
0.003% (30.52 ppm) of range, 300 μV min
Smallest Pulse Width
400 μs
Square Wave Voltammetry Max Frequency
1 kHz (-1 V to +1V)
Time Resolution
100 μs
iR Compensation Limits
1.25 V max
Potential Range Required (±) / V
±1 V or higher, ±4 V or higher, ±10 V or higher
Required Compliance Voltage
≥ 10 V, ≥ 5 V, ≥ 2 V
Galvanostatic
Max. current (output) / A
±250 mA
Current range
8 ranges, [25 nA to 250 mA]
Number of current ranges
8
Current Resolution (output)
0.003% (30.52 ppm) of range, 760 fA min
Min. Current Resolution (output) / pA
0.76
Current Accuracy (output)
0.1% of range, 1 nA min
Min. Current Accuracy (output) / nA
1
Current Resolution (input)
0.003% (30.52 ppm) of range, 760 fA min
Min. Current Resolution (input) / pA
0.76
Current Accuracy (input)
0.1% of range, 1 nA min
Min. Current Accuracy (input) / nA
1
Max. Current
≥ 250 mA, ≥ 100 mA, ≥ 1 mA
Impedance
EIS Capability
No
