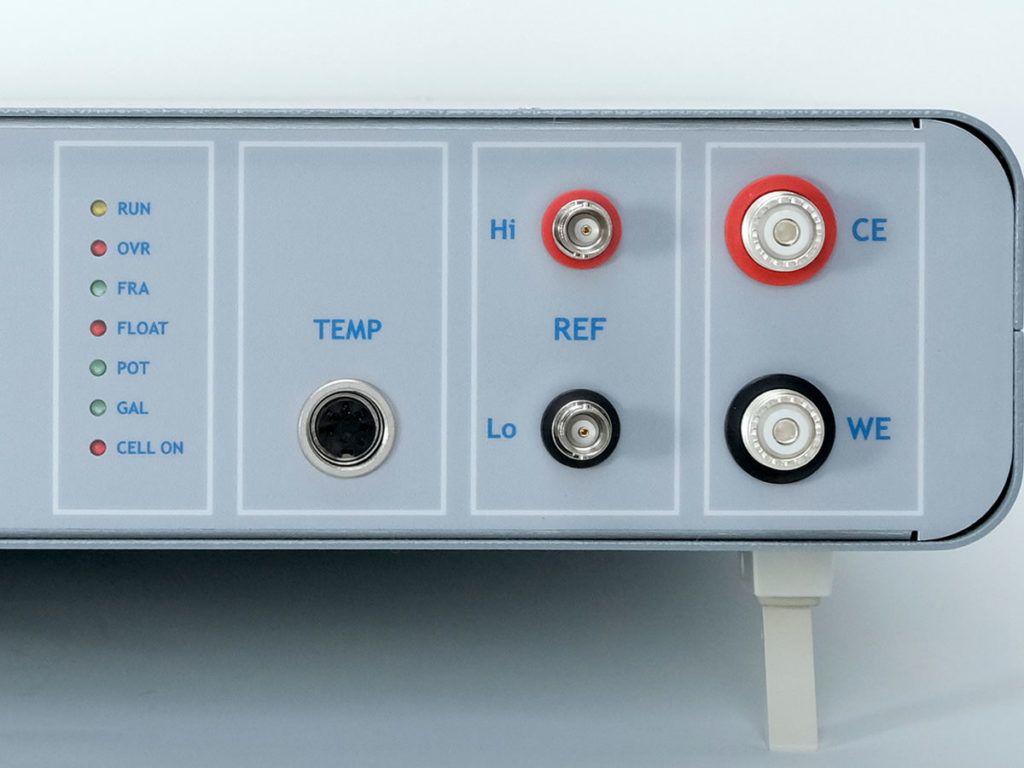

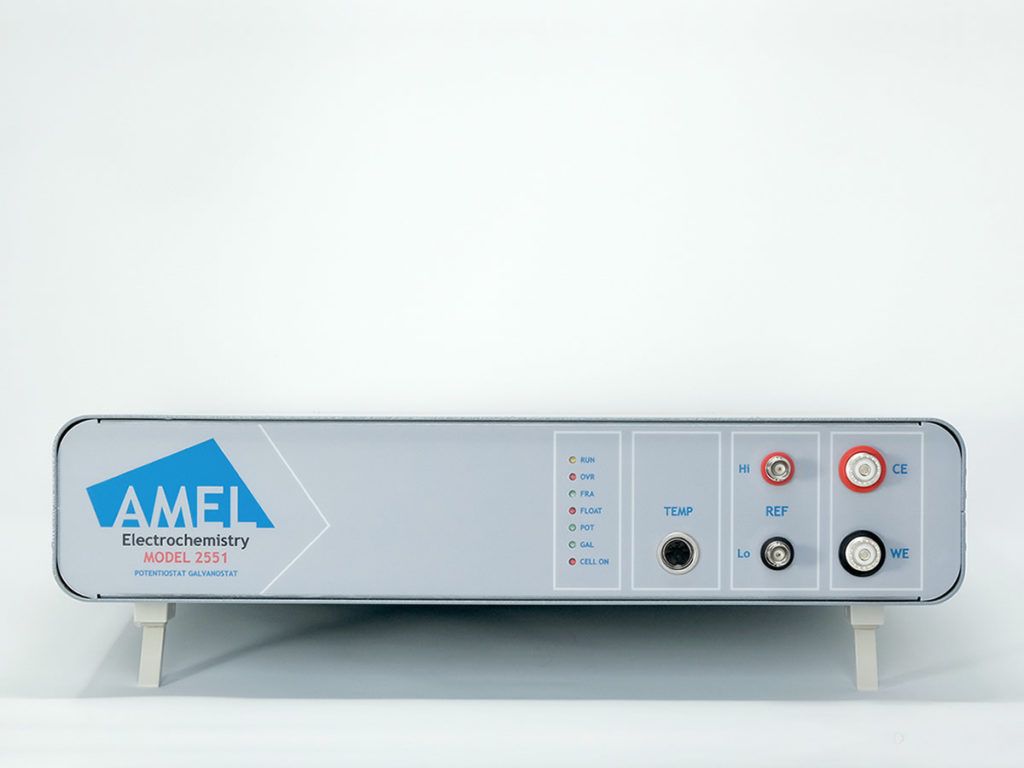

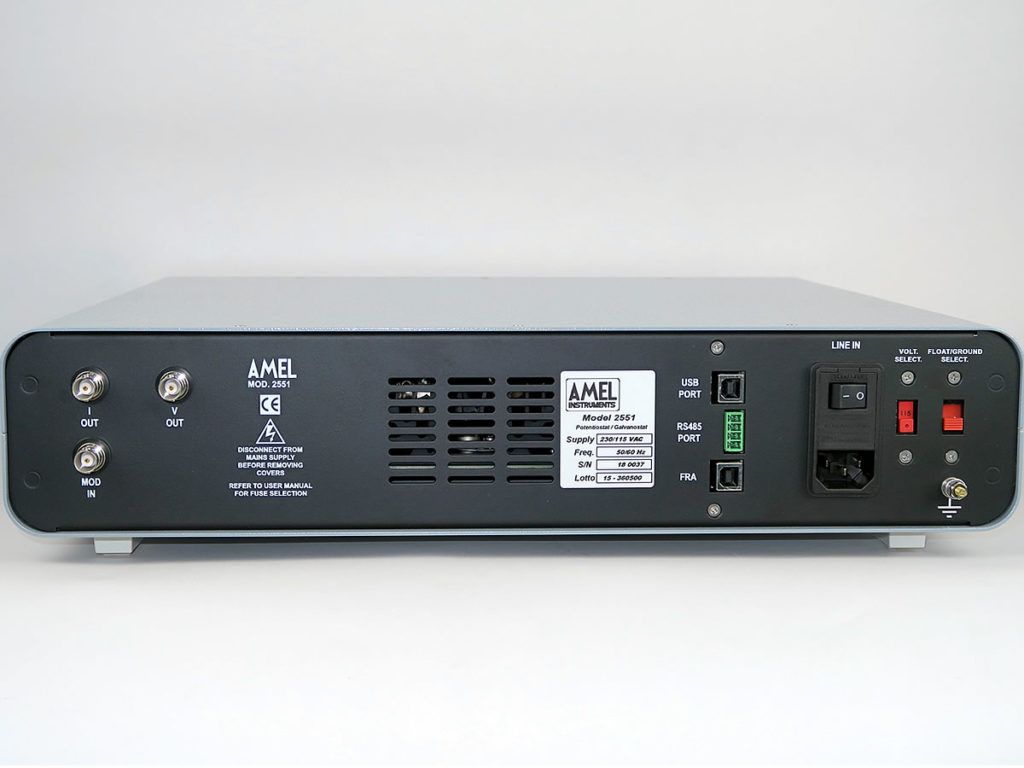

2551 Potentiostat-Galvanostat

Description

Model 2551 has been designed to be the perfect compromise between price and performances, without neglecting quality.

It has been developed to meet the needs of the most demanding users. This unit, along with the excellent reliability typical of all AMEL’s potentiostats, offers several new features, let’s check the datasheet! The instrument is fully controlled via VApeak software.

Price: On request

Specifications

Accessories

Type	Potentiostat/Galvanostat

General Potentiostat

Form Factor	Benchtop / Lab
Channels	≥ 1
Cell connection	≥4 electrode, ≥ 3 electrode
ADC resolution	16 bit
PC interface	USB

Request Quote / Info

Your request will be sent to AMEL via email.

Name *

Surname *

Email *

Country *

Company Name *

Message to AMEL (optional)

I agree to the processing of my data according to the Privacy Policy *

Subscribe to updates and marketing communications (optional)

Power supply

115 to 230V ±10% AC/DC 50/60Hz

Memory

EEPROM 64kB – SRAM 32kB

Input impedance

> 1 TΩ

Input Bias Current

< 10pA at 25°C

Digital-to-Analog Converters

16 bit

Input Capacitance

< 20 pF (1m cable)

Protection

Thermal, overload and short-circuit

Common Mode Rejection

> 60dB full frequency response

Port Output

8 external accessory

I/O port

8 optional

General

Dimensions - WxDxH / cm	44.5 x 40 x 8.5
Weight / kg	8

Potentiostatic

Max. Potential range (±) / V	10
Voltage resolution (output)	100 μV
Min. Voltage resolution (output) / μV	100
Accuracy voltage (output)	± 0,2% & 0,1% (conversion at Full Scale)
Compliance voltage / ±V	19
Slew rate	0,01mV/s to 10V/s
iR Compensation Limits	2Ω to 100MΩ (depending on current range)
Required Compliance Voltage	≥ 15 V, ≥ 10 V, ≥ 5 V, ≥ 2 V

Galvanostatic

Max. current (output) / A	±1 A
Current range	9 ranges, ±10 nA to ±1 A
Number of current ranges	9
Current Resolution (output)	From 10pA at 10nA F.S. to 100μA at 1A F.S.
Min. Current Resolution (output) / pA	10
Current Accuracy (output)	< 1% of Full Scale in 10nA to 1μA ranges < 0,25% of Full Scale in 10μA to 1A range

Impedance

EIS Capability
