ECA-LP1
Special launch offer: 2000 EUR instead of 2500 EUR
Description

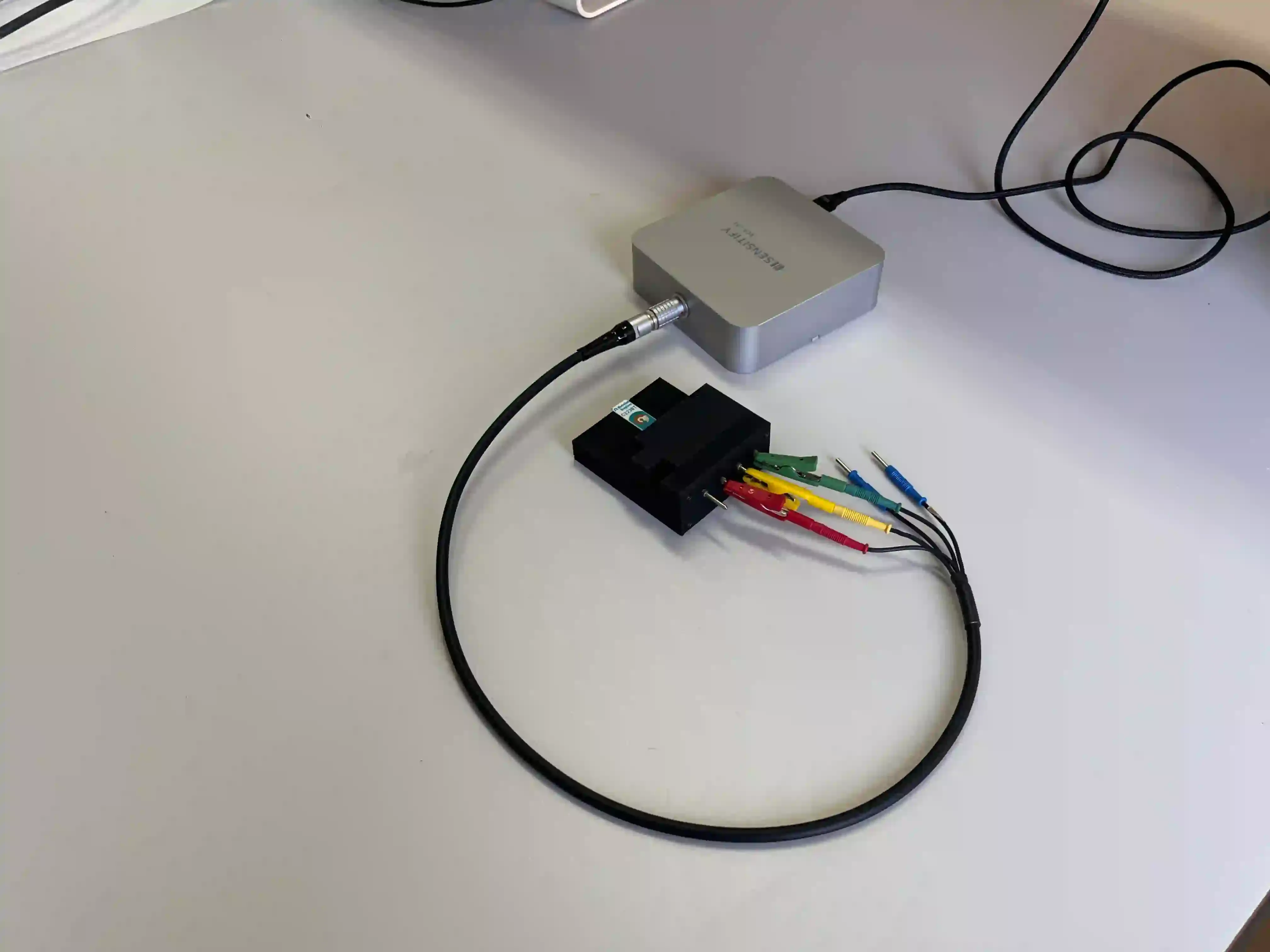

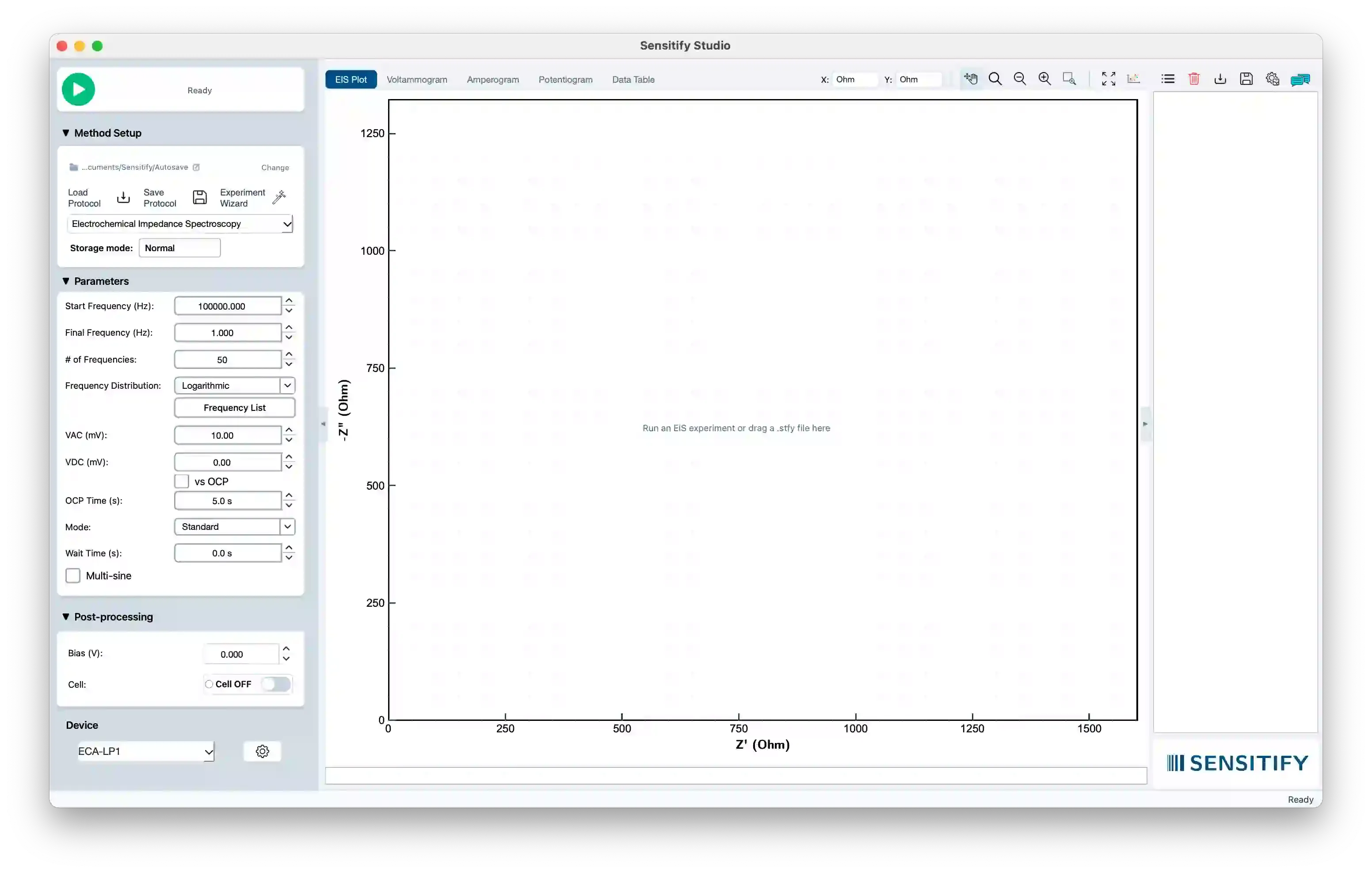

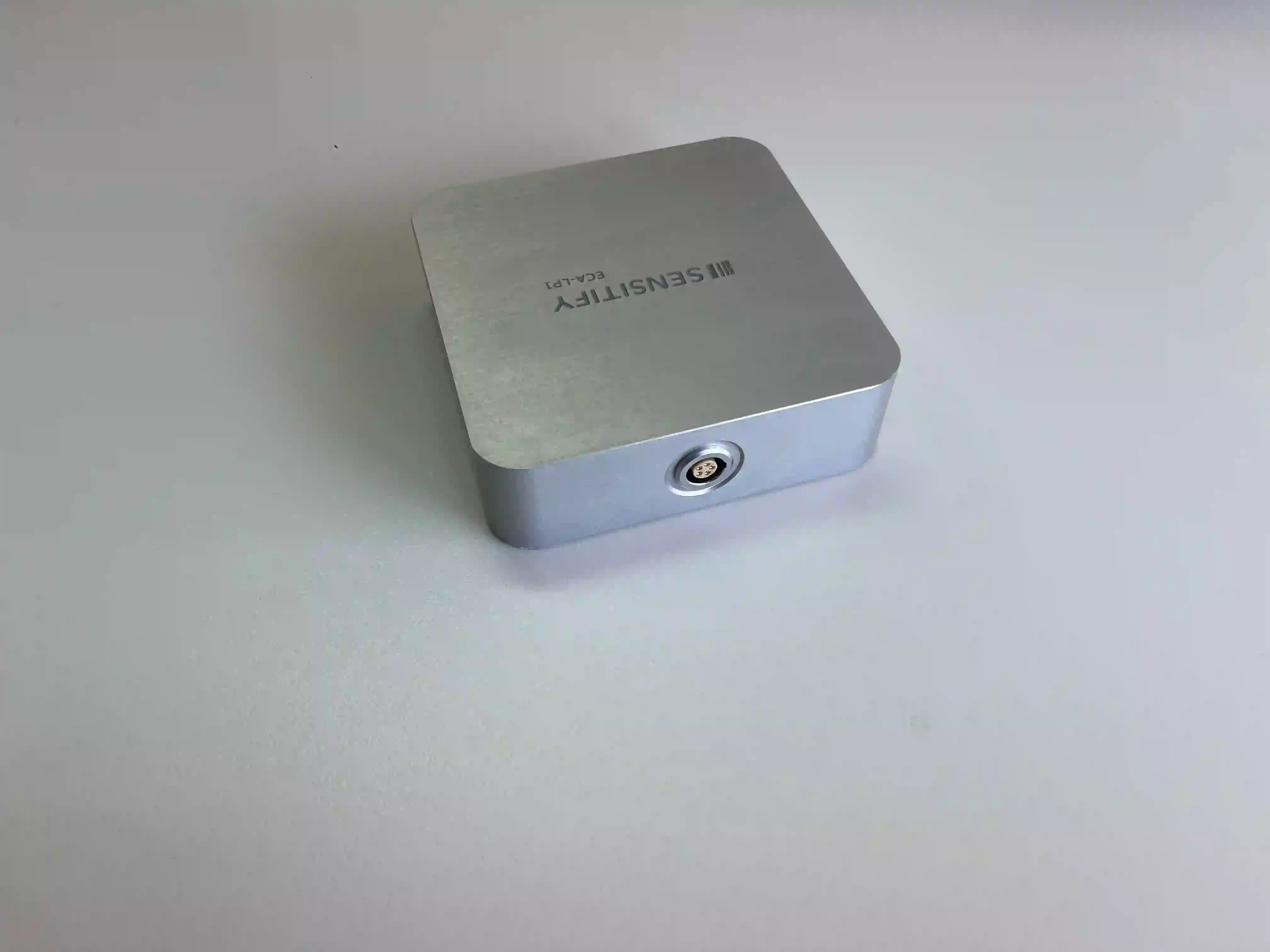

The ECA-LP1 is a potentiostat, galvanostat, and impedance analyser in a single enclosure, with multisine EIS up to 1 MHz. It performs voltammetry, amperometry, potentiometry, chronopotentiometry, and electrochemical impedance spectroscopy. With ±5 V and 250 mA on the cell and 128 GB of onboard storage, it can run experiments without a PC connected. Test fixtures for interdigitated and screen-printed electrodes are available. Sensitify Studio is included for Windows, macOS, and Linux, with circuit fitting, peak detection, a parameter assistant, and a publication workbench for calibration curves, dose-response fits, box plots, and bar graphs.
Applications
- Electrochemical sensor development
- Corrosion measurement
- Battery research
- Coatings, electrolytes, and dielectric characterisation
Specifications
General
Type
Potentiostat / Galvanostat / EIS
Dimensions
100 x 100 x 30 mm
Power supply
USB-C PPS adapto
PC Interface
USB-C
Operating System
Windows, macOS, Linux
General Potentiostat
Included tools
Circuit fitting, peak detection, parameter assistant, publication workbench
Channels
≥ 1
Cell connection
3 electrode

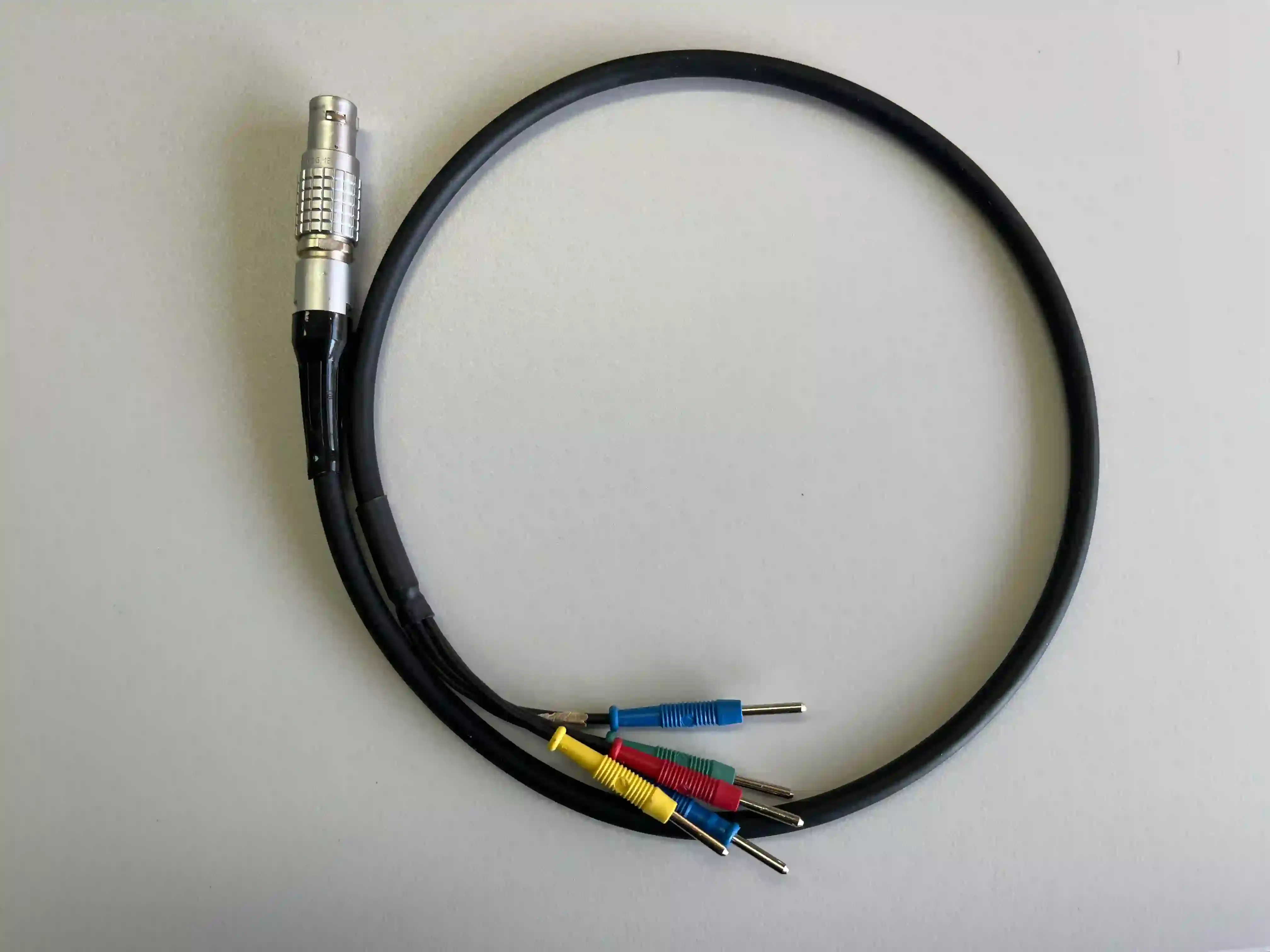

Channel Cable Length
1 m
Memory
128 GB
ADC resolution
24-bit (slow measurements), 16-bit (fast measurements)
Digital-to-Analog Converters
2 × 16-bit (fine and coarse)
Settling time
2 µs
Impedance
EIS Capability
Yes
EIS frequency range
10 µHz to 1 MHz
Min. EIS Frequency range
≤ 100 Hz, ≤ 10 Hz, 10 mHz
Max. EIS Frequency range
≥ 1 kHz, ≥ 1 MHz
Potentiostatic EIS Amplitude
1 mV – 350 mV
Multi-sine excitation
Yes
DAC sampling rate
80 MSPS
ADC resolution (EIS)
24-bit (single frequency), 16-bit (multi-sine)
Lock-in detection
Analog (single frequency), digital (multi-sine)
Potentiostatic
Max. Potential range (±) / V
5
Potential Range Required (±) / V
±1 V or higher, ±4 V or higher
Compliance voltage / ±V
7.5
Required Compliance Voltage
≥ 2 V, ≥ 5 V
Min/Max Scan Rate
max. 50 V/s
Galvanostatic
Max. Current
≥ 1 mA, ≥ 100 mA, ≥ 250 mA
Max. current (output) / A
±250 mA
Min. Current Resolution (output) / pA
0.1
