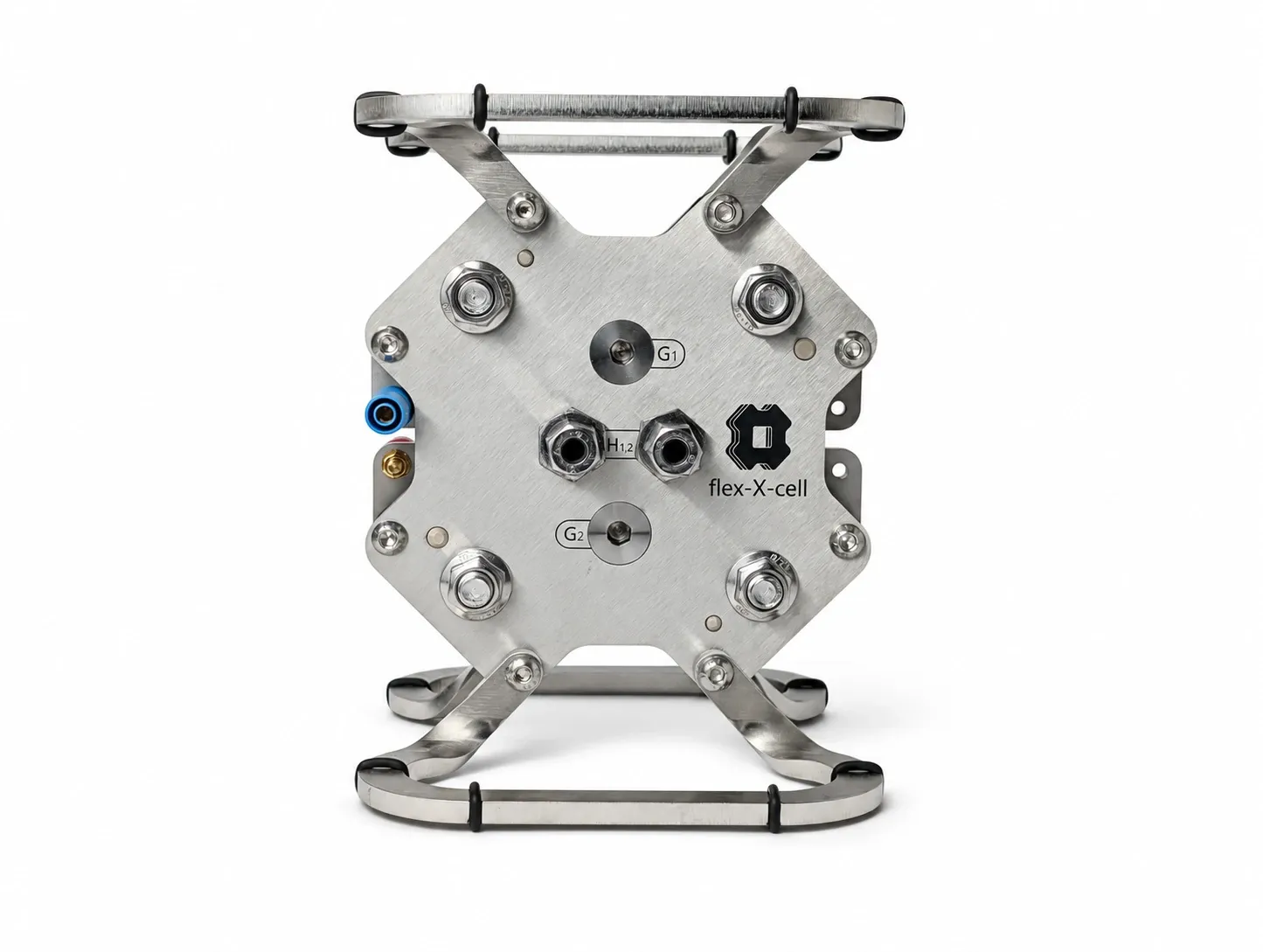

Name: flex-X-cell S for PEM electrolysis
Brand: FXC Engineering
Price: 3230 EUR

A modular proton exchange membrane electrolysis test cell for catalyst and electrode testing, membrane studies and porous transport layer evaluation. The configurable assembly also supports investigation of catalyst-layer interfaces and comparative testing of the materials used in PEM water electrolysis.

Membranes and electrodes are supplied separately unless explicitly included in the selected configuration or added to the quotation. Optional configurations and the final scope of supply are confirmed with the quotation.

Specifications

General

Applications

PEM Water Electrolysis

Optional accessories

Reference electrode integration (on request), Integrated thermostat channel (on request)

Customizable Parameters

Geometry, Thickness, Fluid connector size, Fluid connector material, O-ring material, Materials, Coatings

Typical Lead Time

1–3 months (indicative / configuration-dependent)

General Cells

Active Area Cell

5 cm²

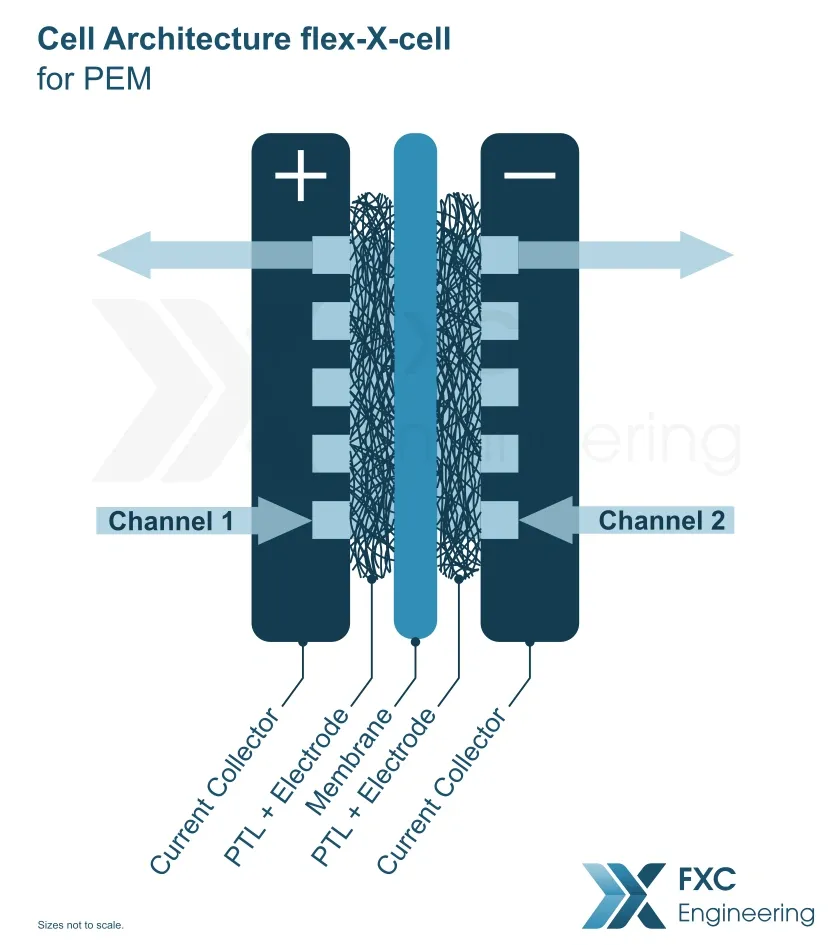

Chamber Configuration

2 channels

Anode Current Collector / Electrode

Ti with serpentine flow field

Cathode Current Collector / Electrode

Stainless steel with serpentine flow field (standard), Ti with serpentine flow field (on request), Graphite with serpentine flow field (on request)

Max. Operation Pressure

3 bar (gauge)

Maximum Operating Temperature

100 °C

Cell External Dimensions

Approx. 145 × 170 × 190 mm (W × D × H)

Electrical contact

4 mm banana socket, or bolted cable lug directly to the current collector

Fittings and Tubing Connection

For 6 × 4 mm (OD × ID) tubing / other tubing sizes on request

Fluid Connector Material

Stainless steel (1.4571) (standard) / PFA or PTFE (on request)

Sealing O-ring material

EPDM (alternatives on request: FKM, FFKM or FEP-encapsulated)

End Plates Material

Stainless Steel

Flow Fields

Serpentine, Interdigitated (on request), Parallel-channel (on request)

Anode Flow Frame Thickness

200 µm (standard), 100 µm (on request), 250 µm (on request), Custom thickness (on request)

Anode Flow Frame Material

PTFE

Cathode Flow Frame Thickness

200 µm (standard), 100 µm (on request), 250 µm (on request), Custom thickness (on request)

Cathode Flow Frame Material

PTFE

Membrane Frame Thickness

100 µm (standard), 25 µm (on request), 50 µm (on request), No membrane frame (on request), Custom thickness (on request)

Membrane Frame Material

PTFE (where a membrane frame is selected)

Included Accessories

Fittings, O-rings, Positioning pins, Screws, Handles

Not Included

Membranes, Electrodes

Accessories

Wetted Materials

Titanium, PTFE, selected current-collector (default: titanium anode and stainless-steel cathode), stainless steel 1.4571 fluid connectors, and selected O-ring materials
