597 Cylindrical FlatSample Cell
AMEL



This electrochemical glass cell with a water jacket is designed to characterize an electrode material in an inert atmosphere and controlled temperature as well. It provides an airtight attachment of MTX working, counter, and reference electrodes or other compatible accessories required for measurements.
Applications
General Electrochemistry

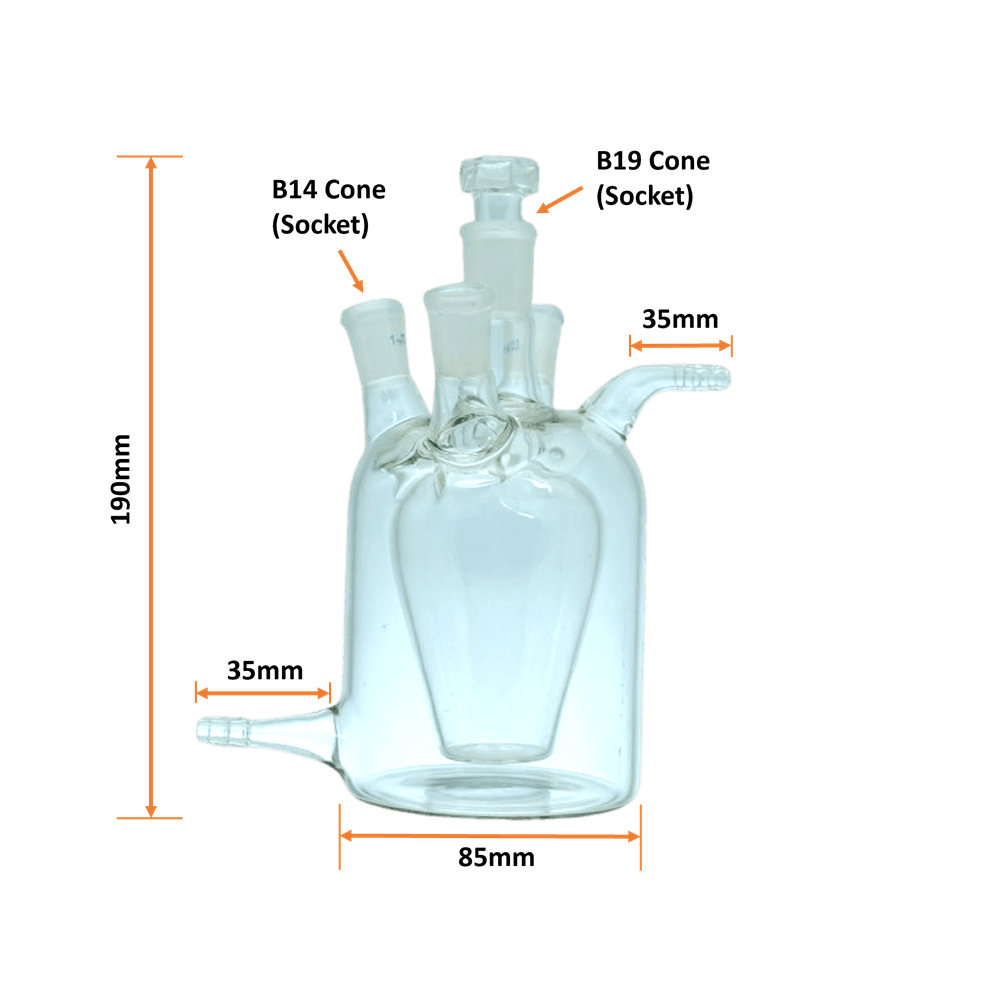

Dimensions Cell
190 mm height and 85 + 35 width
Operating Temperature
max. 150 °C
Cell Geometry
Conical
Cell Type
Jacketed, General Electrochemical Cell
Cell Body Material
Borosilicate Glass
Total Volume
100 mL
Number of Ports
4
Port Interface
3 B14 and 1 B19
Sent directly to MTX Labs
Sent directly to MTX Labs
Jacketed (Temp Control)
Included
