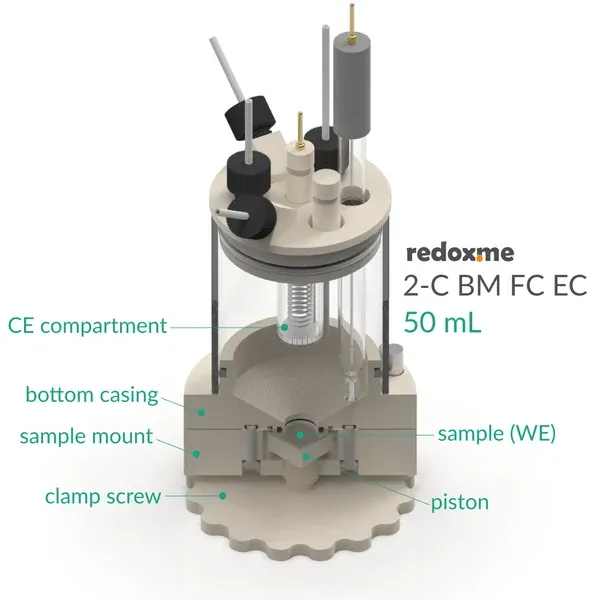

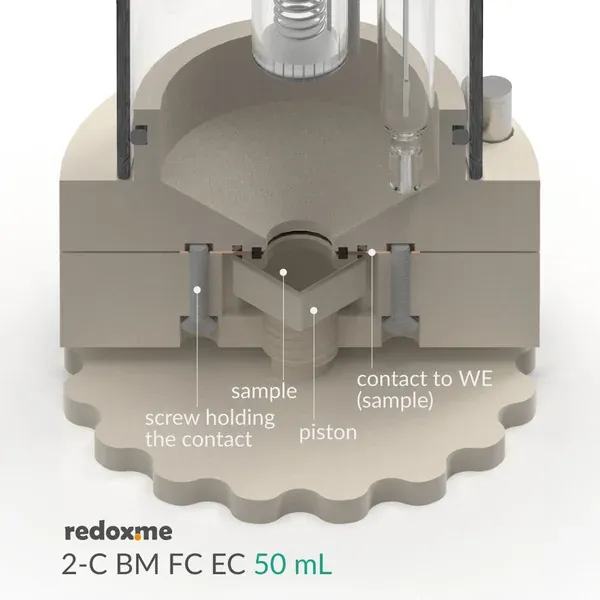

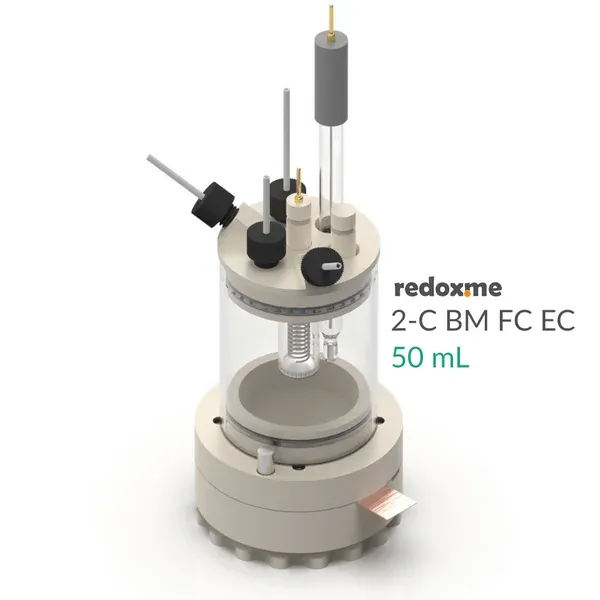

This is a stationary solution two-compartment cell for measurements of a thin film deposited on a flat substrate of a specific size (variants A, B, C or D). The sample (working electrode) is placed on the piston and loaded from the bottom via screw mount, while counter and reference electrodes are mounted in a top casing (either 2-, or 3-electrode setup). The counter electrode is placed in a small glass compartment separated from the other electrodes by a ceramic frit (2 mm thick Al2O3 nanoporous disk). This small compartment is equipped with a separate inlet and outlet for easy filling with an electrolyte and evacuation of gaseous products. After the cell is assembled the sample is sealed in the cell using the clam screw. Customization for other substrate sizes/shapes is available on request. The cell elements are constructed with materials that are inert to the sample (glass and PEEK). It fits aqueous (FKM/EPDM O-Rings) and organic solvent (FFKM O-Rings) electrolyte requirements. The construction is gas-tight and can be used when the removal and exclusion of contaminants such as oxygen and water is required by bubbling of an inert gas through the electrolyte.

Application note The reference electrode tip should be placed close to the bottom of the chamber, where the working electrode is exposed to the electrolyte. This will ensure a negligible potential drop throughout the electrolyte solution for low-current experiments. Various auxiliary electrodes are suitable including metal wire, metal foil electrodes and graphite rod. The bubbling of gas through the solution must be stopped prior to experiment.

Product includes

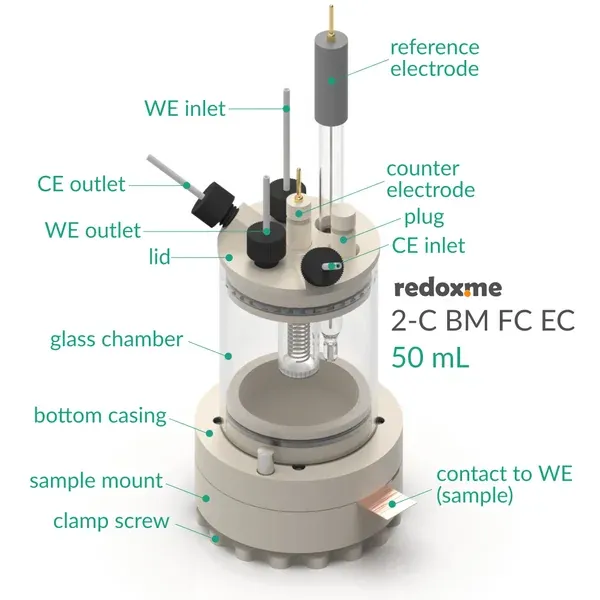

• 1 x lid
• 1 x glass chamber
• 1 x CE glass compartment (0024PGLMA)
• 1 x bottom casing
• 1 x sample screw mount
• 1 x piston
• 1 x clamp screw
• 2 x plug
• 1 x tantalum contact
