Jacketed Standard Electrochemical Cell

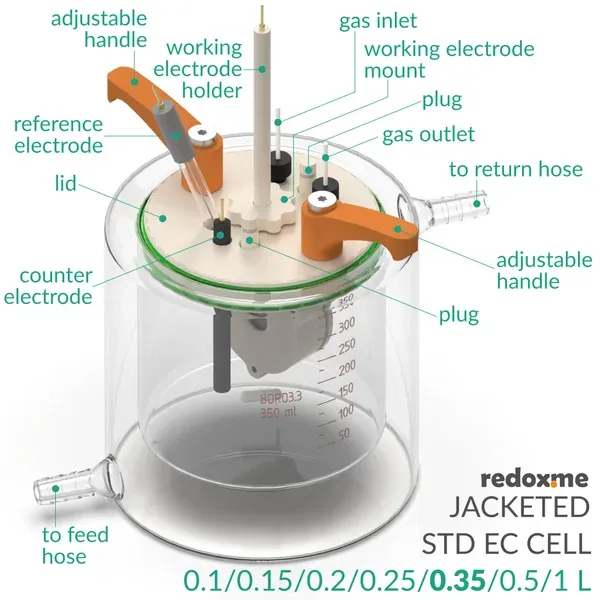

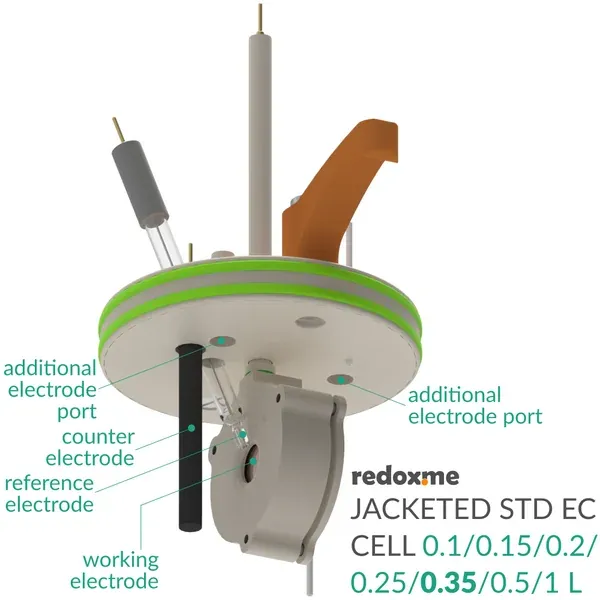

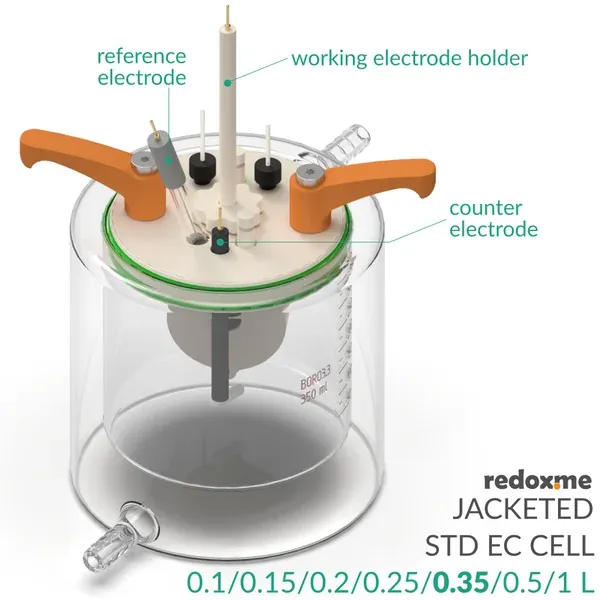

This is a stationary solution jacketed standard electrochemical (electrolytic) cell for measurements of electrodes in a form of: a) rod/disc (6 mm dia.), b) thin film deposited on flat substrate (using a sample holder) and c) membrane (using a clip electrode). The working, counter and reference electrodes are mounted in a top casing either in 2-, or 3-electrode setup. A temperature of an electrolyte can be controlled by circulation of a fluid agent between thermostatic bath and the jacketed vial. The cell has two spare ports for connection of e.g. thermometer, Clark electrode, pH meter electrode, or other 6 mm dia. electrode/probe.

The cell elements are constructed with materials that are inert to the sample (glass and PEEK). It well fits aqueous (FKM/EPDM O-Rings) and organic solvent (FFKM O-Rings) electrolyte requirements. The construction is gas-tight and can be used when the removal and exclusion of contaminants such as oxygen and water is required by bubbling of an inert gas through the electrolyte.

Application note The reference electrode tip should be placed close to a working electrode center. Various auxiliary electrodes are suitable including metal wire, metal foil electrodes and graphite rod. The bubbling of gas through the solution must be stopped prior to experiment.

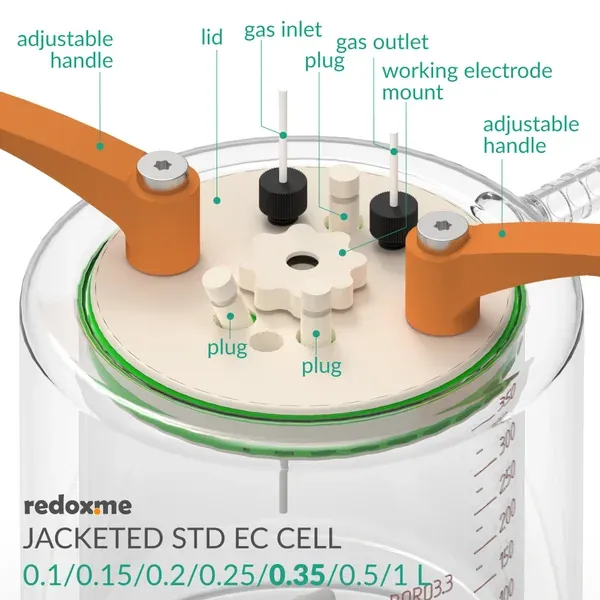

Product includes

• 1 x lid
• 2 x adjustable handle
• 1 x jacketed vial
• 1 x working electrode mount
• 3 x plug
