BM H-CELL 50 mL - Bottom Mount Electrochemical H-Cell 50 mL

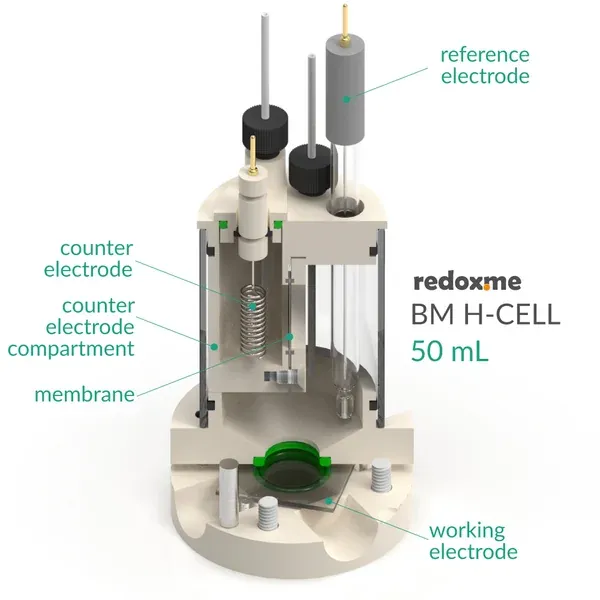

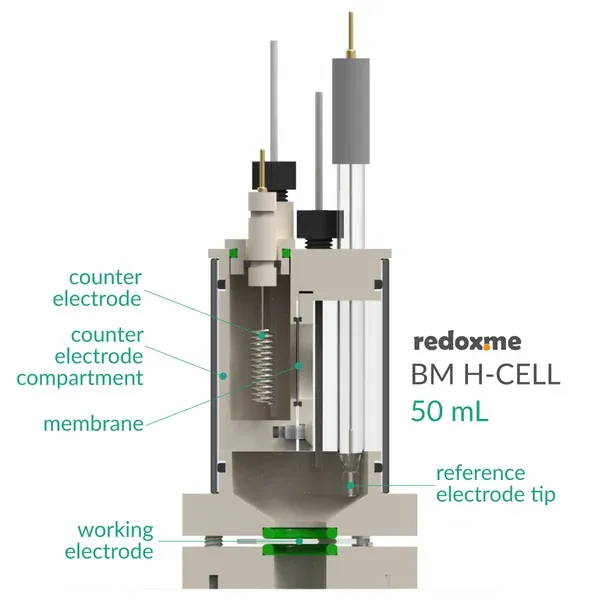

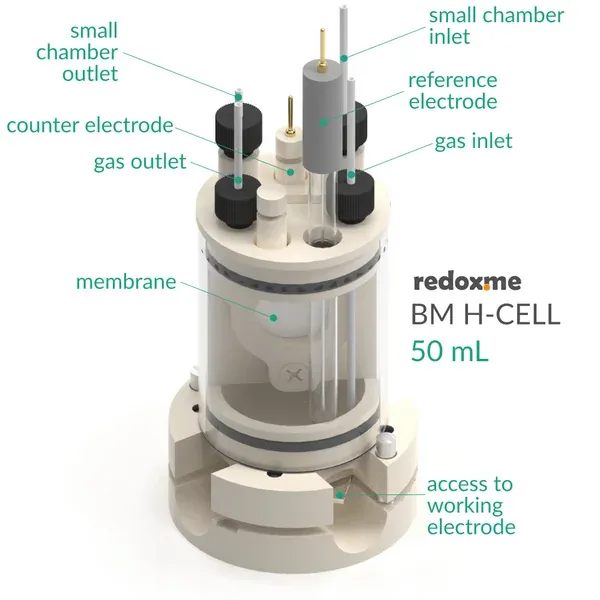

This is a stationary solution double compartment electrochemical H-Cell for measurements of a thin film deposited on a flat substrate. The sample is loaded from the bottom via screw mount, while counter and reference electrodes are mounted in a top casing (either 2-, or 3-electrode setup). The counter electrode is placed in a compartment separated from the other electrodes by ion-exchange membrane (19 mm to 25 mm dia.), so the electrochemical products appearing at working and counter electrode do not affect the opposite electrode. The counter electrode compartment is equipped with a separate inlet and outlet for easy filling with an electrolyte and evacuation of gaseous products. It can accommodate standard Metal Wire Auxiliary Electrodes as well as square shape electrodes with sizes up to 25 mm x 25 mm. The magnetic mount version of this cell, as well as customization for other substrate sizes, is available on request. The cell elements are constructed with materials that are inert to the sample (glass and PEEK). It fits aqueous (FKM/EPDM O-Rings) and organic solvent (FFKM O-Rings) electrolyte requirements. The construction is gas-tight and can be used when the removal and exclusion of contaminants such as oxygen and water is required by bubbling of an inert gas through the electrolyte.

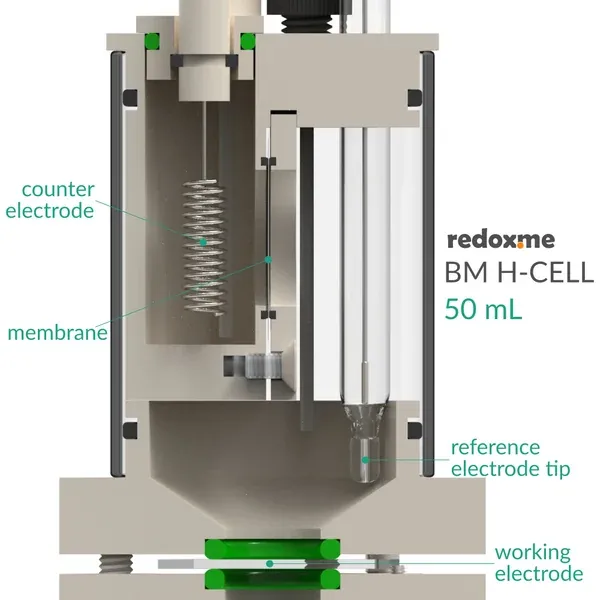

Application note The reference electrode tip should be placed close to the bottom of the chamber (3-5 mm), where the working electrode is exposed to the electrolyte. This will ensure a negligible potential drop throughout the electrolyte solution for low-current experiments. Various auxiliary electrodes are suitable including metal wire, metal foil/mesh/foam electrodes and graphite rod. The bubbling of gas through the solution must be stopped prior to experiment.

Product includes

• 1 x lid
• 1 x counter electrode compartment
• 1 x membrane holder
• 1 x glass chamber
• 1 x bottom casing
• 1 x sample screw mount
• 2 x plug
