Glass electrolytic cell
Corrtest Instruments
2 L cell for plasma electrolytic oxidation
2 L cell for plasma electrolytic oxidation
Price: On Request
Description

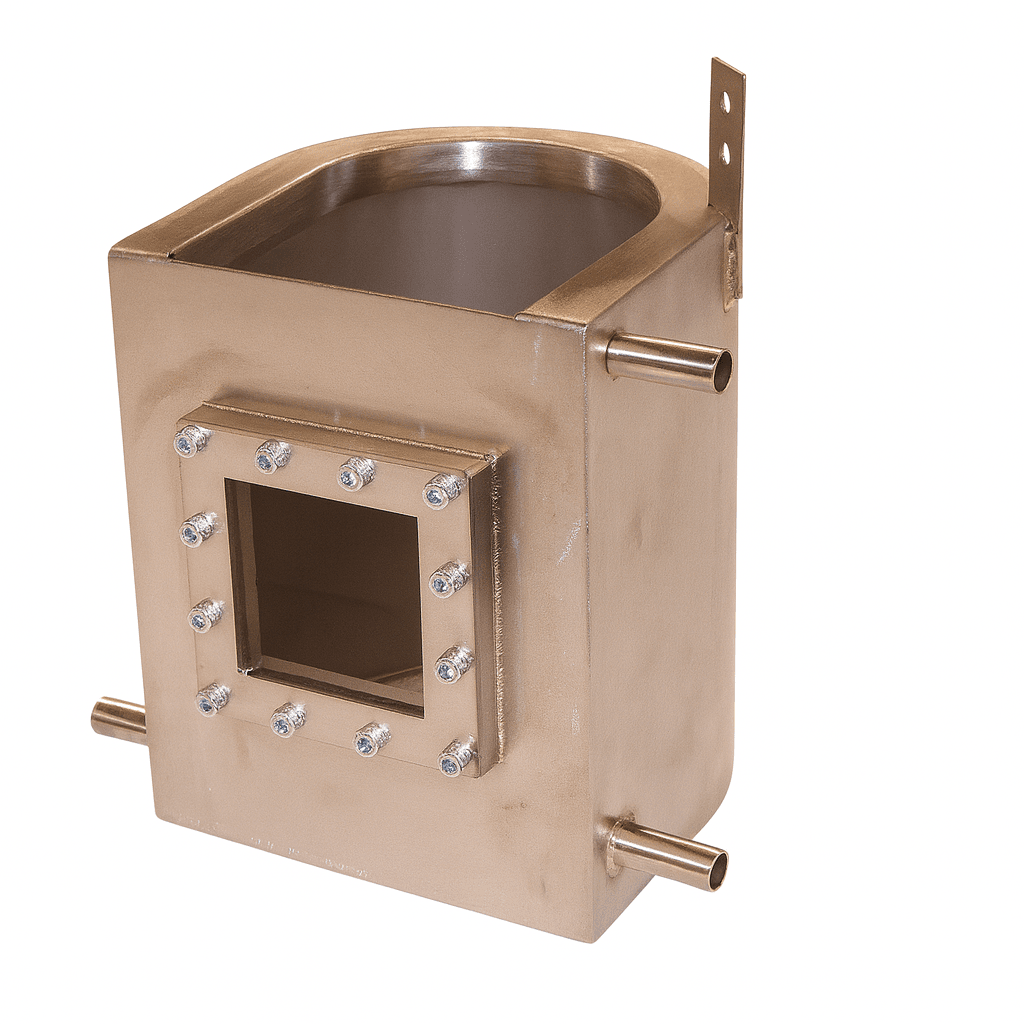

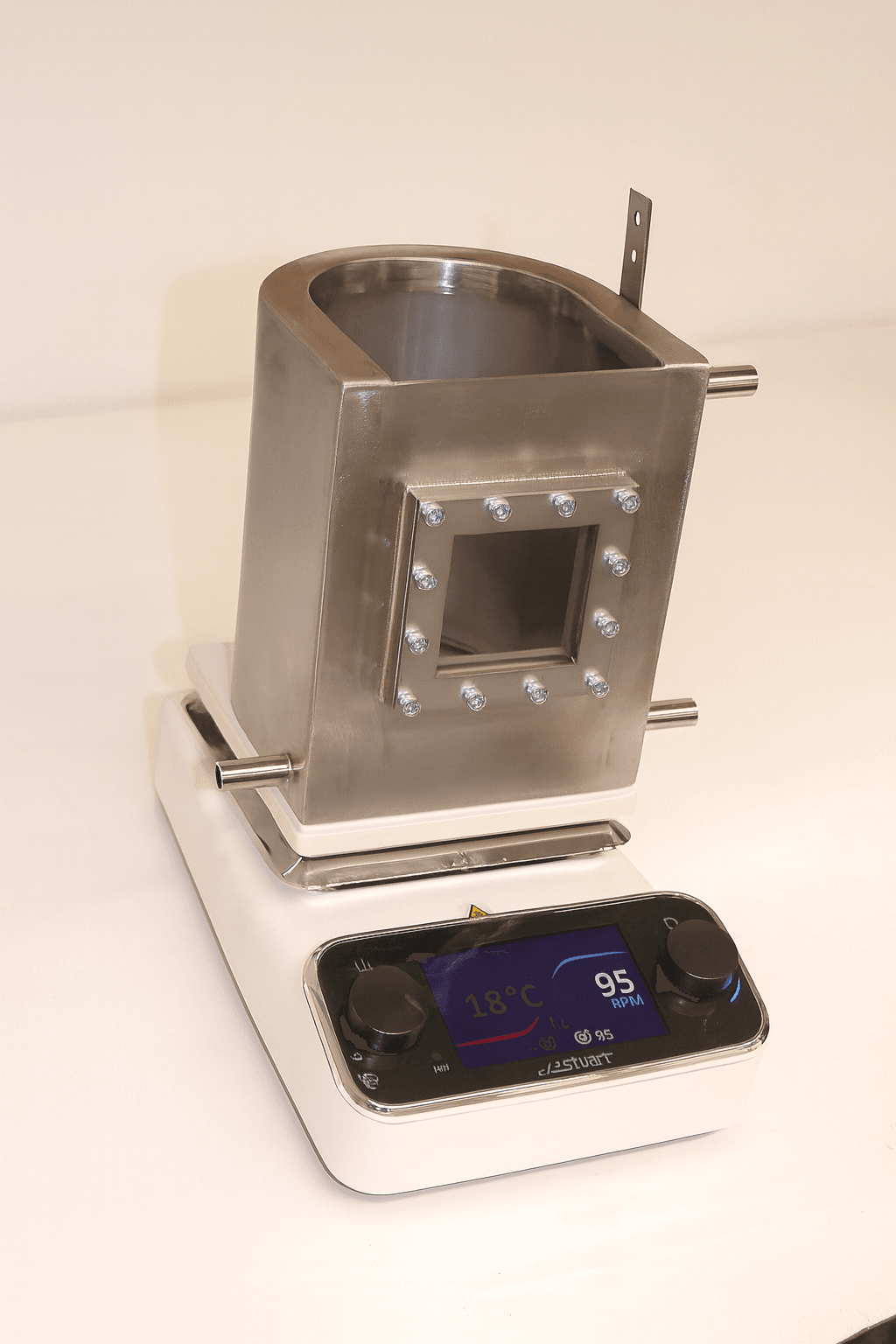

2L jacketed cell made from stainless steel 316L for plasma electrolytic oxidation of Mg, Al, Ti and alloys under unipolar or bipolar electrical modes in non-aggressive alkaline electrolytes. Compatible with standard 150x150 mm magnetic stirrers having ceramic top.
Key Features:
- View port for observation and photos
- High uniformity of electric field
- Double walled cooling jacket
- Electrolyte drainage pipe
- Mechanical rigidity
Specifications
General
Applications
Plasma Electrolytic Oxidation
Dimensions Cell
Base dimensions: 150 x 150 mm, Body height: 190 mm, Wall thickness: 1.2 mm, Viewport dimensions: 60 x 60 mm
Weight
3 kg
General Cells
Cell type
Plasma Electrolytic Oxidation
Cell Body Material
Stainless steel - 316L
Total volume
2 L
Counter electrode area (max)
620 cm2
Cooling power
2.5 kW
