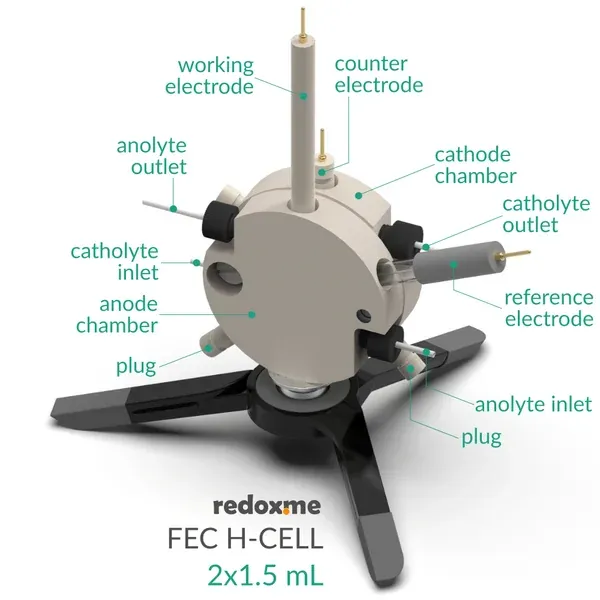

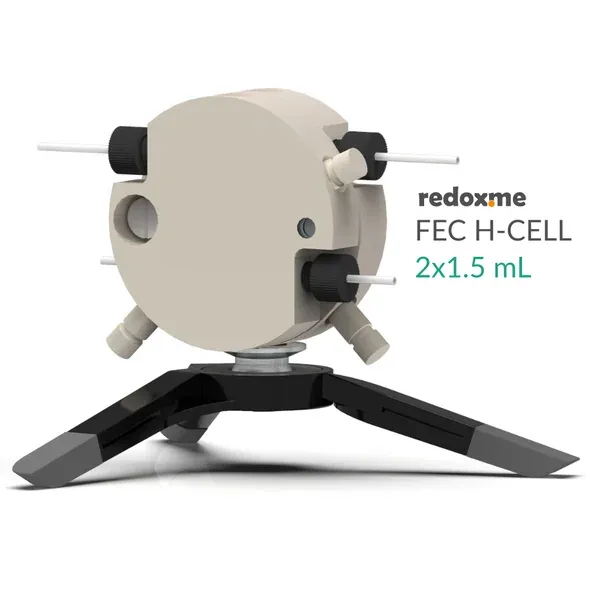

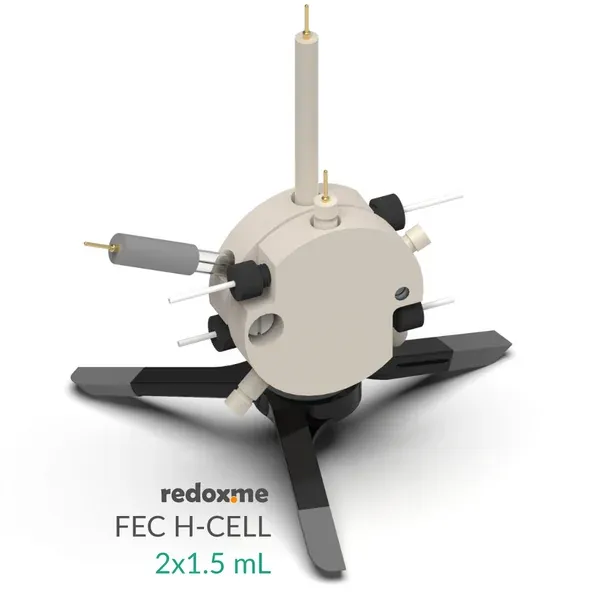

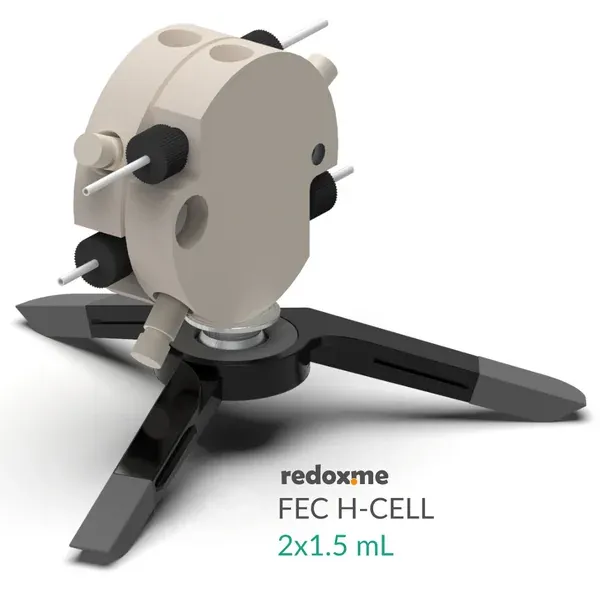

Horizontally mounted, double-compartment electrochemical flow H-Cell. Cell elements are made of PEEK, compatible with aqueous (FKM/EPDM O-Rings) and organic solvent (FFKM O-Rings) electrolytes. Gas-tight construction with two separate flow chambers, each equipped with electrolyte inlet and outlet enabling both static filling and circulating flow mode. Chambers are separated by an ion-exchange membrane (e.g. Nafion). Each chamber accommodates up to three electrodes.

Application note Supports 2- or 3-electrode setups. Designed for materials deposited on working disk electrodes. Counter electrode in second chamber; reference electrode in same chamber as working electrode. Compatible with metal wire and graphite rod counter electrodes. Typical applications: basic electrochemistry, long-term measurements, RE potential measurements, and electrosynthesis.

Product includes

• 2 x flow chamber
• 4 x plug
• 1 x table tripod (0028PHYCM)
• 1 x set of Nylon screws (0029PNYCM)
