HCA FC PEC 15 mL single-sided – Hook Clamp Assembled Front Contact Photo-electrochemical Cell

Description

This is a horizontally mounted, single compartment photo-electrochemical cell with hook clamp assembled mount and front electrical contact. It is designed to investigate performance of a thin film photo-anode deposited on a rigid or flexible transparent substrate (typically FTO coated or uncoated borosilicate or fused quartz glass).

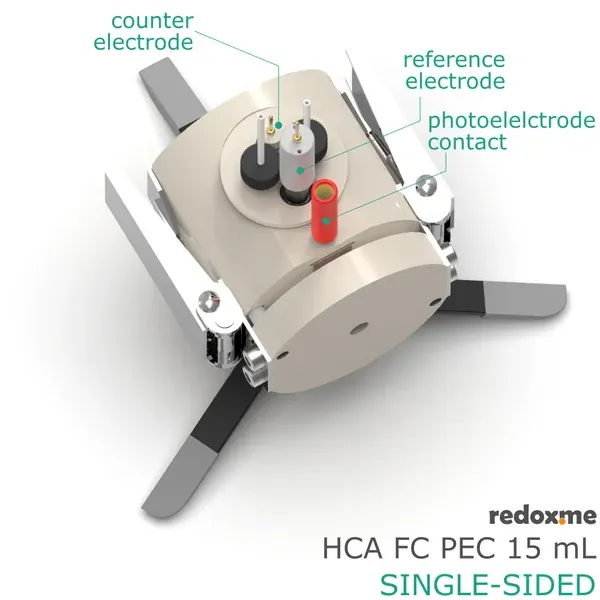

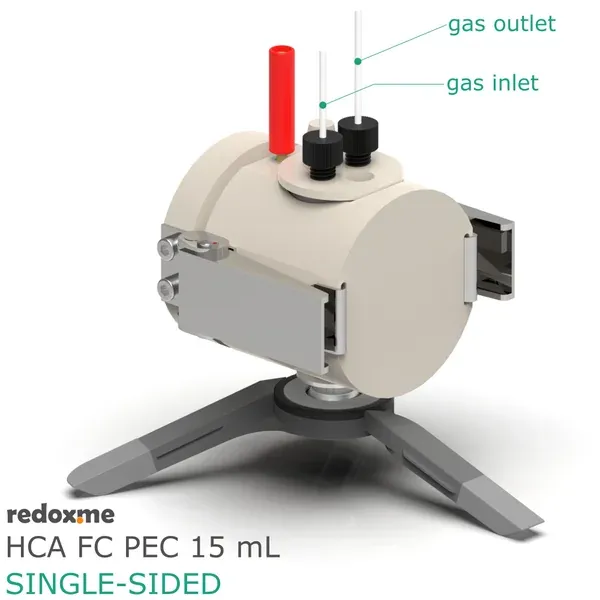

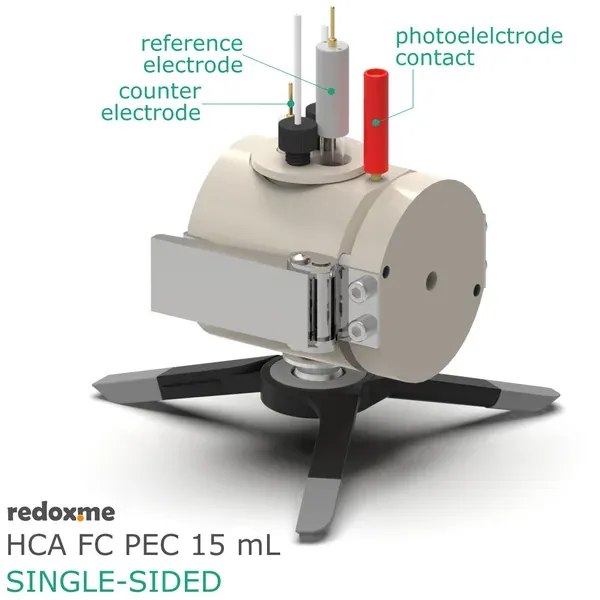

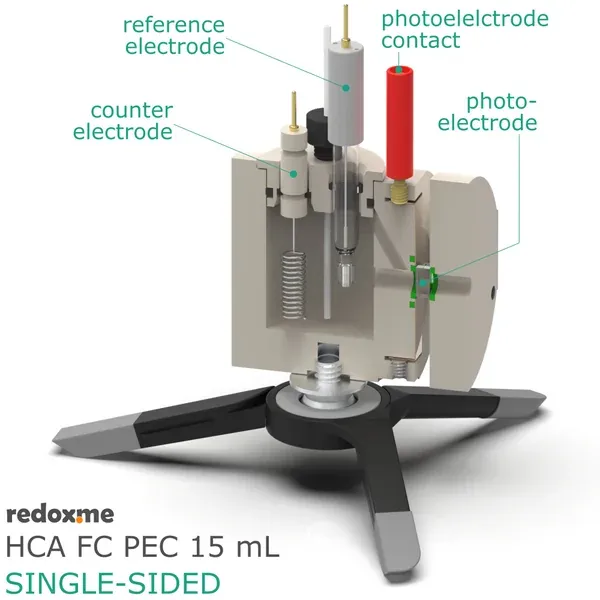

The electrical connection to the photo-anode is provided by a Copper foil contact facing the sample from the front. The Copper contact stays dry during the experiment as it is located out of the sample sealing O-Ring outer diameter. The cathode (counter electrode) and reference electrode are mounted in a lid. The cell elements are made of PEEK. It well fits aqueous (EPDM/FKM O-Rings) and organic solvent (FFKM O-Rings) electrolyte requirements. The construction is gas-tight having gas inlet and outlet.

Application note

This cell allows several approaches to perform measurements in 2- or 3-electrode setups. Typical applications include: basic photochemistry, photolytic water splitting, CO2 reduction, photoinduced charge separation and photocorrosion.

Product includes

• 1 x lid - 0001CPEMA
• 1 x chamber
• 1 x Copper contact
• 1 x sample mount with hook clamps
• 1 x tripod - 0031PSSMA
• 1 x plug
