Flexible customized electrochemical cells
Apria



Apria Systems has designed a series of flexible cell photoelectroreactors, offering a wide range of tailor-made models to adapt the equipment to the needs of their clients.
They always use cutting-edge LED technology as source of light. Remarkably, the emitted radiation intensity can be regulated, and the temperature of the LEDs is controlled through forced air convection. Exchangeable illumination lamps –plates- are available in case different kind of lights need to be used.
The electrodes can be totally customized, being possible to select their configuration (gap between electrodes, number of compartments, etc.), the active area, and the geometry of the electrodes. Moreover, we have a wide variety of exchangeable electrodes, allowing to test different electrode materials, when necessary.
Operation mode
Continuous, Recirculation
Configuration
Plate and frame
Max. Operation Pressure
1 bar
Max. Operation Temperature
50 ºC
Max. Operation Current Density
1000 A/m2
Flowrate
Customized
Number of Compartiments
1, 2, 3
Connection type
Barb fitting, Quick plug
Case material
Polypropylene (PP), Stainless steel
Sealing gaskets material
Ethylene propylene diene monomer (EPDM), Thermoplastic polyurethane (TPU), Viton®
Sent directly to Apria
Sent directly to Apria
Optional items
Automatization, Feeding tank, Magnetic stirring, Online measurements (pH, O2 , etc.), Power supply, Pumping, Temperature control
Electrode Type
Frame, mesh, perforated, solid
Electrode Geometry
Circular, Rectangular, Square
Electrodes material
Al, BDD, Carbon felt, IrO2, Ni, PbO2, Pt, PtOx, RuO2, SnO2, Stainless steel, Ti
Electrode Active Surface
Customized up to 100 cm2
Separation between electrodes
Customized up to 2 cm

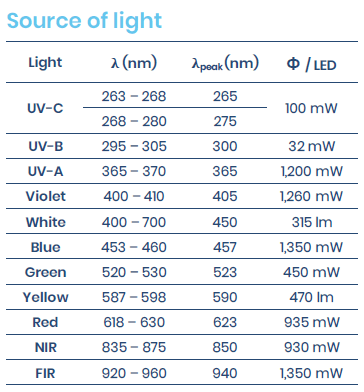

Source of light
See-images
Volume
Customized
