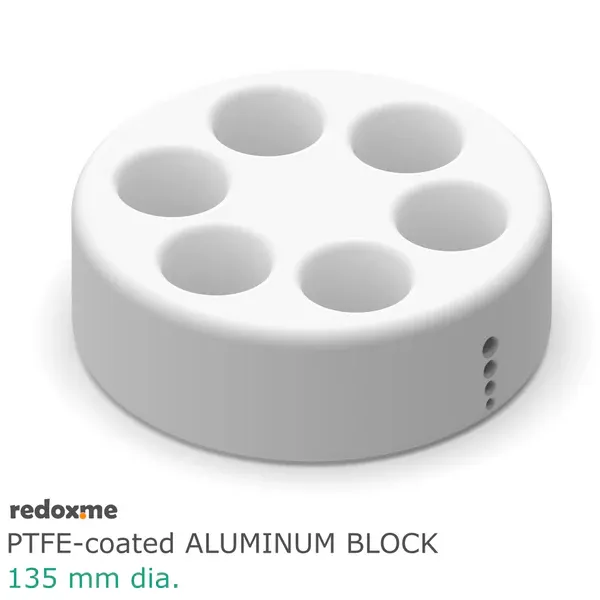

PTFE-coated Aluminum Block
Price: On Request
Description
This PTFE-coated Aluminum Block provides excellent thermal conductivity, while having chemically resistive surface (resistant to strong acid, strong alkali, aqua regain and various organic solvents). It provides a dry bath heating conditions to Electrosynthesis Reactors from series either A, B, C or D.

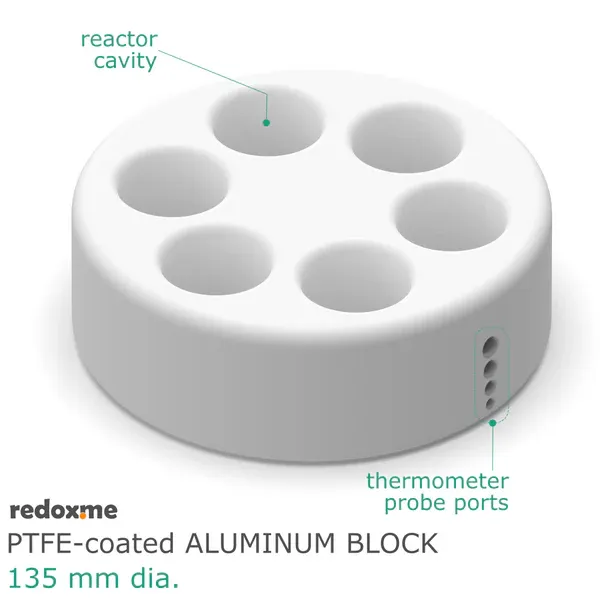

Application note This PTFE-coated Aluminum Block should be placed on a hot-plate or a hot-plate magnetic stirrer. The block has pre-drilled holes for a thermometer probe. Each of those holes is 120 mm deep and can accommodate probes with diameter of 2, 3, 4 and 5 mm.
Product includes 1 x PTFE-coated Aluminum Block
Specifications
General
Type
Block
Size

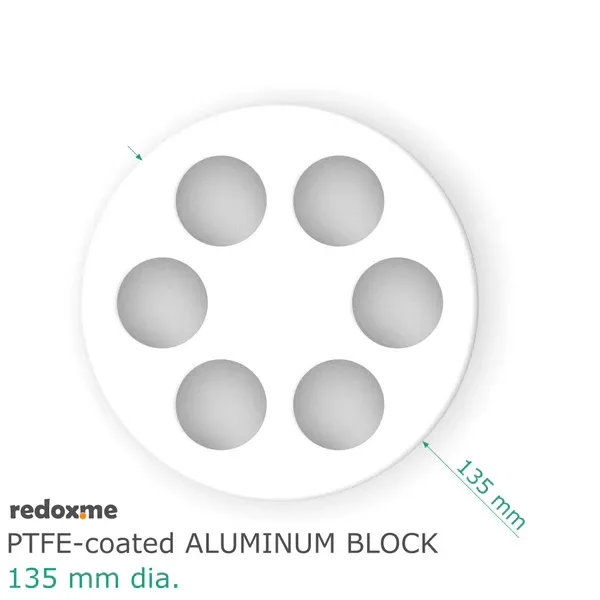

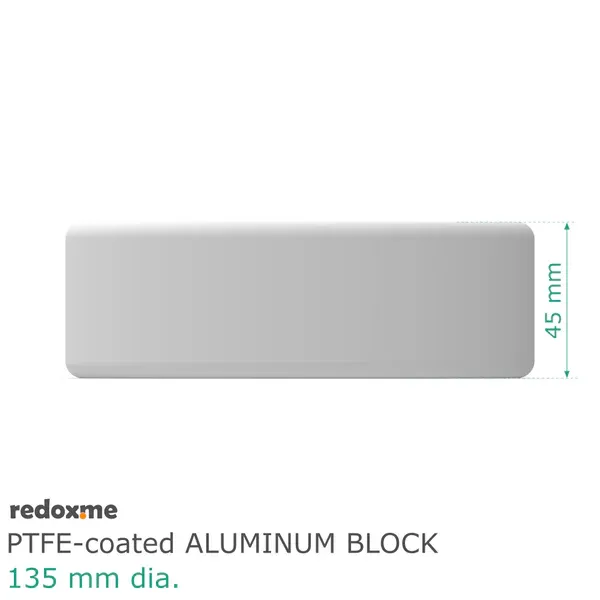

height: 45 mm, cavity depth: 40 mm, cavity diameter: 31 mm (A- and D-series), 27 mm (B-series) and 21 mm (C-series), block diameter: 135 mm
Weight
1.25 kg (6 cavities), 1.33 kg (5 cavities), 1.41 kg (4 cavities), 1.50 kg (3 cavities), 1.58 kg (2 cavities) and 1.66 kg (1 cavity)
Operating temperature
max. 260 deg C, min. -70 deg C
Accessories
Thermometer hole diameter
2.5 mm, 3.5 mm, 4.5 mm and 5.5 mm
