QCM EC BL 15 mL - Quartz Crystal Microbalance Electrochemical cell

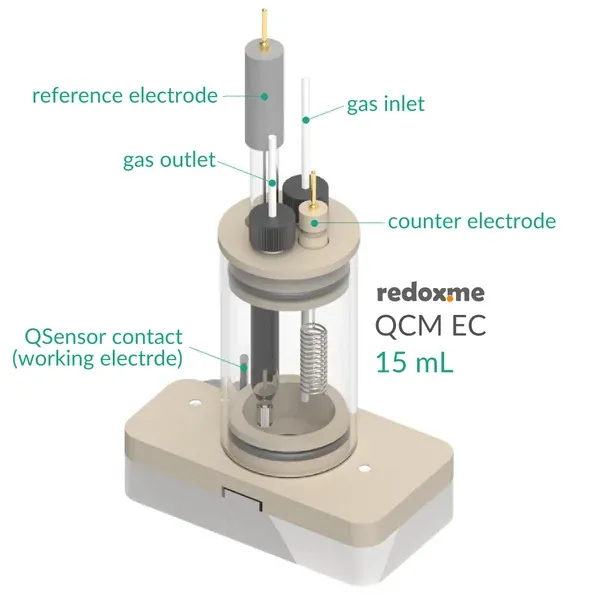

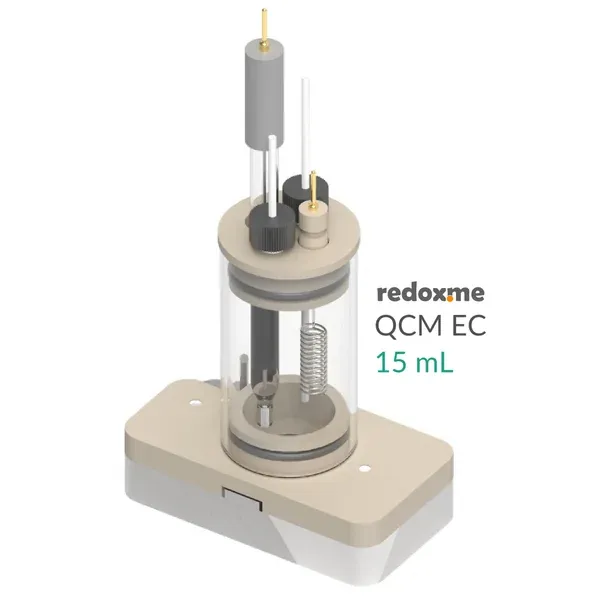

Stationary solution voltammetry cell for simultaneous electrochemical response and QCM-D sensing. Developed specifically for Biolin Scientific QSense Explorer and QSense Analyzer systems. The QCM EC cell is mounted on one of the QCM bases while counter and/or reference electrodes are mounted in the top casing (2- or 3-electrode setup).

A thin film of measured material is deposited directly on top of the QCM sensor (QSensor). Cell elements are glass and PEEK; compatible with aqueous (EPDM O-Rings) and organic (FFKM O-Rings) electrolytes. Gas-tight construction.

Application note

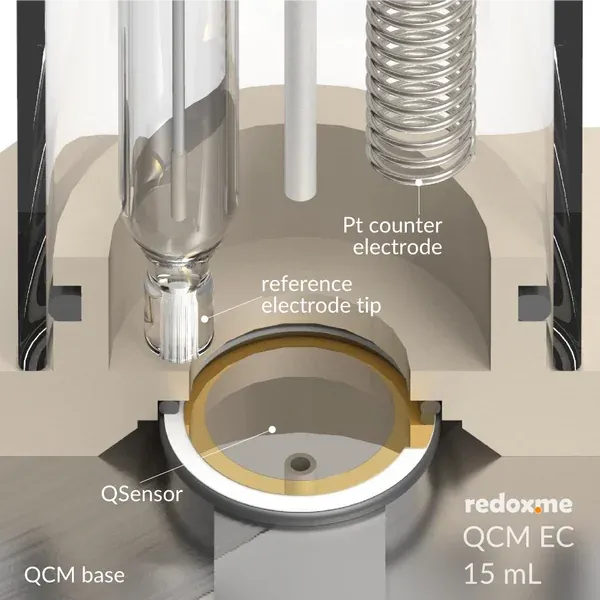

The reference electrode tip should be placed close to the QSensor surface (3-5 mm) to ensure negligible potential drop for low-current experiments. Various auxiliary electrodes are suitable including metal wire, metal foil, and graphite rod electrodes. Gas bubbling must be stopped prior to experiment.

Product includes

• 1 x lid (0001CPEMA)
• 1 x glass chamber (0002PGLMA)
• 1 x bottom casing (0014CPEMAMM)
• 1 x plug
