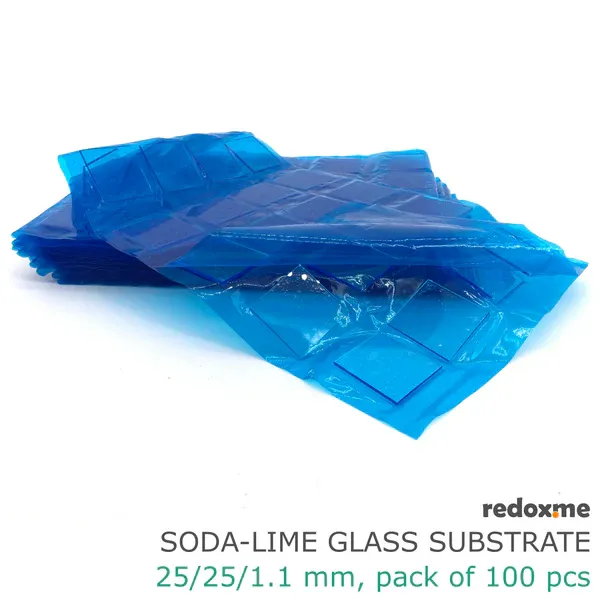

Soda-Lime Glass Substrate – pack of 100
Price: On Request
Description
SoSoda-lime glass is the most popular glass type used as an insulating substrate for thin/thick film deposition. Soda-lime glass is made by a floating molten glass on a bed of molten tin, assuring uniform thickness and very flat surfaces.
Application note Its smooth and non-reactive surface makes it excellent as a mechanical support for conductive electrode material.
Product includes 100 pcs of soda-lime glass substrates
Specifications
General
Type
Soda-lime glass substrate
Density
2.5 g/cm3
Chemical Stability
alkali/acid resistance, hydrolyzable
Accessories
Young's modulus
(70-75)·109 Pa
Vickers Hardness
1.35·103 Pa
Mohs hardness
6.5·103 Pa
Poisson's ratio
0.221±0.1
Thermal Conductivity
0.95±0.05W/MK at 20 oC
CLTE
0~100: 10.2
strain point
500 oC
annealing range
480-585 oC
softening point
585 oC or 720-740 oC
specific heat
1.10 J/g oC
dielectric constant
7.75·106H at 25 oC (dynamic)
resistivity
5·107 W at 1000 Hz
