Temperature Control Module - Pouch Cell Holder

Temperature Control Module for controlled battery testing conditions

The Temperature Control Module is designed to enhance accuracy and expand control parameters in battery characterisation, serving the needs of both research laboratories and industry. This thermoelectric cooling/heating system provides active temperature regulation for Wattcrafts Pouch Cell Holders, combining precision control with practical design to enable reliable isothermal testing across a wide range of applications.

Unlike conventional thermal chambers that rely on convective air cooling, the Temperature Control Module uses conductive heat transfer through a Peltier element system. This direct contact approach provides superior temperature stability, eliminating the significant temperature drift commonly observed during pulse testing. The result is experimental data of higher quality and consistency, particularly valuable for model parameterisation and degradation studies where temperature precision directly impacts data validity.

The module serves multiple testing scenarios. For simulation and model development work, it maintains stable isothermal conditions superior to thermal chambers, enabling separation of electrical and thermal characterisation. For thermal management validation, it can replicate pack-level thermal control behaviour, allowing evaluation of cell response under realistic thermal constraints. When laboratory resources are limited, the module enables temperature-controlled testing of individual cells without monopolising expensive thermal chamber capacity, particularly beneficial for testing at multiple temperatures or cell formation cycles.

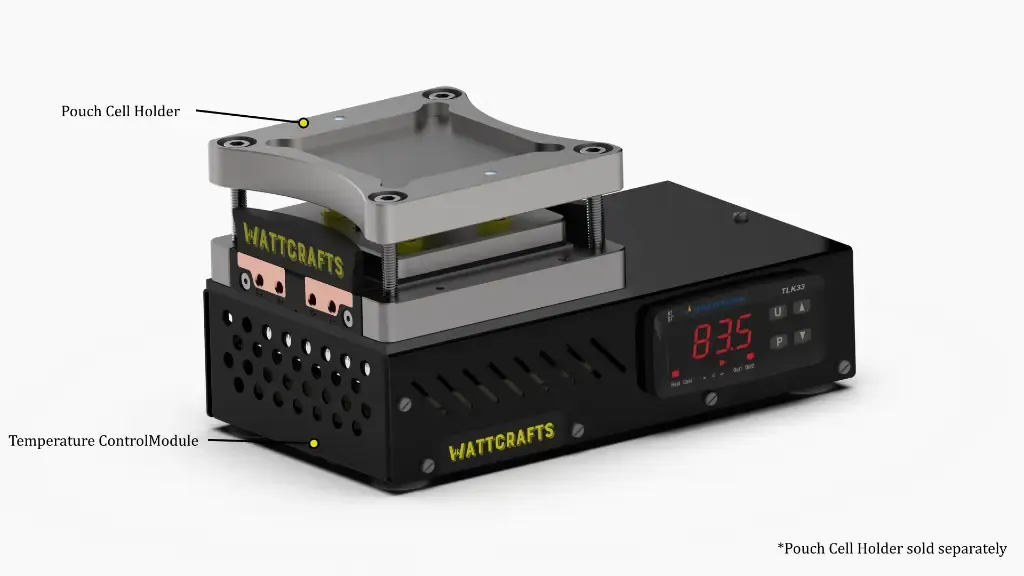

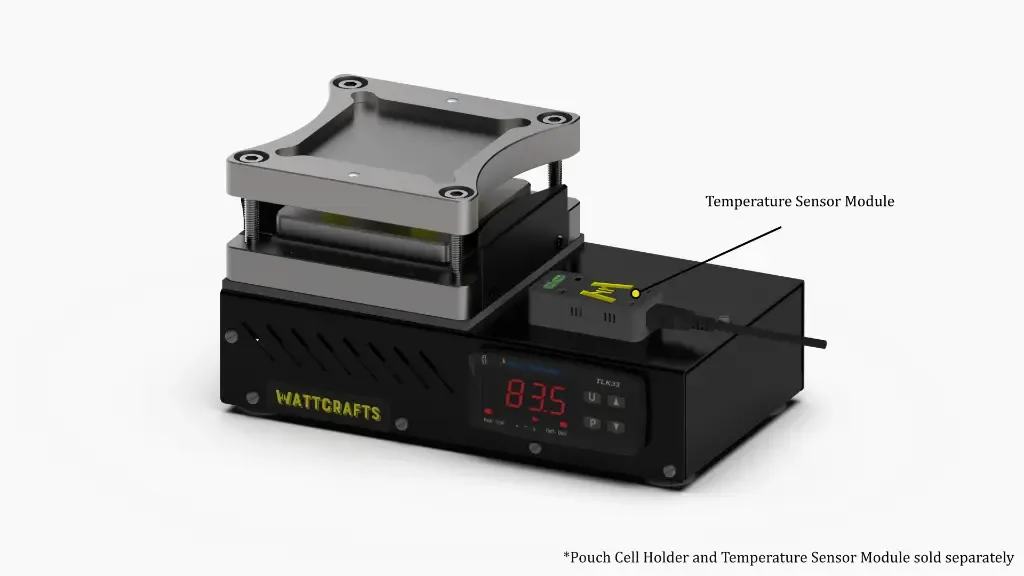

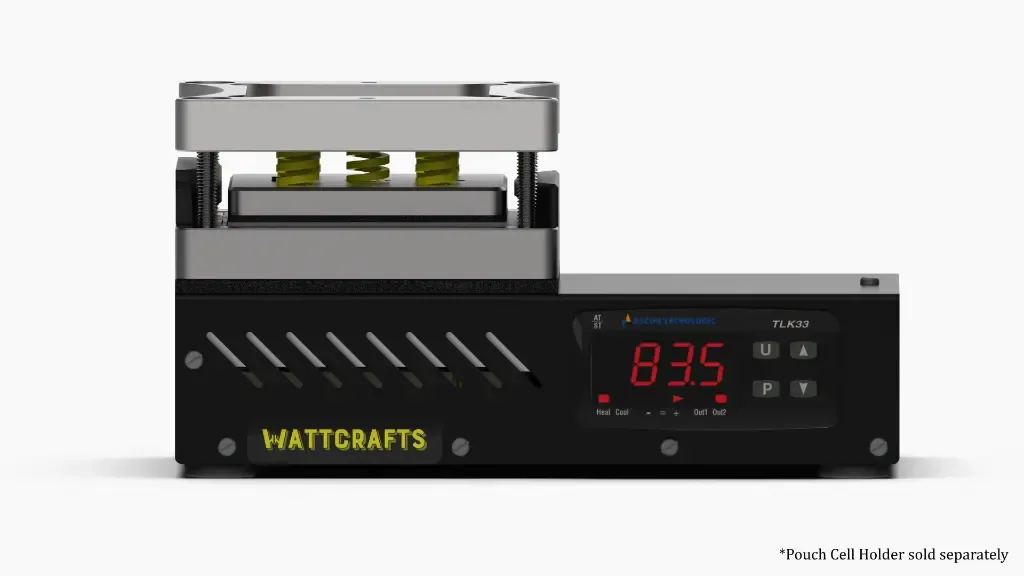

The compact design integrates a Peltier cooling element, efficient heat sink, and quiet fan operation suitable for laboratory environments. The integrated controller ensures simple and responsive temperature regulation in both heating and cooling modes. The module can be paired with the Temperature Sensor Module for continuous cell temperature measurements during testing.

Whether you're parameterising equivalent circuit models, conducting thermal characterisation, or evaluating temperature-dependent degradation, this Temperature Control Module provides reliable thermal management for your pouch cell testing programme. It's a practical addition for researchers and engineers requiring enhanced temperature control in battery characterisation.

Key Features

• Superior Temperature Stability: Conductive cooling via Peltier element delivers isothermal conditions that outperform convection chambers.
• Bidirectional Control: Active heating and cooling across ~10°C below ambient to 60°C, covering typical battery test temperature ranges.
• Fast Thermal Response: Rapid temperature transitions between setpoints enable efficient multi-temperature test protocols.
• Compatibility: Designed specifically for Wattcrafts Pouch Cell Holders with included mounting hardware for straightforward installation.

What's included

• Temperature Control Module
• 12 V DC power adapter
• Mounting hardware for Pouch Cell Holder base plate

Compatible with

• Pouch Cell Holder (Standard, A7)
