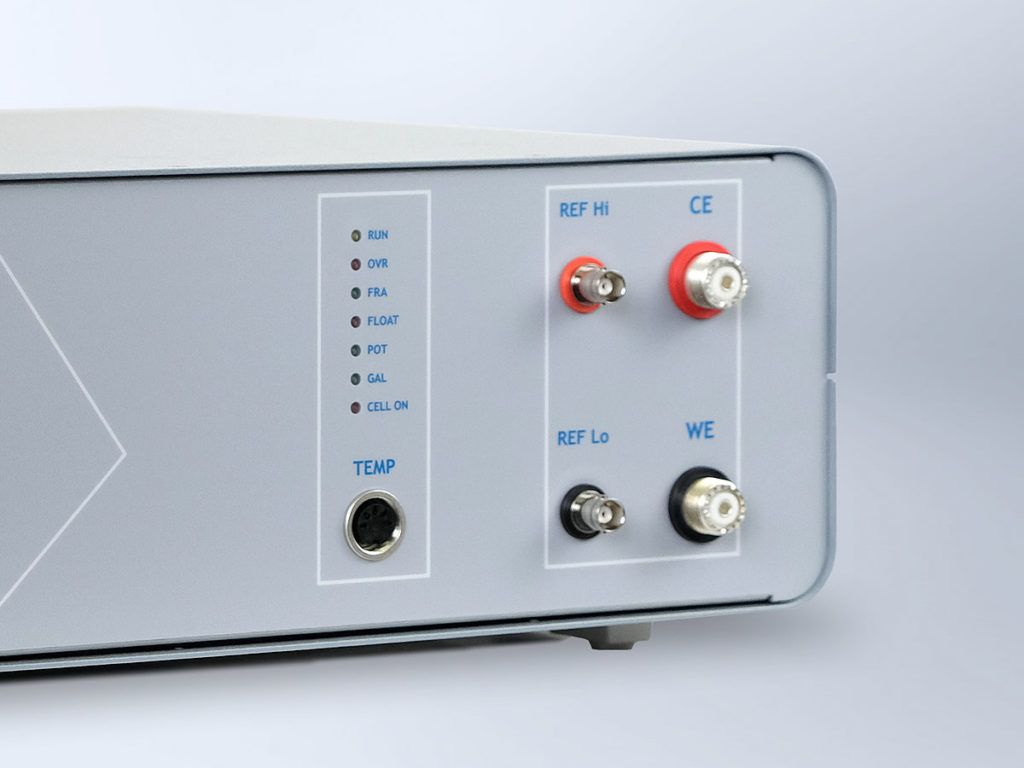

2550 High Current Potentiostat-Galvanostat + 2700 Z-Pulse (EIS)
Price: On Request
Description
Model 2550 is the big-brother of Model 2551 with increased maximum current capability on a single channel.
It is very popular for material science and batteries characterization, thanks to its stability and accuracy. New features make it much more attractive, among them positive feedback control, IR compensation and manual or automatic current ranging.
Specifications
General
Type
Potentiostat/Galvanostat
Dimensions - WxDxH / cm
Combination-dependent
Weight
Combination-dependent
PC Interface
USB
Power supply
115 to 230V ±10% AC/DC 50/60Hz
General Potentiostat
Form Factor
Benchtop / Lab
Channels
≥ 1
Cell connection
4 electrode, 3 electrode
ADC resolution
16 bit
Memory
EEPROM 64kB – SRAM 32kB
Input impedance
> 1 TΩ
Input Bias Current
< 10pA at 25°C
Digital-to-Analog Converters
16 bit
Input Capacitance
< 20 pF (1m cable)
Protection
Thermal, overload and short-circuit
Common Mode Rejection
> 60dB full frequency response
Port Output
8 external accessory
I/O port
8 optional
Potentiostatic
Max. Potential range (±) / V
10
Voltage resolution (output)
100 μV
Min. Voltage resolution (output) / μV
100
Accuracy voltage (output)
± 0,2% & 0,1% (conversion at Full Scale)
Compliance voltage / ±V
16
Voltage Ranges
± 10V max or ± 50V max
Slew rate
0,01mV/s to 10V/s
iR Compensation Limits
2Ω to 100MΩ (depending on current range)
Potential Range Required (±) / V
±1 V or higher, ±4 V or higher, ±10 V or higher
Required Compliance Voltage
≥ 15 V, ≥ 10 V, ≥ 5 V, ≥ 2 V
Galvanostatic
Max. current (output) / A
±5 A
Current range
9 ranges, ±100 nA to ±10 A
Number of current ranges
9
Current Resolution (output)
From 100pA at 100nA F.S. to 1mA at 10A F.S.
Min. Current Resolution (output) / pA
100
Current Accuracy (output)
< 1% of Full Scale in 100nA to 1μA ranges < 0,25% of Full Scale in 10μA to 1A ranges < 5% of Full Scale in 10A range
Max. Current
≥ 1 A, ≥ 250 mA, ≥ 100 mA, ≥ 1 mA
Impedance
EIS Capability
Yes
EIS frequency range
10 µHz to 10 MHz
Max. EIS frequency range / MHz
10
Min. EIS frequency range / µHz
10
Noise
±0,1dB if < 100kHz ±0,15dB if < 5MHz ±0,3dB if ≤ 10MHz
Rise & fall time
8 ns
Ocershoot
< 1%
Duty cycle
0,01% to 99,99%
Assimetry
< 0% of the period + 5ns @ 50% duty cycle
Jitter (RMS)
< 50ps
Max. EIS Frequency range
≥ 10 MHz, ≥ 5 MHz, ≥ 1 MHz, ≥ 1 kHz
Min. EIS Frequency range
≤ 100 Hz, ≤ 10 Hz, 10 mHz
