Electrosynthesis Multiple Reactor Set, B-series
Price: On Request
Description

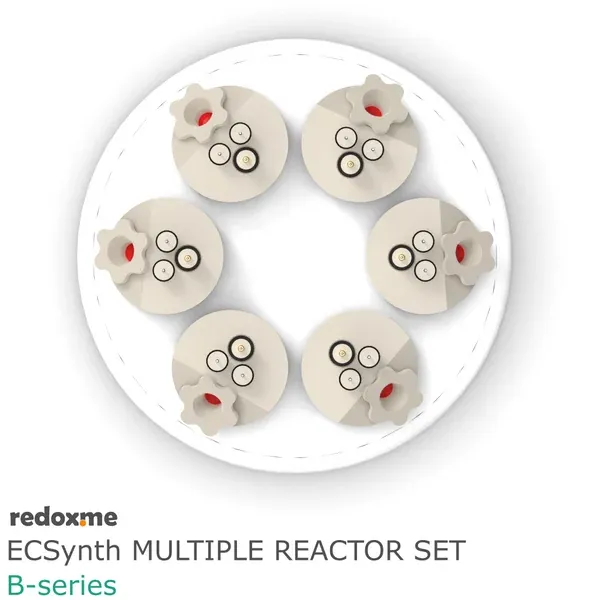

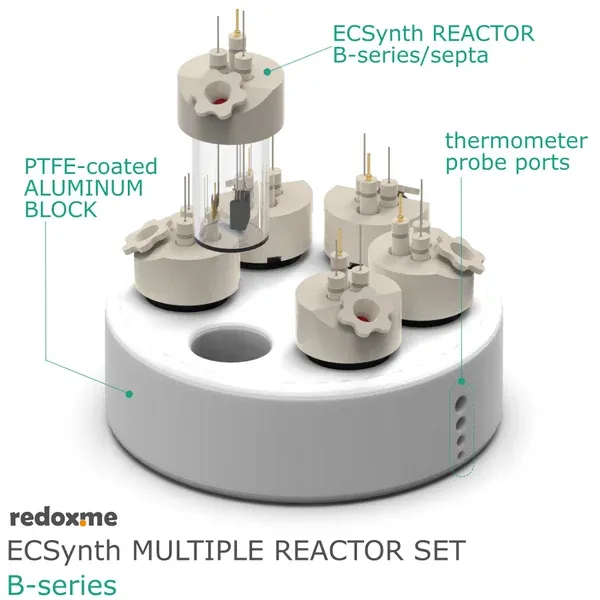

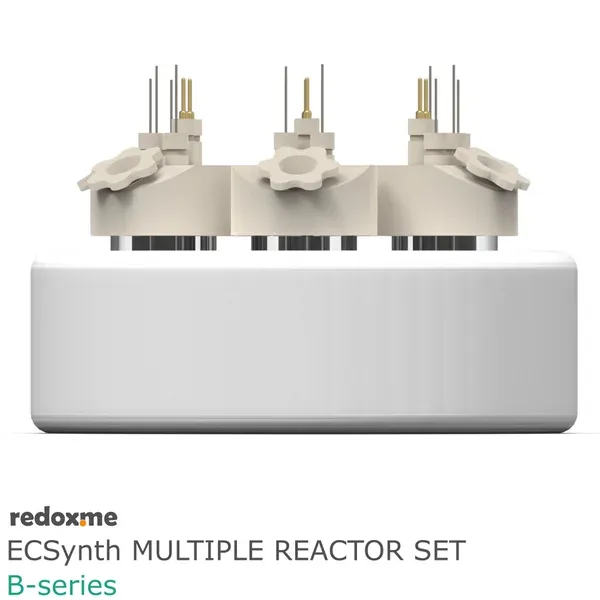

Electrosynthesis Multiple Reactor Set consists of a selected number of Electrosynthesis Reactors from B-series or B-series/septa and a PTFE-coated Aluminum Block with a corresponding number of cavities.
Application note This Electrosynthesis Multiple Reactor Set is suitable for both constant current and constant potential electrolysis in aqueous or organic media. The assembled set should be placed on a hot-plate or a hot-plate magnetic stirrer. The heating block has pre-drilled holes for a thermometer probe. Each of those holes is 120 mm deep and can accommodate probes with diameter of 2, 3, 4 and 5 mm. Electrodes are not included in the set, so they need to be added to the quotation separately.
Product includes
- 1 x PTFE-coated Aluminum Block B-series
- Selected number of Electrosynthesis Reactors from B-series or B-series/septa
Specifications
Reactor
Electrode plug diameter (reactor)
6 mm
Membrane diameter
9 mm
Maximum electrolyte volume per reactor
18.5 mL
Outer diameter of the glass chamber
26 mm
Effective height of the glass chamber
43.7 mm
Heating block height
45 mm
Heating block cavity depth
40 mm
Heating block cavity diameter
27 mm
Heating block diameter
135 mm
