Description

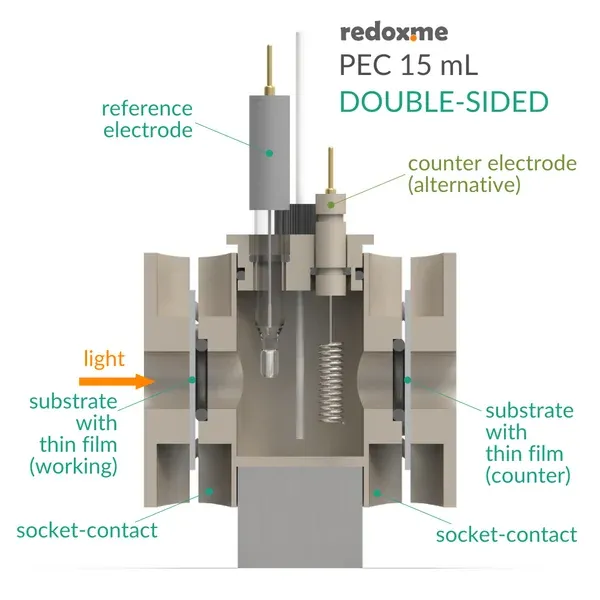

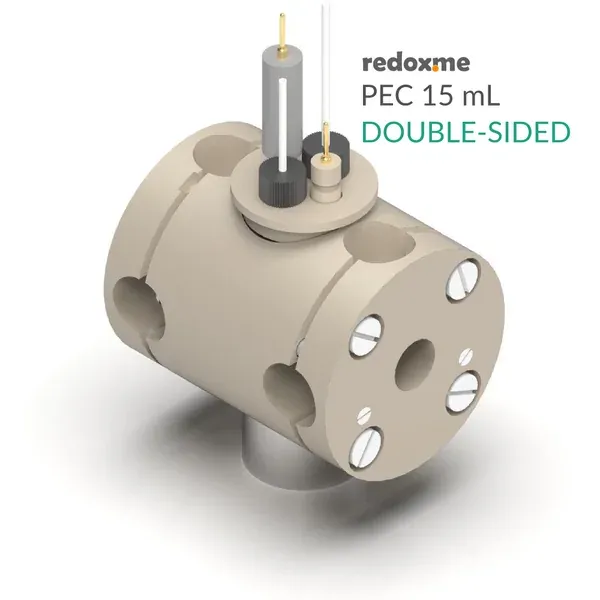

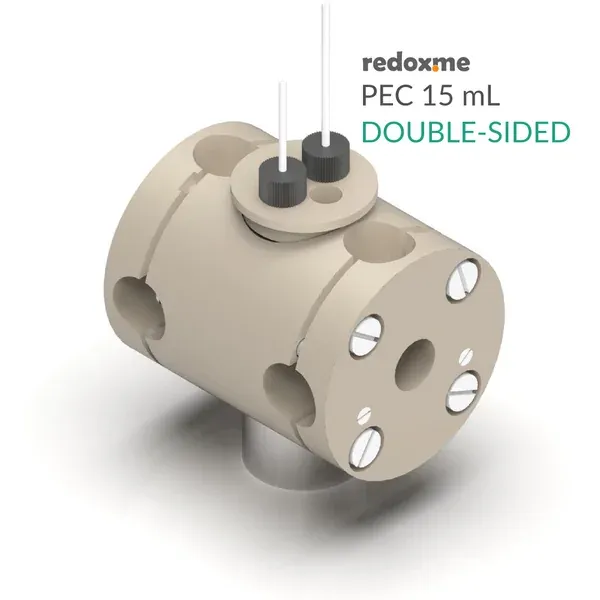

This is a horizontally mounted, single compartment photo-electrochemical cell with screw mount, used to simultaneously investigate thin film photo-anodes and cathodes from both sides (double-sided). It is designed to investigate performance of a thin film photo-anode deposited on a rigid or flexible transparent substrate (typically fused quartz glass). The cathode (counter electrode) is either mounted in a top casing or attached on the other side of the cell as a thin film deposited on rigid or flexible substrate. The reference electrode is mounted in a top casing.

The cell elements are made of PEEK. It well fits aqueous (FKM/EPDM O-Rings) and organic solvent (FFKM O-Rings) electrolyte requirements. The construction is gas-tight having gas inlet and outlet, which can be used to bubble the solution and evacuate gases from the chamber.

Application note

The thin films of interest deposited on a transparent glass or plastic foil (counter electrode may be deposited on an opaque substrate) are installed in the screw mounts, facing the cell chamber.

Product includes

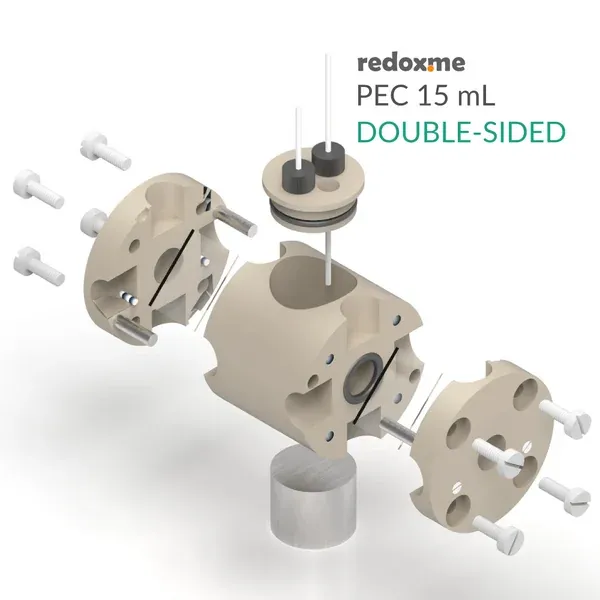

• 1 x lid - 0001CPEMA
• 1 x chamber - 0038CPEMASM
• 2 x sample mount - 0035CPEMASM
• 1 x pillar - 0031PSSMA
• 2 x set of screws - 0032PNYCM
• 2 x plug
