ISX-3

Key Features

one-channel compact impedance analyzer
second multiplexed channel (ISX-3mini default, ISX-3 optional)
2, 3, and 4-port measurements
single sine excitation at a wide frequency range of 100 mHz ... 10 MHz (optional: 40 MHz or 100 MHz)
up to 0.01% base accuracy
measurement speed up 0.5 ms/point
compatibility to test adapters for electrical components, foils, thin films, and liquids
removal of parasitics via open-short-load compensation
intuitive software with data visualization in spectral and time trace view
full speed USB and Ethernet interface
Sciospec COMInterface for external communication
included LCR View
Optional AddOns like Multiplexers and Battery available

Typical Fields of Applications

quality inspection and production
research, development, and prototyping
maintenance, repairing, and troubleshooting
calibration, metrology, and education
special applications in industry and engineering (high-frequency engineering, medical engineering, automotive, energy engineering, etc.)

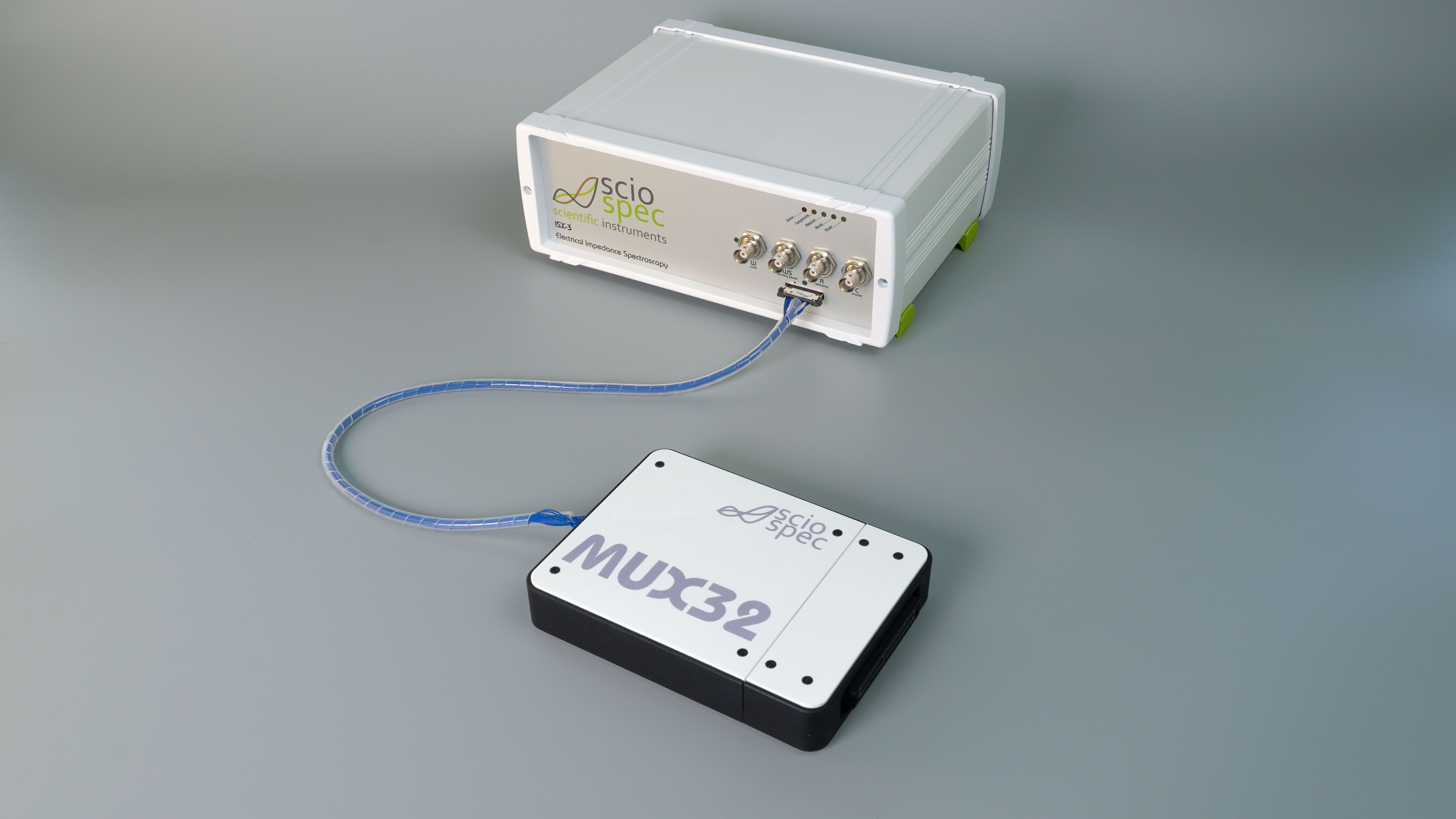

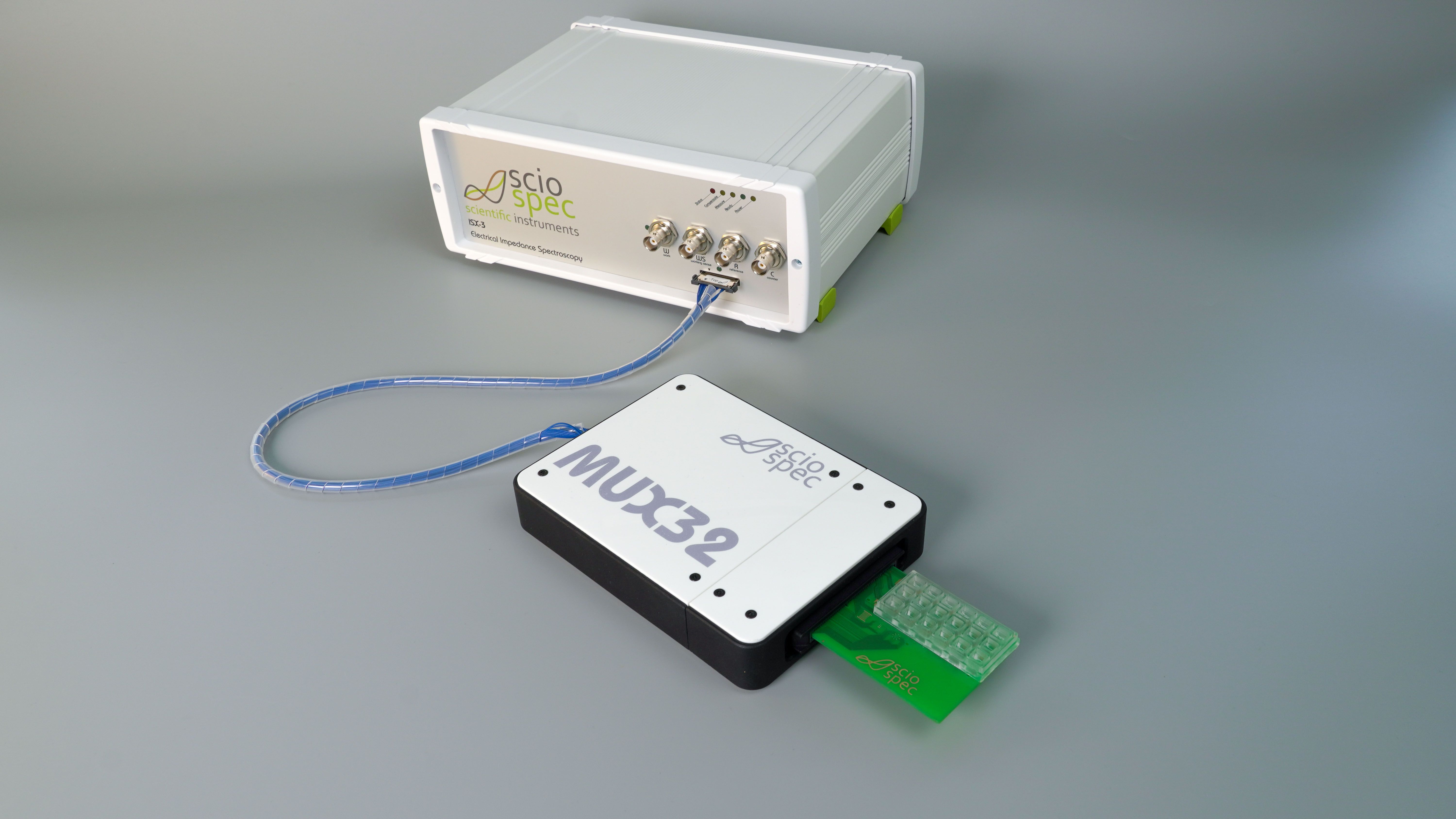

Dimensions - WxDxH / cm	24.867 x 19.32 x 9.71 (+ 11.56 x 15.63 x 35.3 with MUX32 or + 11.56 x 15.63 x 48.7 with MUX64)
Weight / kg	2.5
Storage conditions	temperature range: -25 °C … 80 °C, relative humidity: ≤ 80% (noncondensing), The temperature gradient should not exceed 1 K/min to reach operating conditions.

Max. Potential range (±) / V	1
Voltage resolution (output)	< 0.008%
Precision of measuremed potential	uncalibrated gain error 1% max., uncalibrated offset error 2%, max. electrometer amplifier input bias current: ±1.5 pA typ. (±50 pA max.), uncalibrated gain error: 0.1% max. for ± 10 mA range, 0.1% max. for ± 100 μA range, 1% max. for ± 1 μA range, 5% max. for ± 10 nA range, uncalibrated offset error 2% max., current amplifier input bias current: ±10 pA typ. (± 1 nA max.)

Current range	4 ranges, ±100 μA to ±10 mA
Current Resolution (output)	< 0.008%

EIS frequency range	10 µHz to 10 MHz
Max. EIS frequency range / MHz	10, 40, 100
Min. EIS frequency range / µHz	100000
Accuracy Contour Plot	See images
AC frequency resolution	f < 10 kHz: < 6 mHz, 10 kHz ≤ f ≤ 100 kHz: < 24 mHz, f > 100 kHz: < 117 mHz
AC frequency precision	±100 ppm (@ 25 °C) additional max. ±10 ppm over specified temperature range (e.g., at 0 °C) additional ±5 ppm during first year
Potentiostatic EIS Amplitude	10 mV ... 1 V (peak amplitude)
Potentiostatic EIS Amplitude Resolution	0.1 mV
Potentiostatic EIS Precision	±1% typ. (±8% max.)
Galvanostatic EIS Amplitude	10 μA ... 10 mA (peak amplitude)
Galvanostatic EIS Amplitude Resolution	1 μA
Galvanostatic EIS Precision	±1% typ. (±8% max.)
EIS Capability	Yes
