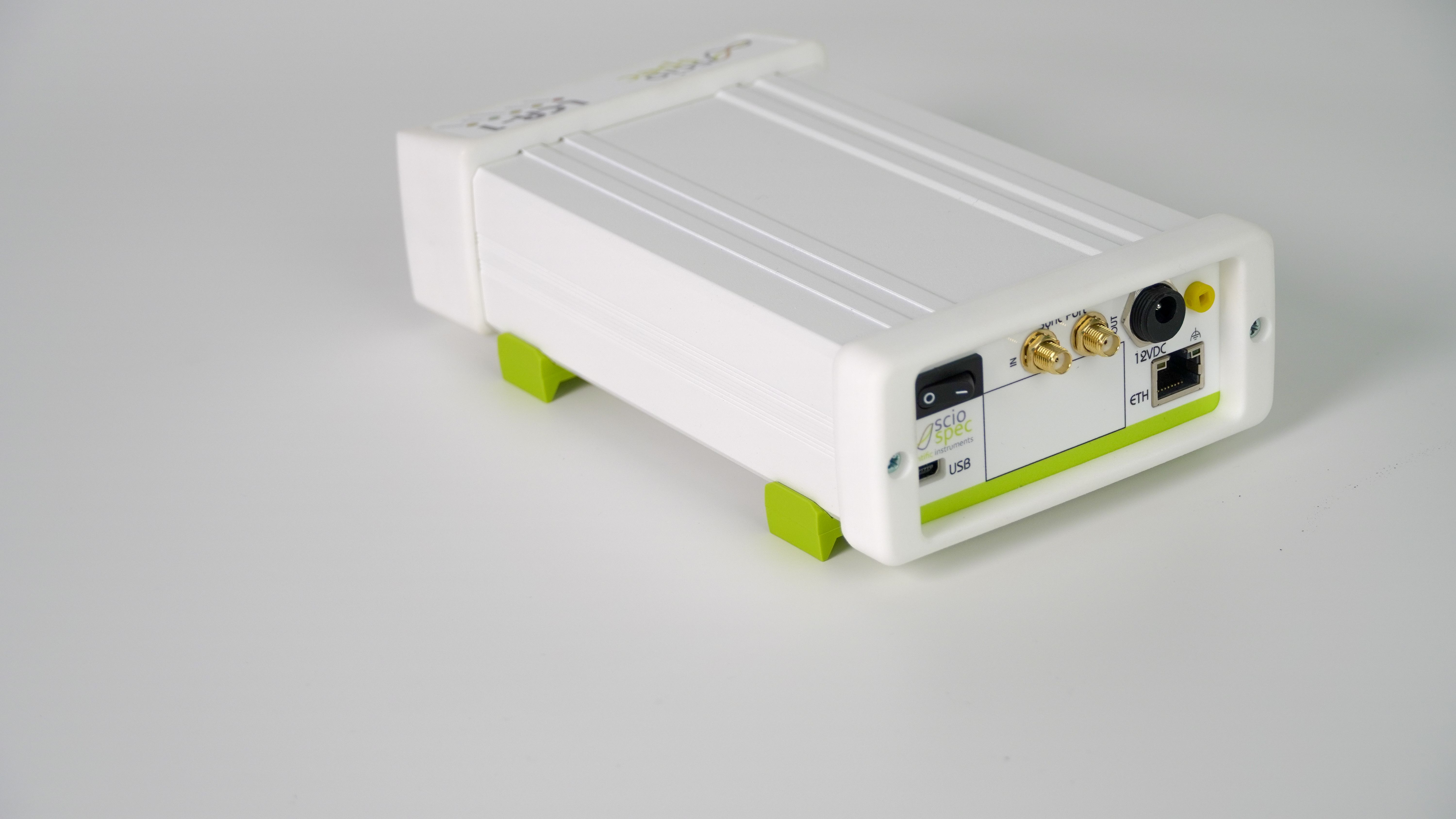

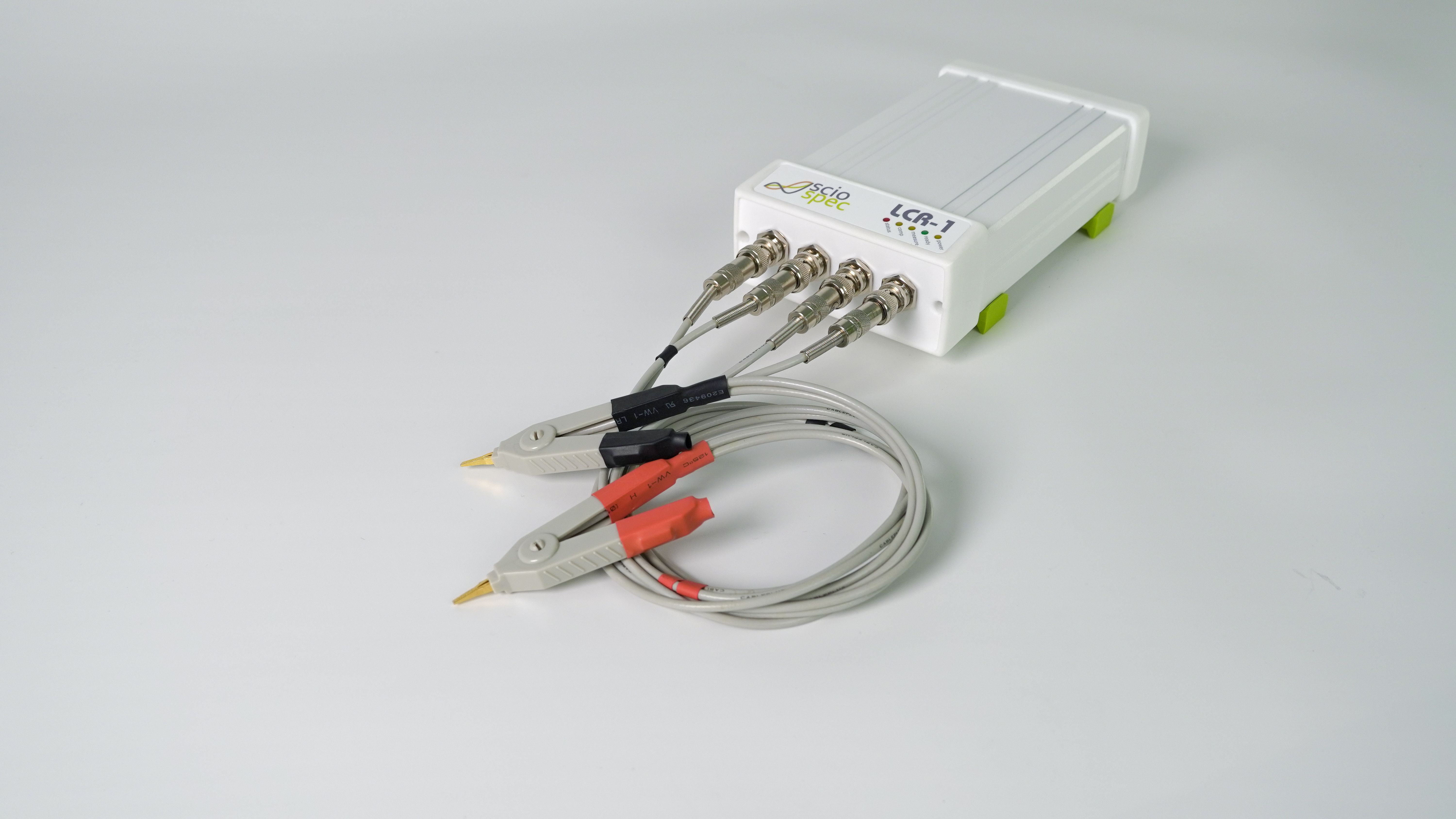

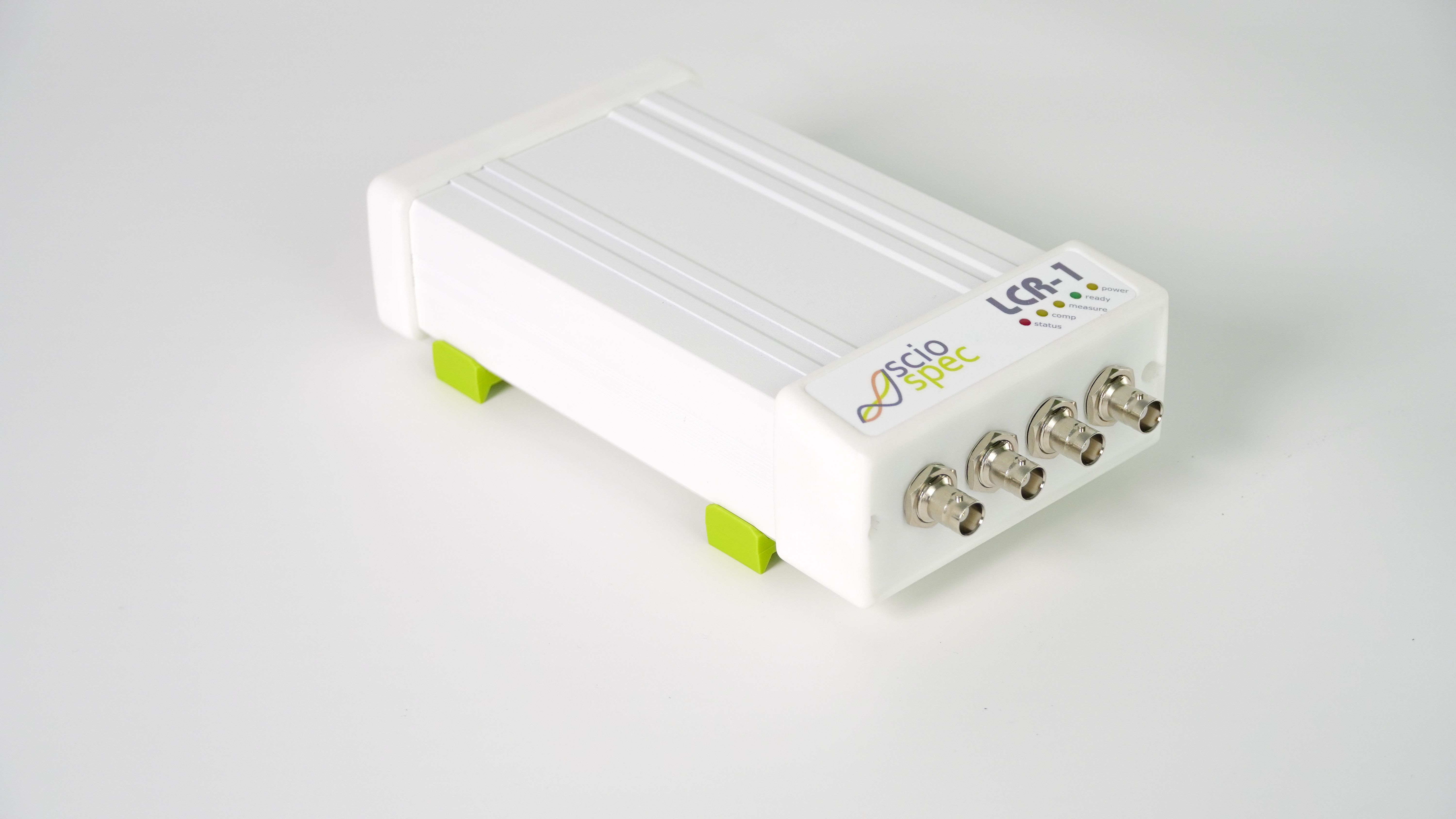

LCR-1

Description

Electrical component analysis has never been easier. Based on the same technology as our industry leading impedance analyzers the LCR-1 combines next-level performance with the simplicity of an LCR meter. In terms of range, accuracy and speed the LCR-1 sees eye to eye with competing high-end devices while maintaining a compact formfactor, simple setup and ease of use previously unseen in this class.

Unlock the power of component analysis with the LCR-1!

Price: On request

Specifications

Accessories

Type	LCR Meter / Impedance Meter

General Potentiostat

Form Factor	Benchtop / Lab
Channels	≥ 1
Cell connection	≥4 electrode, ≥ 3 electrode
PC interface	USB
Power supply	12 V DC (typ.), 15 W (max.), connector DC jack (type: Switchcraft PN: 712A)

Request Quote / Info

Your request will be sent to Sciospec via email.

Name *

Surname *

Email *

Country *

Company Name *

Message to Sciospec (optional)

I agree to the processing of my data according to the Privacy Policy *

Subscribe to updates and marketing communications (optional)

Timing accuracy

1% accuracy over specified temperature range

Operation conditions

temperature range: 0 °C ... 40°C, relative humidity: ≤ 80% (noncondensing), altitude: 0 m ... 3000 m

General

Dimensions - WxDxH / cm	11.2 x 21.2 x 5.8
Weight / kg	1
Storage conditions	temperature range: -25 °C … 80 °C, relative humidity: ≤ 80% (noncondensing), The temperature gradient should not exceed 1 K/min to reach operating conditions.

Potentiostatic

Max. Potential range (±) / V	1
Voltage resolution (output)	< 0.008%
Precision of measuremed potential	uncalibrated gain error 1% max., uncalibrated offset error 2%, max. electrometer amplifier input bias current: ±1.5 pA typ. (±50 pA max.)

Galvanostatic

Current range	4 ranges, ±100 μA to ±10 mA
Current Resolution (output)	< 0.008%

Impedance

EIS Capability	Yes
EIS frequency range	100 mHz to 1 MHz
Max. EIS frequency range / MHz	1
Min. EIS frequency range / µHz	100000
Accuracy Contour Plot	See images
AC frequency resolution	f < 10 kHz: < 6 mHz, 10 kHz ≤ f ≤ 100 kHz: < 24 mHz, f > 100 kHz: < 117 mHz
AC frequency precision	±100 ppm (@ 25 °C) additional max. ±10 ppm over specified temperature range (e.g., at 0 °C) additional ±5 ppm during first year
Potentiostatic EIS Amplitude	10 mV ... 1 V (peak amplitude)
Potentiostatic EIS Amplitude Resolution	0.1 mV
Potentiostatic EIS Precision	±1% typ. (±8% max.)
Galvanostatic EIS Amplitude	10 μA ... 10 mA (peak amplitude)
Galvanostatic EIS Amplitude Resolution	1 μA
Galvanostatic EIS Precision	±1% typ. (±8% max.)
