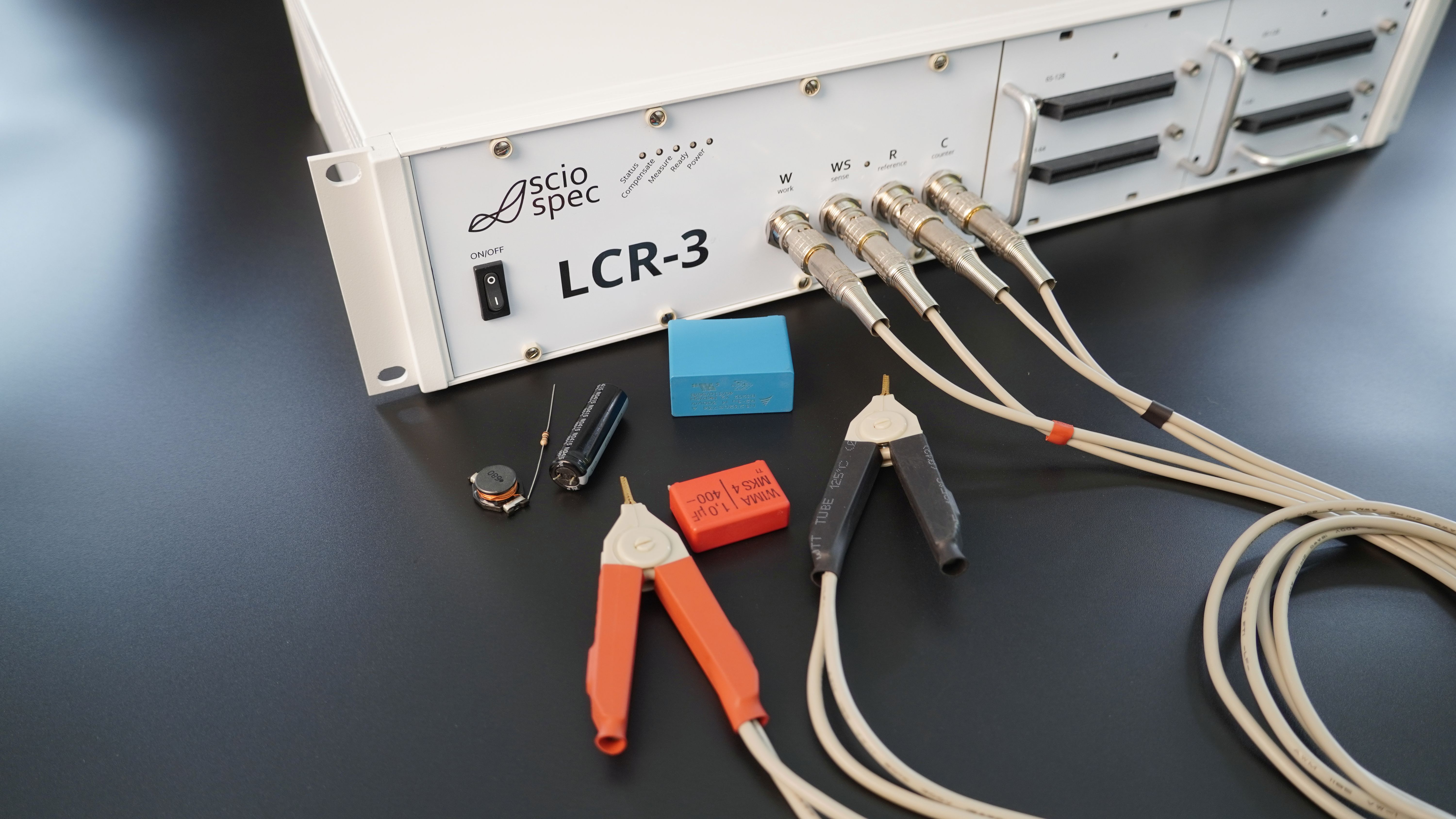

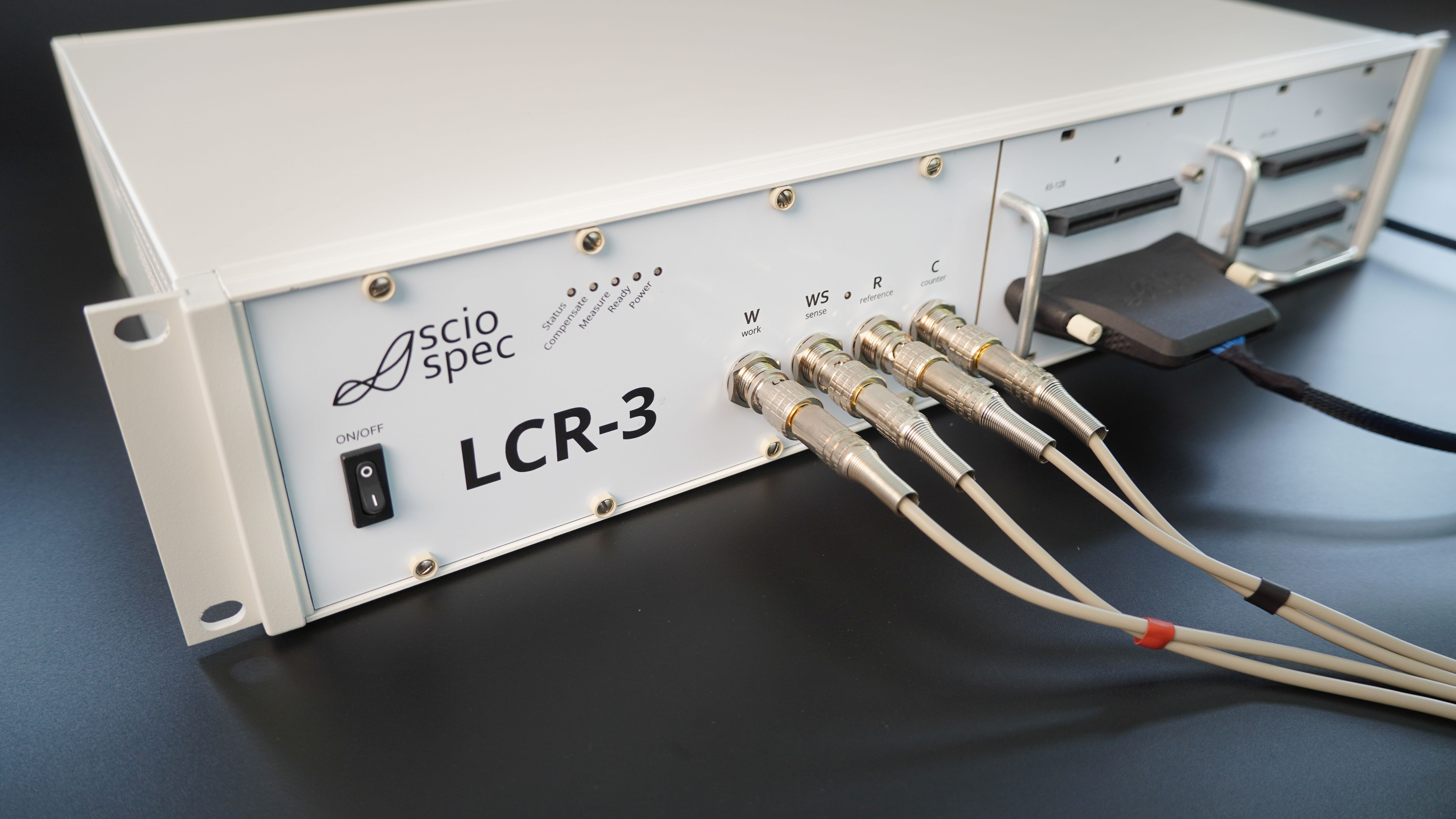

LCR-3

Unleashing Performance for Labs and Production Lines Alike

The Sciospec LCR-3 is your answer to professional-grade LCR measurements with a scalable, automation-ready design. Built on the same high-precision core as the compact LCR-1, the LCR-3 takes things further with a larger, configurable enclosure, optional integrated multiplexers, and native support for automated, multi-object testing. From quality control on production lines to advanced R&D setups, the LCR-3 delivers exceptional performance and unmatched adaptability.

Form Factor	Benchtop / Lab
Channels	≥ 1, ≥ 32, ≥ 64, 128, ≥ 4, ≥ 2
Cell connection	≥4 electrode, ≥ 3 electrode
PC interface	USB
Power supply	12 V DC (typ.)

Dimensions - WxDxH / cm	48.5 x 25.5 x 9
Storage conditions	temperature range: -25 °C … 80 °C, relative humidity: ≤ 80% (noncondensing), The temperature gradient should not exceed 1 K/min to reach operating conditions.

Max. Potential range (±) / V	1
Voltage resolution (output)	< 0.008%
Precision of measuremed potential	uncalibrated gain error 1% max., uncalibrated offset error 2%, max. electrometer amplifier input bias current: ±1.5 pA typ. (±50 pA max.)

Current range	4 ranges, ±100 μA to ±10 mA
Current Resolution (output)	< 0.008%

EIS Capability	Yes
EIS frequency range	10 µHz to 10 MHz
Max. EIS frequency range / MHz	10, 40
Min. EIS frequency range / µHz	100000
Accuracy Contour Plot	See images
AC frequency resolution	f < 10 kHz: < 6 mHz, 10 kHz ≤ f ≤ 100 kHz: < 24 mHz, f > 100 kHz: < 117 mHz
AC frequency precision	±100 ppm (@ 25 °C) additional max. ±10 ppm over specified temperature range (e.g., at 0 °C) additional ±5 ppm during first year
Potentiostatic EIS Amplitude	10 mV ... 1 V (peak amplitude)
Potentiostatic EIS Amplitude Resolution	0.1 mV
Potentiostatic EIS Precision	±1% typ. (±8% max.)
Galvanostatic EIS Amplitude	10 μA ... 10 mA (peak amplitude)
Galvanostatic EIS Amplitude Resolution	1 μA
Galvanostatic EIS Precision	±1% typ. (±8% max.)
