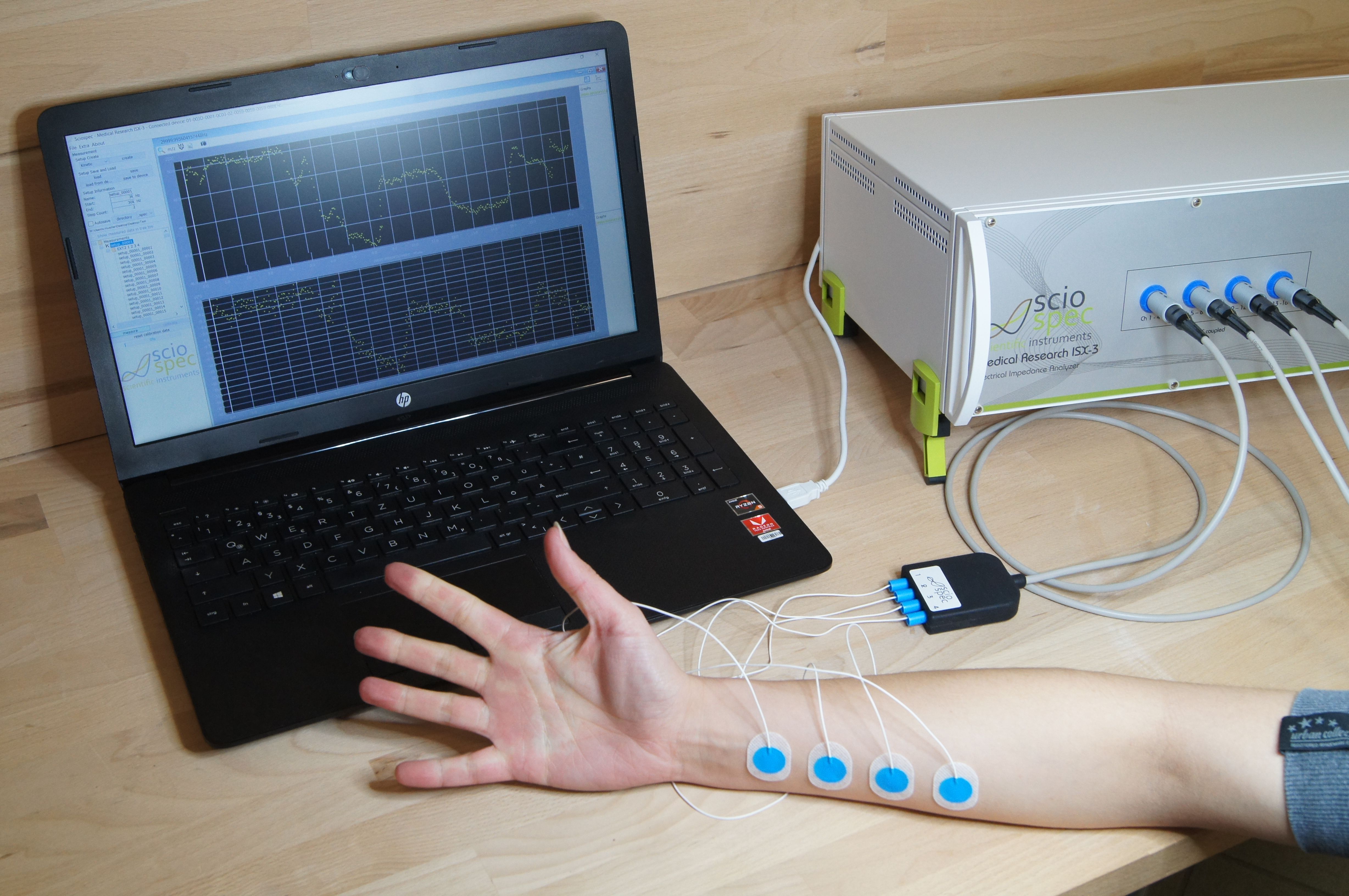

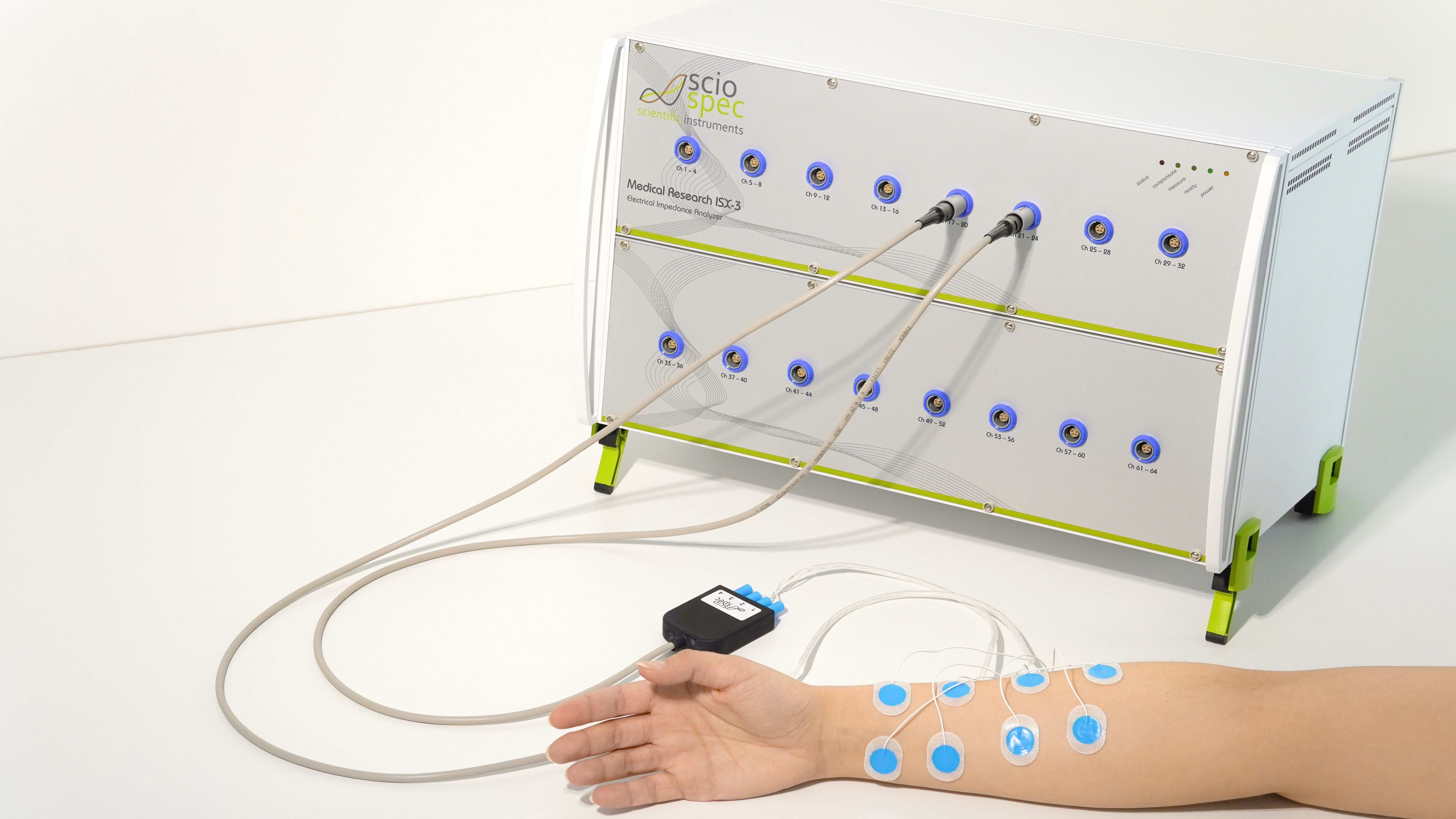

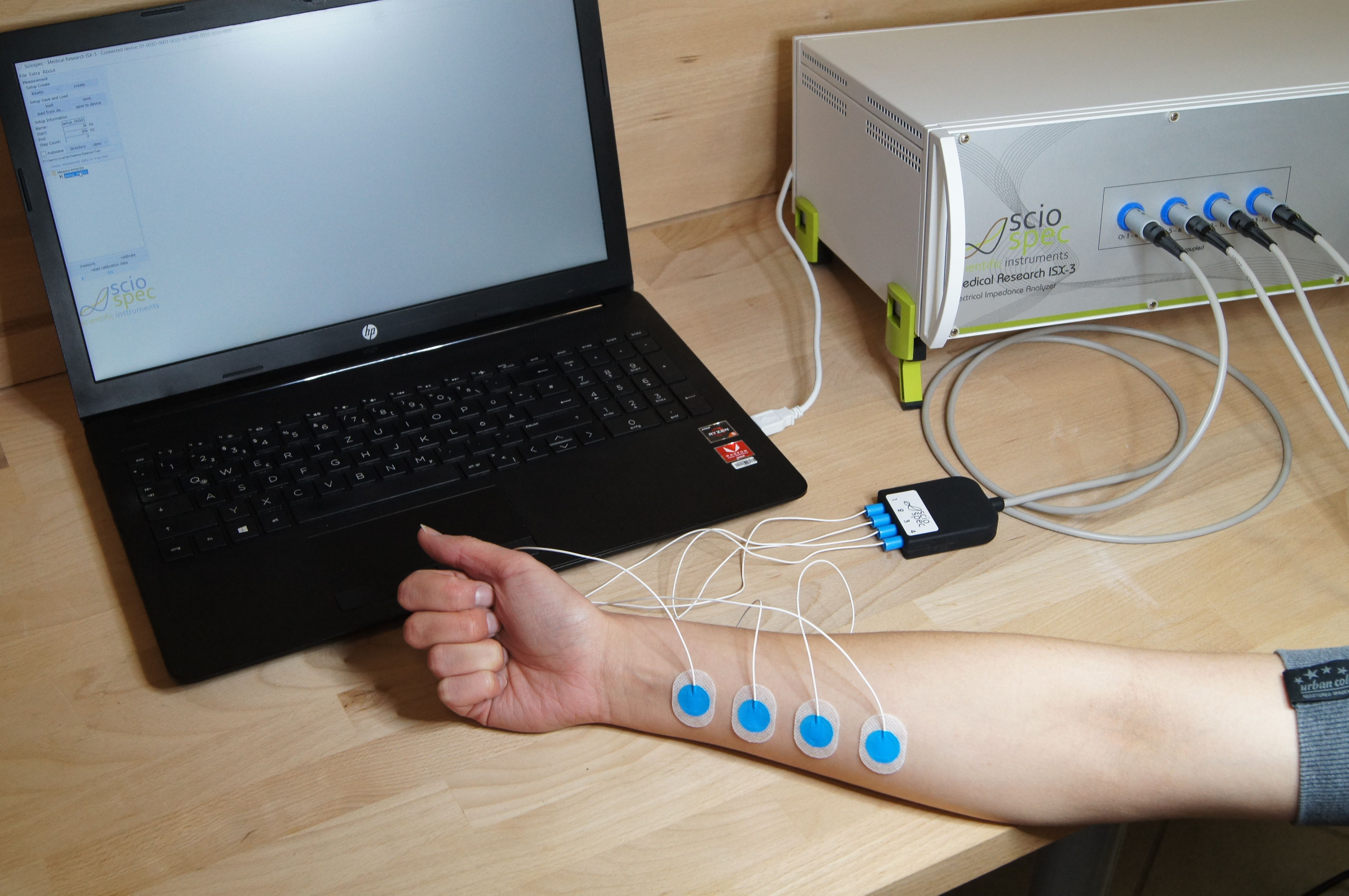

You want to use impedance spectroscopy in a medical research application? You like it simple, precise and fast and you don't want to worry about patient safety? Then check out the Medical Research ISX-3 impedance analyzer.

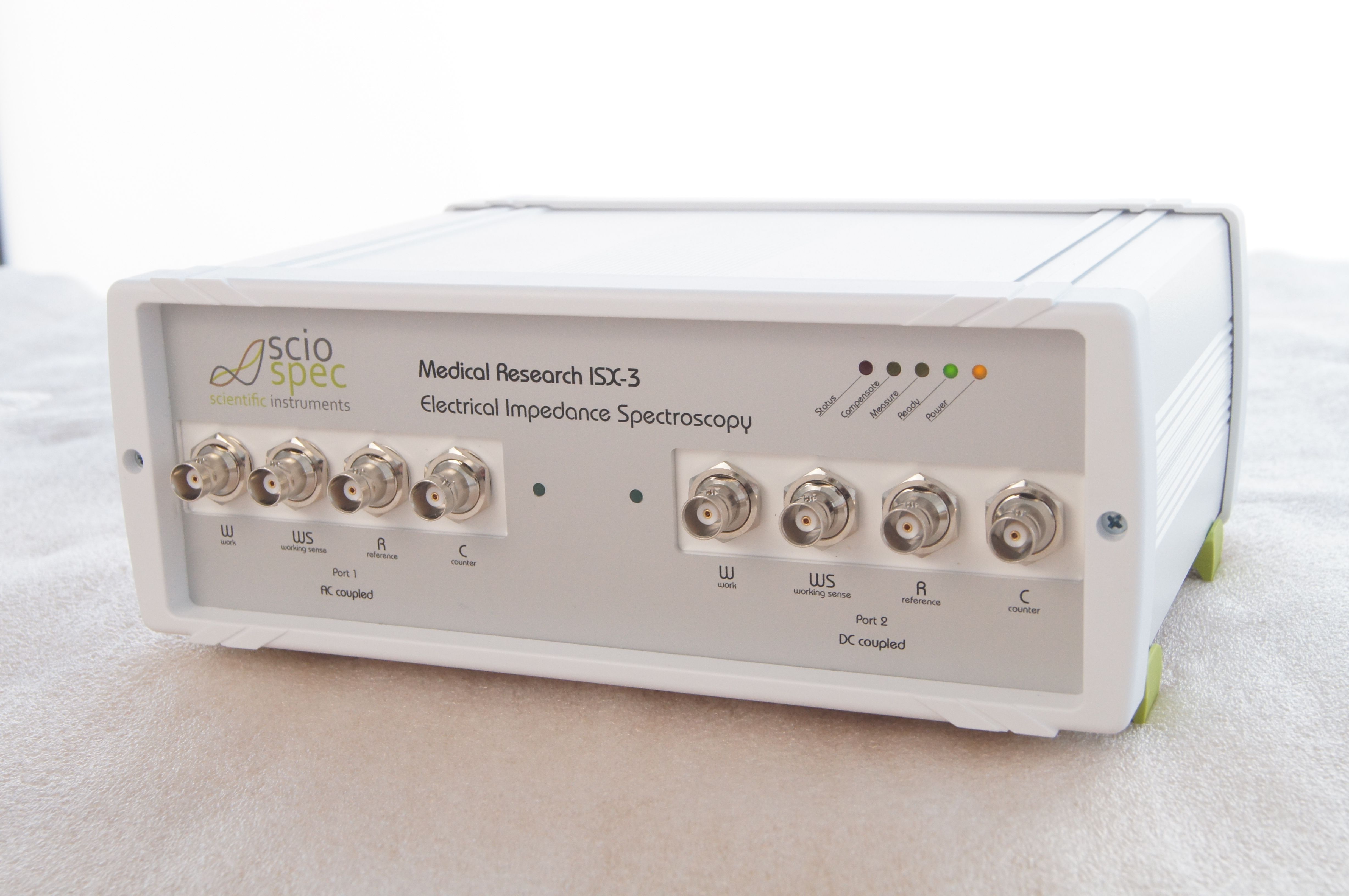

It bases on our ISX-3 impedance analyzer. It is equipped with Sciospec’s IF frontend with 4-port BNC interface supporting simple 2 point measurements, as well as 3 and 4 electrode configurations. Within the measurement range from 100 mHz to 10 MHz (extendable to 40 or 100 MHz) it covers a dynamic range of 300dB (mOhm…TOhm) with a base precision of 0.01%.
Additionally the Medical Research ISX-3 includes measures for enhanced electrical safety including medical grade isolation enabling a safe operation of the instrument in medical research settings.
Price: On request
| Type | Impedance analyzer |
| Dimensions - WxDxH / cm | 24.87 x 18.975 x 9.67 (44.9 x 28.626 x 15.541 with MUX32 or MUX64) |
| Weight / kg | 8 |
| Storage conditions | temperature range: -25 °C … 80 °C, relative humidity: ≤ 80% (noncondensing), The temperature gradient should not exceed 1 K/min to reach operating conditions. |
| Form Factor | Benchtop / Lab |
| Channels |
1, 32, 64
| Cell connection | 4 electrode |
| PC interface | USB, Ethernet |
| Power supply | 12 V DC (typ.), 42 W (max.), connector DC jack (type: Switchcraft PN: 712A) |
| Timing accuracy | 1% accuracy over specified temperature range |
| Operation conditions | temperature range: 0 °C ... 40°C, relative humidity: ≤ 80% (noncondensing), altitude: 0 m ... 3000 m |
| Max. Potential range (±) / V | 1 |
| Voltage resolution (output) | < 0.008% |
| Precision of measuremed potential | uncalibrated gain error 1% max., uncalibrated offset error 2%, max. electrometer amplifier input bias current: ±1.5 pA typ. (±50 pA max.), uncalibrated gain error: 0.1% max. for ± 10 mA range, 0.1% max. for ± 100 μA range, 1% max. for ± 1 μA range, 5% max. for ± 10 nA range, uncalibrated offset error 2% max., current amplifier input bias current: ±10 pA typ. (± 1 nA max.) |
| Current range | 4 ranges, ±100 μA to ±10 mA |
| Current Resolution (output) | < 0.008% |
| EIS Capability | Yes |
| EIS frequency range | 10 µHz to 10 MHz |
| Max. EIS frequency range / MHz | 10 |
| Min. EIS frequency range / µHz | 100000 |
| Accuracy Contour Plot | See images |
| AC frequency resolution | f < 10 kHz: < 6 mHz, 10 kHz ≤ f ≤ 100 kHz: < 24 mHz, f > 100 kHz: < 117 mHz |
| AC frequency precision | ±100 ppm (@ 25 °C) additional max. ±10 ppm over specified temperature range (e.g., at 0 °C) additional ±5 ppm during first year |
| Potentiostatic EIS Amplitude | 10 mV ... 1 V (peak amplitude) |
| Potentiostatic EIS Amplitude Resolution | 0.1 mV |
| Potentiostatic EIS Precision | ±1% typ. (±8% max.) |
| Galvanostatic EIS Amplitude | 10 μA ... 10 mA (peak amplitude) |
| Galvanostatic EIS Amplitude Resolution | 1 μA |
| Galvanostatic EIS Precision | ±1% typ. (±8% max.) |
