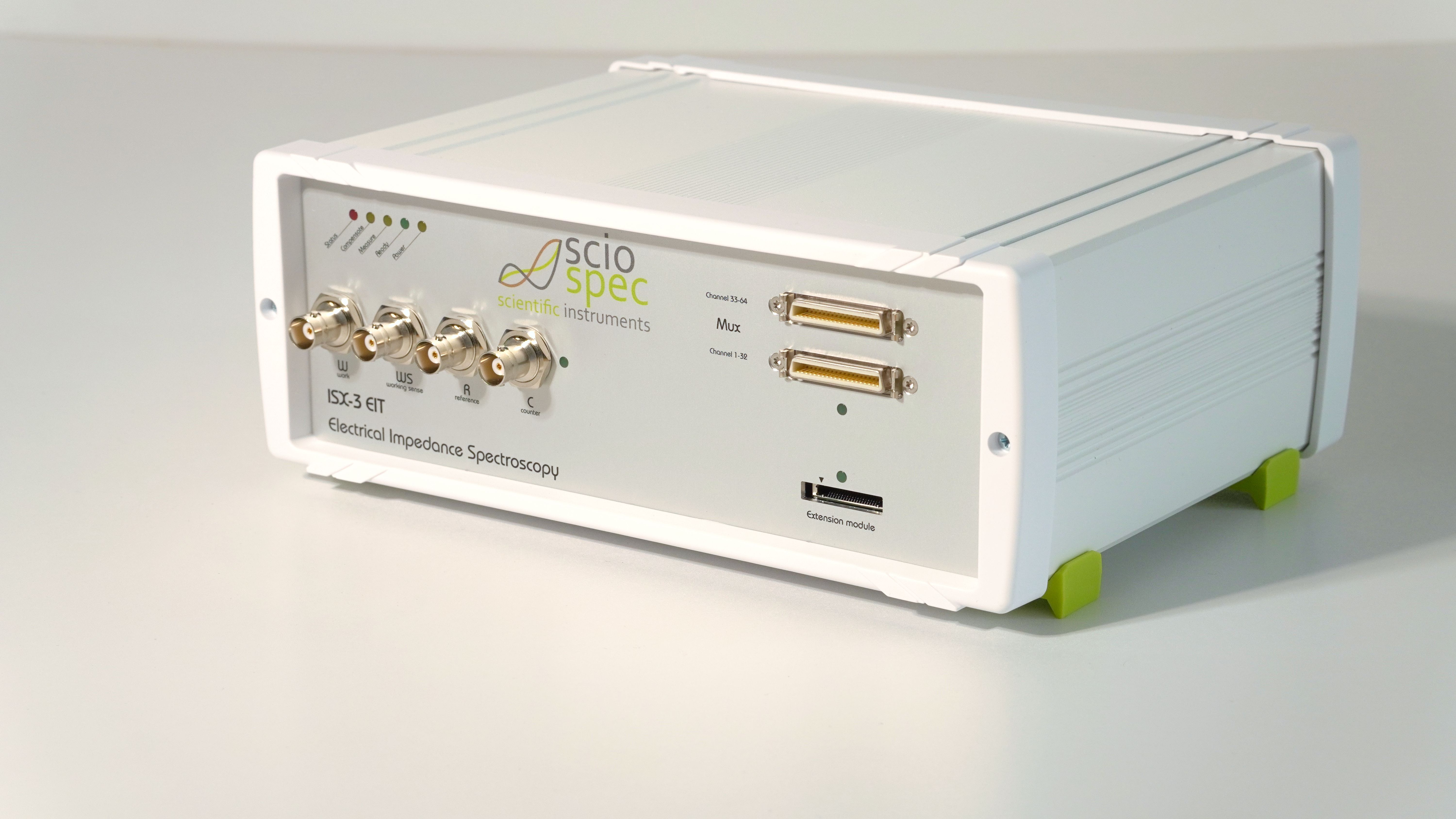

ISX-3-EIT Electrical Impedance Spectroscopy & Tomography system
Price: On Request
Description
EIS and EIT. In one system.
Electrical Impedance Spectroscopy & Tomography system
With the Sciospec ISX-3 EIT we bring together our core competencies in one system: Electrical Impedance at its best and Electrical Impedance Tomography.
The ISX-3 EIT is the perfect fit for researchers and industrial users facing an application where both EIS and EIT are useful. The system comes with proven EIS performance of the ISX-3 and also has quite some EIT capabilities.
Specifications
General
Type
Impedance analyzer
Dimensions - WxDxH / cm
24.867 x 19.32 x 9.71
Weight
2.5 kg
Power supply
100-240V AC (typ.), 50/60Hz, 60W (max)
Storage conditions
temperature range: -25 °C … 80 °C, relative humidity: ≤ 80% (noncondensing), The temperature gradient should not exceed 1 K/min to reach operating conditions.
PC connection details
USB, Ethernet
General Potentiostat
Cell connection
4 electrode, 3 electrode
Timing accuracy
1% accuracy over specified temperature range
Operation conditions
temperature range: 0 °C ... 40°C, relative humidity: ≤ 80% (noncondensing), altitude: 0 m ... 3000 m
Form factor
Benchtop
Potentiostatic
Applied potential resolution
< 0.008%
Precision of measured potential
uncalibrated gain error 1% max., uncalibrated offset error 2%, max. electrometer amplifier input bias current: ±1.5 pA typ. (±50 pA max.), uncalibrated gain error: 0.1% max. for ± 10 mA range, 0.1% max. for ± 100 μA range, 1% max. for ± 1 μA range, 5% max. for ± 10 nA range, uncalibrated offset error 2% max., current amplifier input bias current: ±10 pA typ. (± 1 nA max.)
Potential range
1 V peak (AC excitation amplitude)
Galvanostatic
Current measurement ranges
4 ranges, ±100 μA to ±10 mA
Applied current resolution
< 0.008%
Impedance
Max. EIS frequency range / MHz
10, 40, 100
Min. EIS frequency range / µHz
100000
Accuracy Contour Plot
See images
EIS frequency resolution
f < 10 kHz: < 6 mHz, 10 kHz ≤ f ≤ 100 kHz: < 24 mHz, f > 100 kHz: < 117 mHz
AC frequency precision
±100 ppm (@ 25 °C) additional max. ±10 ppm over specified temperature range (e.g., at 0 °C) additional ±5 ppm during first year
Potentiostatic EIS Amplitude
10 mV ... 1 V (peak amplitude)
Potentiostatic EIS Amplitude Resolution
0.1 mV
Potentiostatic EIS Precision
±1% typ. (±8% max.)
Galvanostatic EIS Amplitude
10 μA ... 10 mA (peak amplitude)
Galvanostatic EIS Amplitude Resolution
1 μA
Galvanostatic EIS Precision
±1% typ. (±8% max.)
EIS frequency range
100 mHz to 10 MHz
EIS configuration
Included
Multiplexer ports
32 or 64
