BMM FC EC 15mL - Bottom Magnetic Mount Front Contact Electrochemical Cell, 15mL

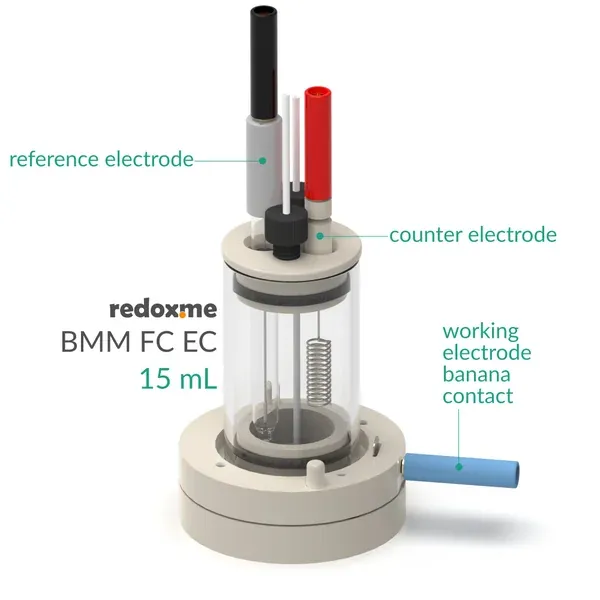

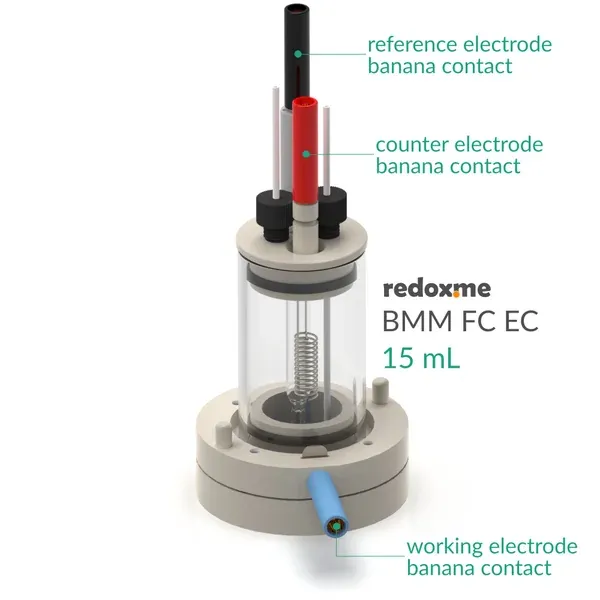

This is a static voltammetry cell with variants for different sample dimensions. The sample is loaded from the bottom via magnetic mount, while counter or/and reference electrodes are mounted in the lid as either 2-, or 3-electrode configuration. The cell is constructed with materials that are inert to the sample environment (glass and PEEK), and it can be used with FKM/EPDM O-rings or FFKM O-rings for aqueous or organic electrolyte requirements respectively. The construction is gas-tight and inert gas can be bubbled through the electrolyte to remove and exclude contaminants such as air or water. The cell is also available as a screw mount variant for applications where a magnetic assembly is not preferred.

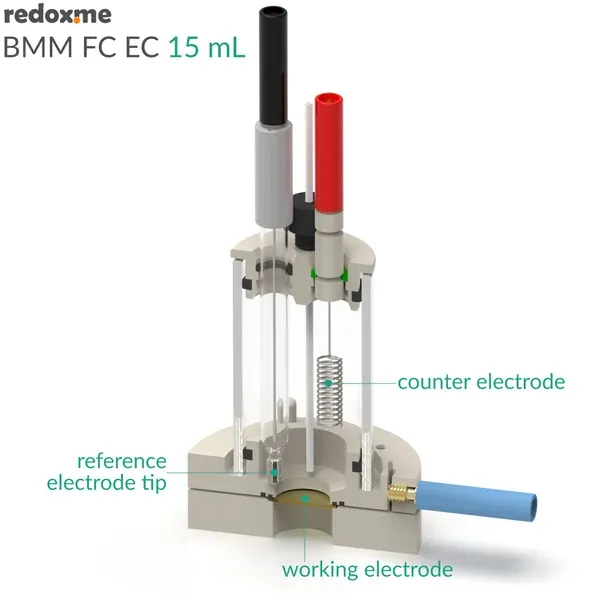

Application note The reference electrode tip should be placed close to the sample surface to ensure a negligible potential drop throughout the electrolyte solution during low-current experiments. The strength with which the magnets hold the sample is adjusted by adding or removing washers under the magnets, changing the distance between the magnets and with it the force of their attraction. Various auxiliary electrodes are suitable including metal wire, metal plate electrodes and carbon-based electrodes (graphite or glassy carbon). If a purge gas is used, stop the flow during experiments for better results.

Product includes

• 1 x lid (0001CPEMA)
• 1 x glass chamber (0002PGLMA)
• 1 x bottom casing
• 1 x sample mount
• 1 x tantalum contact
• 1 x plug
